Connector End View (C250) - IGNITION SWITCH
Connector:C250
Description
IGNITION SWITCH
Color
Harness
14K024
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC32 (BN-YE) | 18 | SWITCH - IGNITION # RUN | |
| 2 | * | * | Not Used | |
| 3 | CDC41 (WH-BN) | 22 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | |
| 4 | SBP01 (RD) | 18 | FUSE - 1 OR CIRCUIT BREAKER | |
| 5 | * | * | Not Used | |
| 6 | CDC33 (VT-GN) | 18 | SWITCH - IGNITION # RUN, ACCESSORY | |
| 7 | CDC35 (BU-WH) | 18 | SWITCH - IGNITION # START |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-957 |

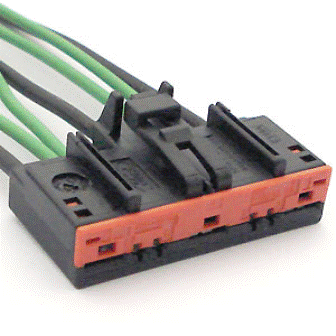

Service Part Number: 3U2Z-14S411-FMAB Gauge: 12 14 Pin material: Tin & Silver Cavities: 7 Vehicle Uses Switch - Ignition |
