Connector End View (C2353) - CLUTCH PEDAL POSITION (CPP) BOTTOM OF TRAVEL SWITCH
Connector:C2353
Description
CLUTCH PEDAL POSITION (CPP) BOTTOM OF TRAVEL SWITCH
Color
Harness
14K012
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE903 (BU-OG) | 20 | SWITCH - CLUTCH PEDAL POSITION # BOTTOM OF TRAVEL (CPP-BT) | |
| 2 | GD187 (BK-GN) | 20 | GROUND - SHOCK TOWER LEFT BRACKET #1 |

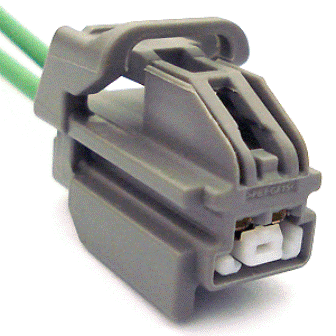

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-965 |
Service Part Number: 3U2Z-14S411-AEB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses Actuator - Door Lock - Decklid/Liftgate Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Module - Heated Seat Motor - Adjustable Pedal Motor - Decklid / Liftgate Sensor - Air Charge Temperature Sensor - EATC In Car Temperature Speaker - Subwoofer Switch - Adjustable Pedal Switch - Brake Deactivation Switch - Brake Pressure Switch - Clutch Pedal Position Switch - Stop Lamp Switch - Third Row Power Folding Seat |
