Supplemental Restraint System
Supplemental Restraint System

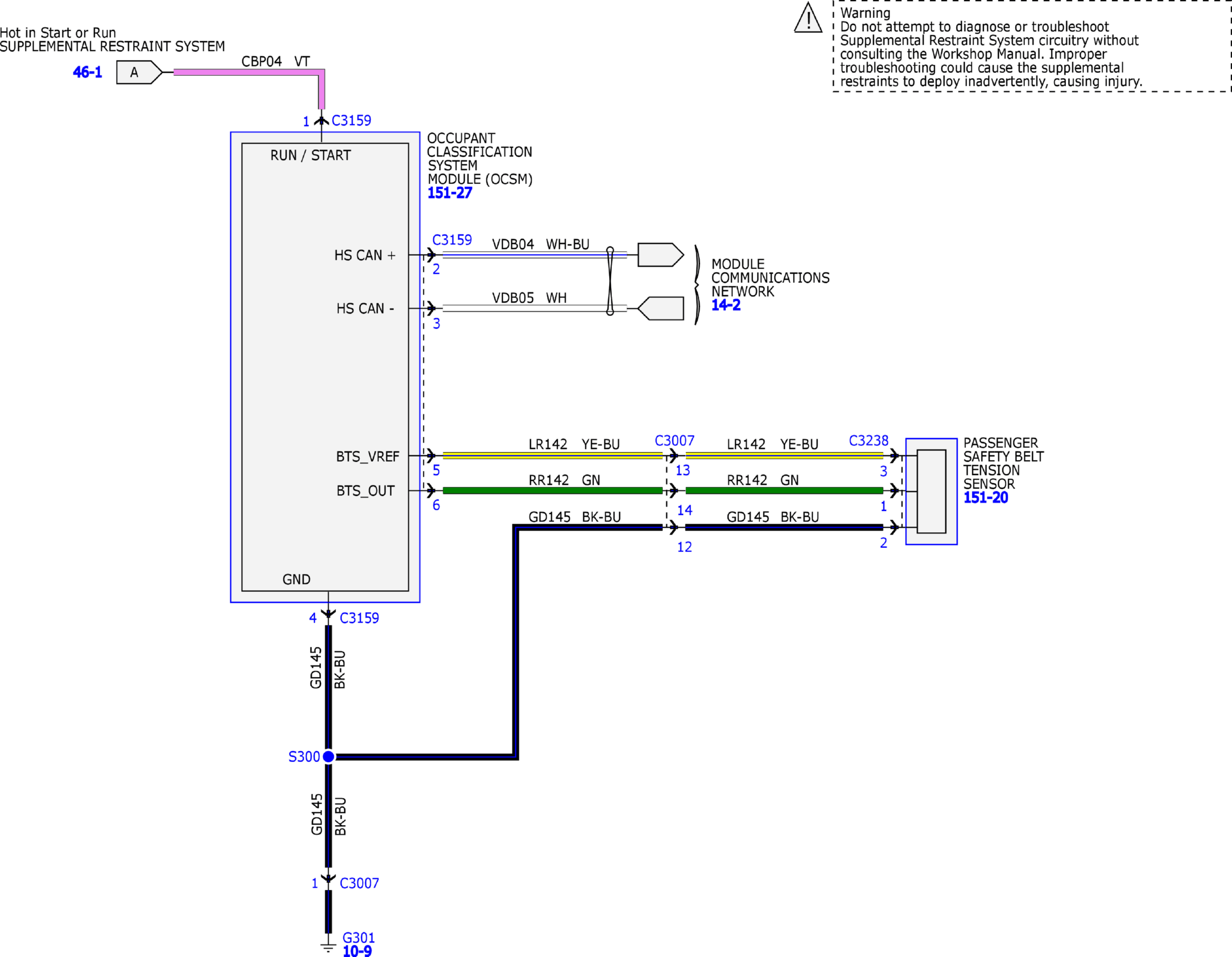

Fig 1: Supplemental Restraint System Wiring Diagram (1 of 7)
Courtesy of FORD MOTOR COMPANY

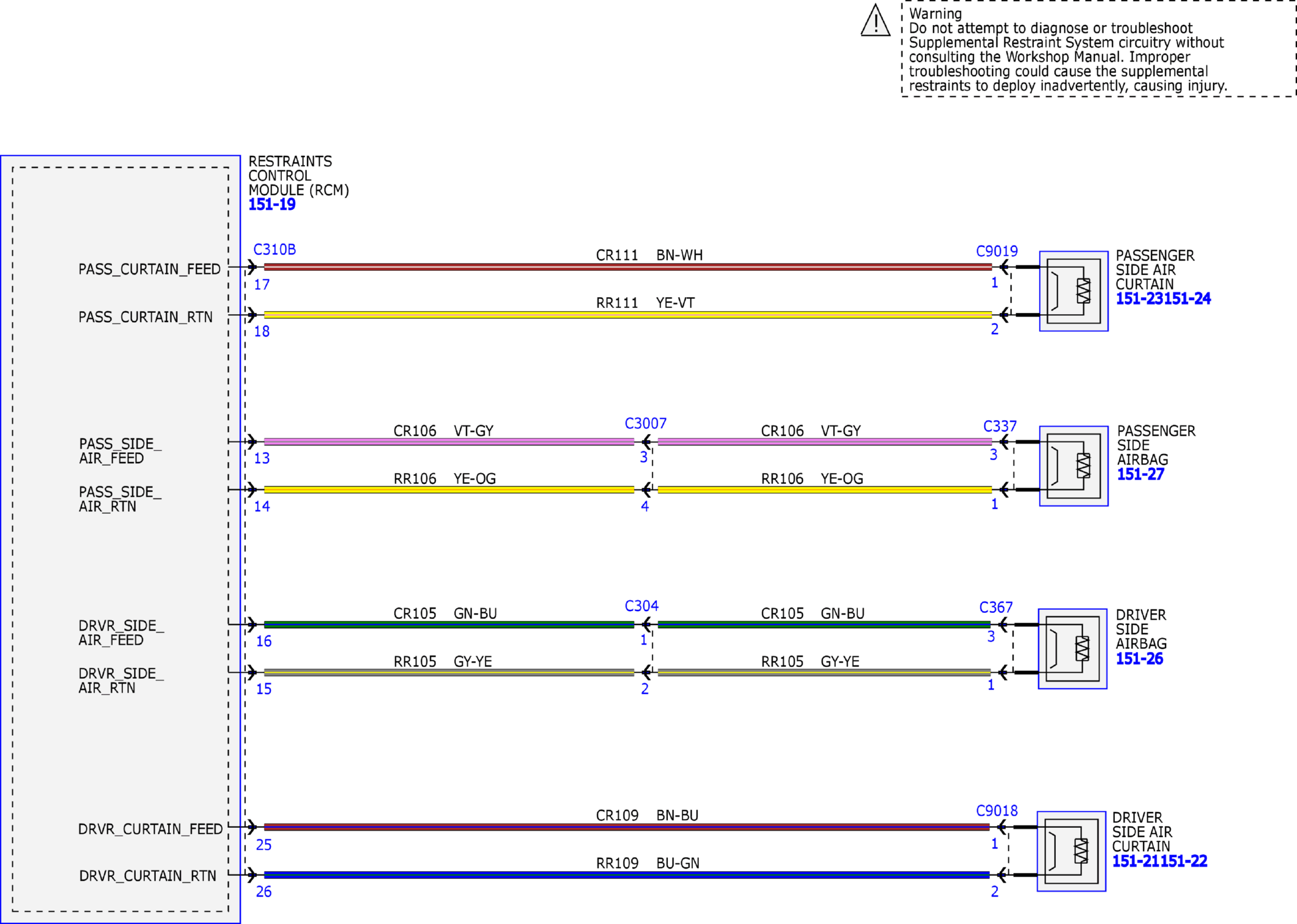

Fig 2: Supplemental Restraint System Wiring Diagram (2 of 7)
Courtesy of FORD MOTOR COMPANY

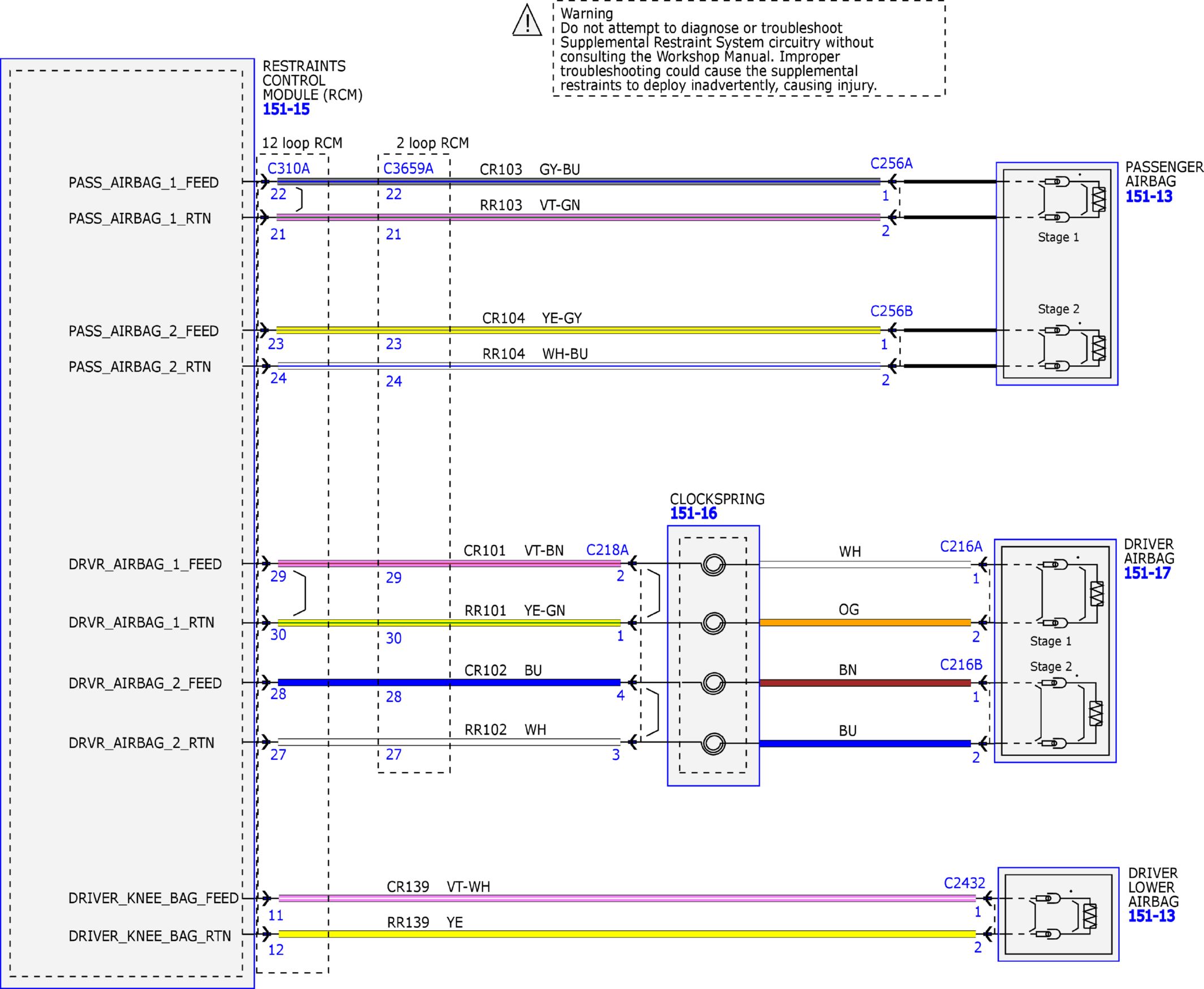

Fig 3: Supplemental Restraint System Wiring Diagram (3 of 7)
Courtesy of FORD MOTOR COMPANY

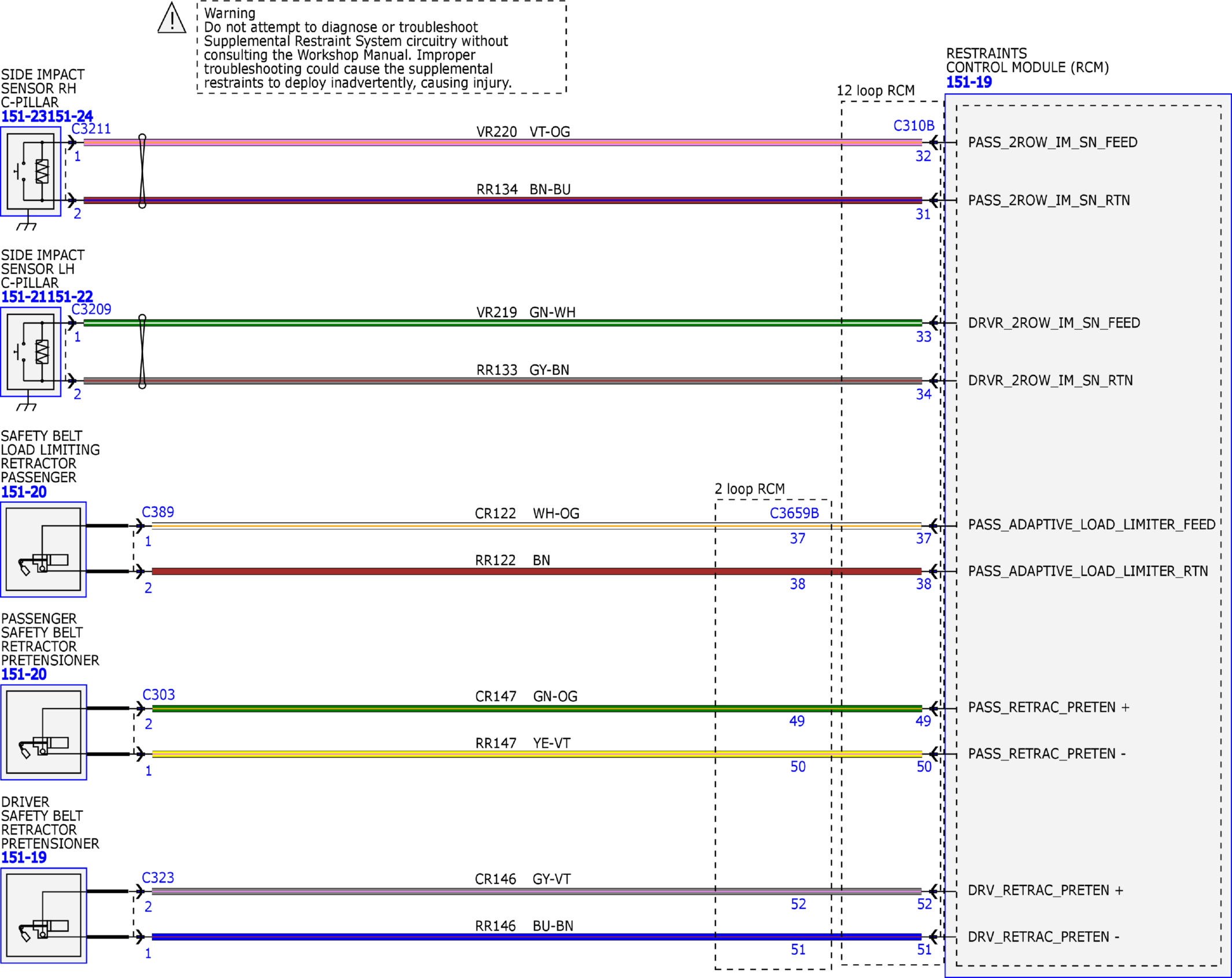

Fig 4: Supplemental Restraint System Wiring Diagram (4 of 7)
Courtesy of FORD MOTOR COMPANY

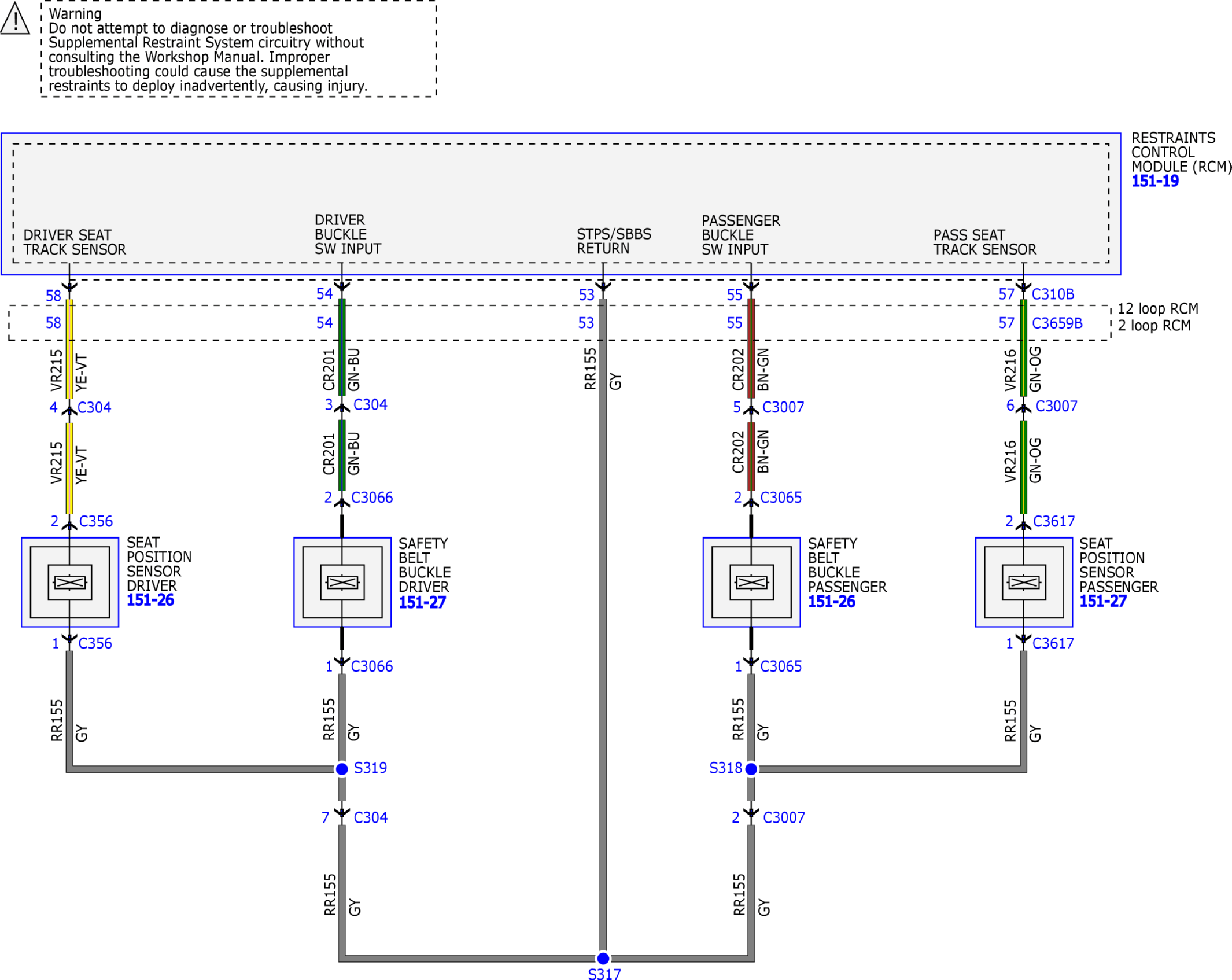

Fig 5: Supplemental Restraint System Wiring Diagram (5 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 6: Supplemental Restraint System Wiring Diagram (6 of 7)
Courtesy of FORD MOTOR COMPANY
Fig 7: Supplemental Restraint System Wiring Diagram (7 of 7)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
