Connector End View (C389) - SAFETY BELT LOAD LIMITING RETRACTOR PASSENGER
Connector:C389
Description
SAFETY BELT LOAD LIMITING RETRACTOR PASSENGER
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR122 (WH-OG) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD + | |
| 2 | RR122 (BN) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER FRONT PASSENGER OUTBOARD - |

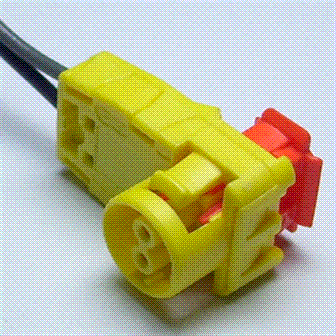

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1467 |
Service Part Number: BU2Z-14S411-BKB Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Pretensioner - Seat Belt (Driver) Pretensioner - Seat Belt (Passenger) Squib - Airbag (Driver) Squib - Airbag (Passenger) |
| Pigtail Kit Part Number WPT-1227 |
Service Part Number: BU2Z-14S411-BKA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger) |
