Connector End View (C3238) - PASSENGER SAFETY BELT TENSION SENSOR

Connector:C3238

Description

PASSENGER SAFETY BELT TENSION SENSOR

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR142 (GN)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD -
2	GD145 (BK-BU)	20	GROUND - PILLAR B RIGHT (OBSOLETE)
3	LR142 (YE-BU)	20	CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD +

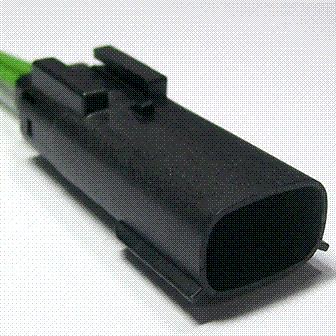

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1180

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-ASA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Speaker - Tweeter - RH - Rear
