Connector End View (C3211) - SIDE IMPACT SENSOR RH C-PILLAR

Connector:C3211

Description

SIDE IMPACT SENSOR RH C-PILLAR

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR220 (VT-OG)	18	SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE
2	RR134 (BN-BU)	18	CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE -

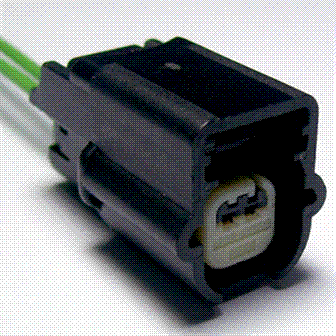

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Crash (Engine Compartment)

Sensor - Seat Track Position

Sensor - Side Impact

Solenoid - Down Shift

Solenoid - Torque Control Coupling

Valve - Heated PCV

Valve - Heater Core Shut Off

Valve - Transmission Fluid Warmer
