Connector End View (C3159) - OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM)
Connector:C3159
Description
OCCUPANT CLASSIFICATION SYSTEM MODULE (OCSM)
Color
Harness
14A698
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP04 (VT) | 20 | FUSE - 4 OR CIRCUIT BREAKER | |
| 2 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 3 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 4 | GD145 (BK-BU) | 20 | GROUND - PILLAR B RIGHT (OBSOLETE) | |
| 5 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + | |
| 6 | RR142 (GN) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD - |
| Available Pigtail Kits | |

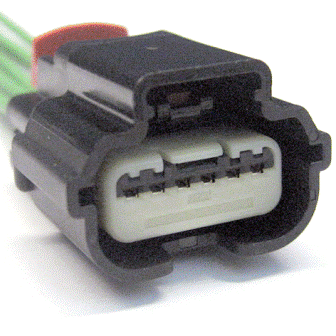

| Pigtail Kit Part Number WPT-1338 |
Service Part Number: 9U2Z-14S411-BB Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Occupant Classification Sensor - Acceleration Pedal Position Sensor - Transmission Range Switch - Door Ajar / Interior Lamp |

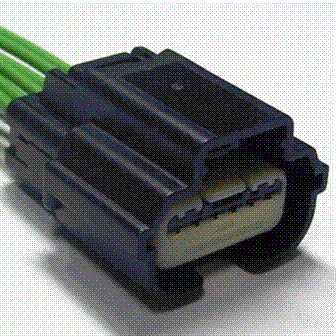

| Pigtail Kit Part Number WPT-929 |
Service Part Number: 9U2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Sensor - Acceleration Pedal Position Switch - Door Ajar / Interior Lamp |
