Connector End View (C303) - PASSENGER SAFETY BELT RETRACTOR PRETENSIONER

Connector:C303

Description

PASSENGER SAFETY BELT RETRACTOR PRETENSIONER

Color

Harness

14A005

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR147 (YE-VT)	20	CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD -
2	CR147 (GN-OG)	20	CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD +

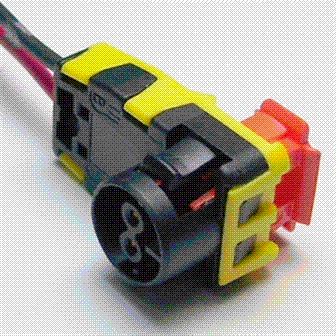

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1225

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BHA

Gauge:

Pin material:

FCI - Airbag

Cavities:

Vehicle Uses

Airbag - Side Curtain

Pretensioner - Seat Belt (Driver)

Pretensioner - Seat Belt (Passenger)

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
