Connector End View (C216B) - DRIVER AIRBAG
Connector:C216B
Description
DRIVER AIRBAG
Color
BK-YE
Harness
14A664
Base Part #
74043B13
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (BN) | * | CTRL MOD. - AIR BAG DRIVER 2 | |
| 2 | * (BU) | * | CTRL MOD. - AIR BAG DRIVER 2 |

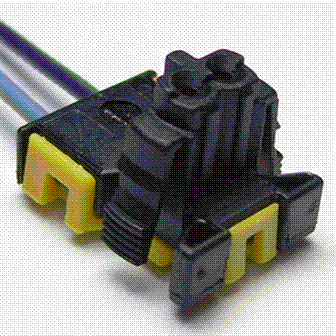

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1230 |
Service Part Number: BU2Z-14S411-BPA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Airbag - Side Curtain Squib - Airbag (Passenger) |
