Coolant Outlet Connector: Installation

WARNING: This page is about a different variant/trim than selected.

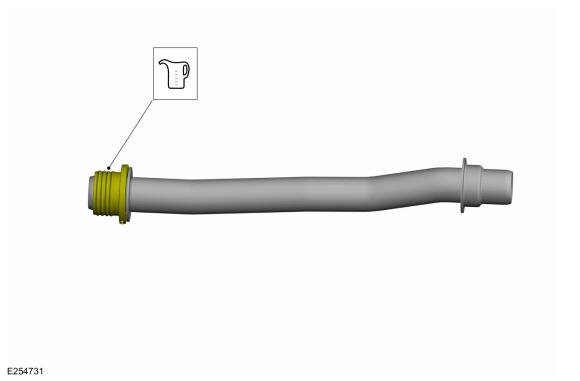

1.
- Lubricate the inside and outside diameter of the grommet with clean engine coolant.
  Material: Motorcraft ® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
- Install the grommet.

GFD118240

Courtesy of FORD MOTOR COMPANY

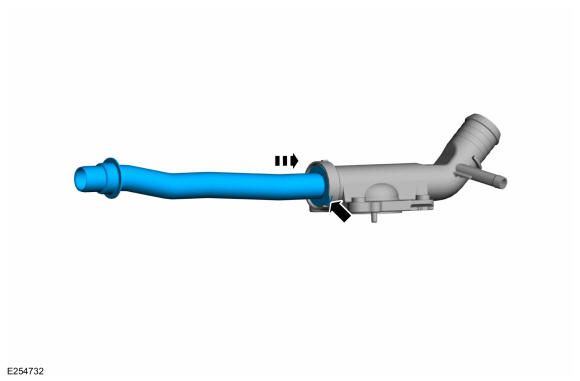

2.

NOTE: Verify the locating tab is aligned to the coolant outlet connector.

Connect the coolant inlet pipe.

GFD118241

Courtesy of FORD MOTOR COMPANY

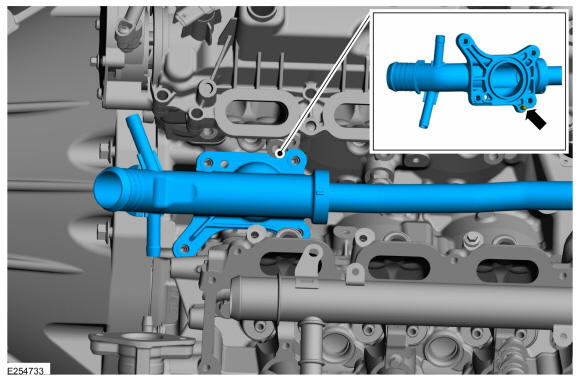

3.

Place the coolant outlet connector and inlet pipe assembly into the intake valley. Verify the locator dowel is fully seated into the engine block.

GFD118242

Courtesy of FORD MOTOR COMPANY

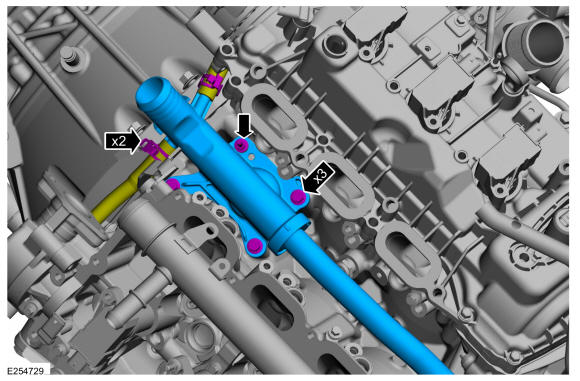

4.

Install and tighten the fasteners. Connect the coolant hoses and install the hose clamps. Use the General Equipment: Hose Clamp Remover/Installer
Torque: 89 lb.in (10 Nm)

GFD118238

Courtesy of FORD MOTOR COMPANY

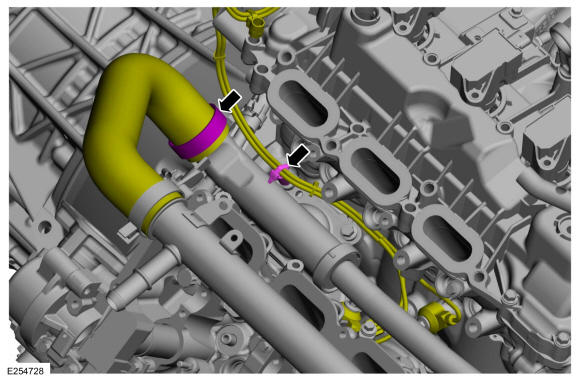

5.

Connect the coolant hose and install the hose clamp. Connect the knock sensor harness retainer to the fastener stud. Use the General Equipment: Hose Clamp Remover/Installer

GFD118237

Courtesy of FORD MOTOR COMPANY

6.

Install the fuel rail. Refer to: Fuel Rail .

7.

Install the coolant pump. Refer to: Coolant Pump .
