Starting System
Starting System

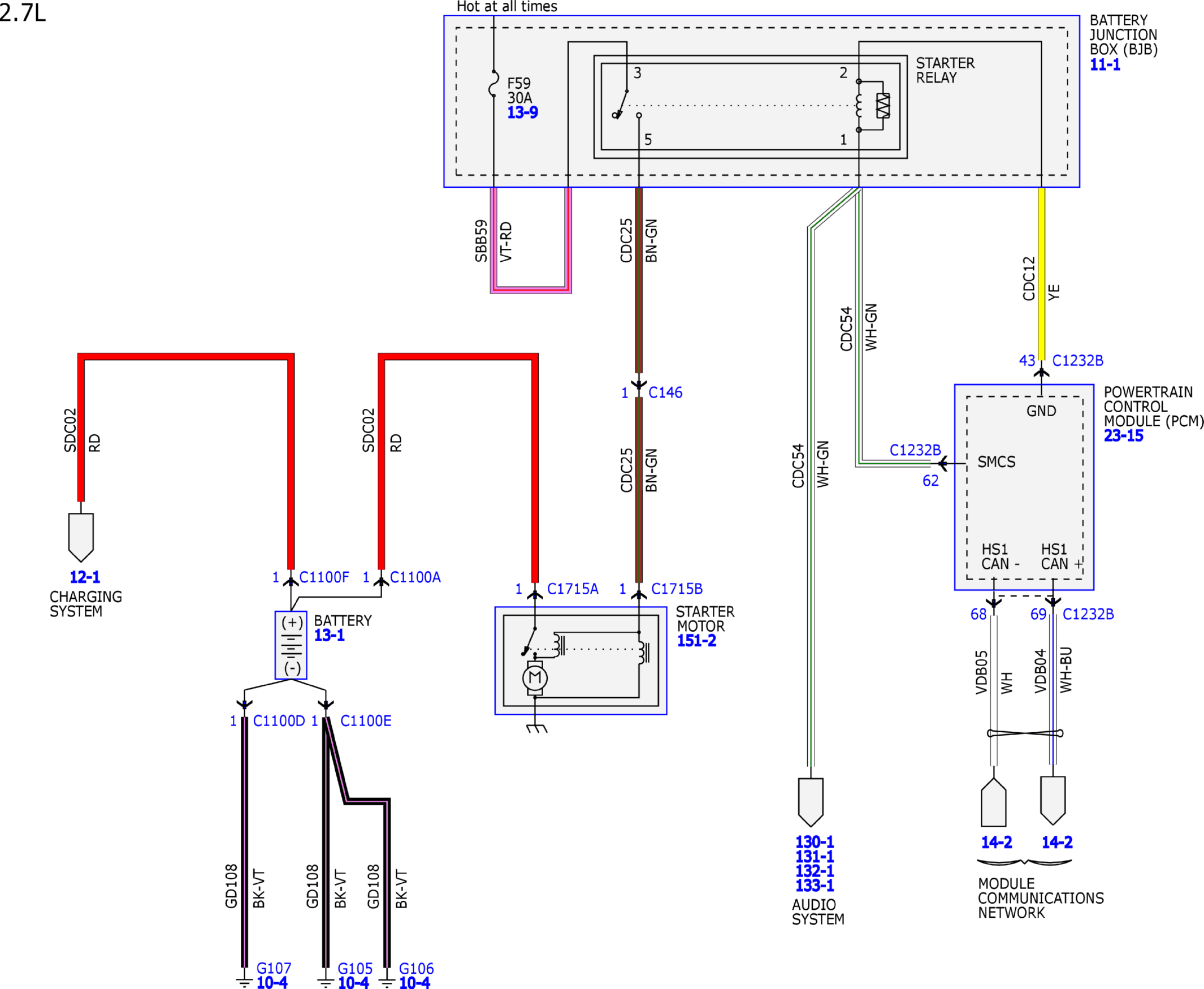

Fig 1: Starting System Wiring Diagram (1 of 5)
Courtesy of FORD MOTOR COMPANY

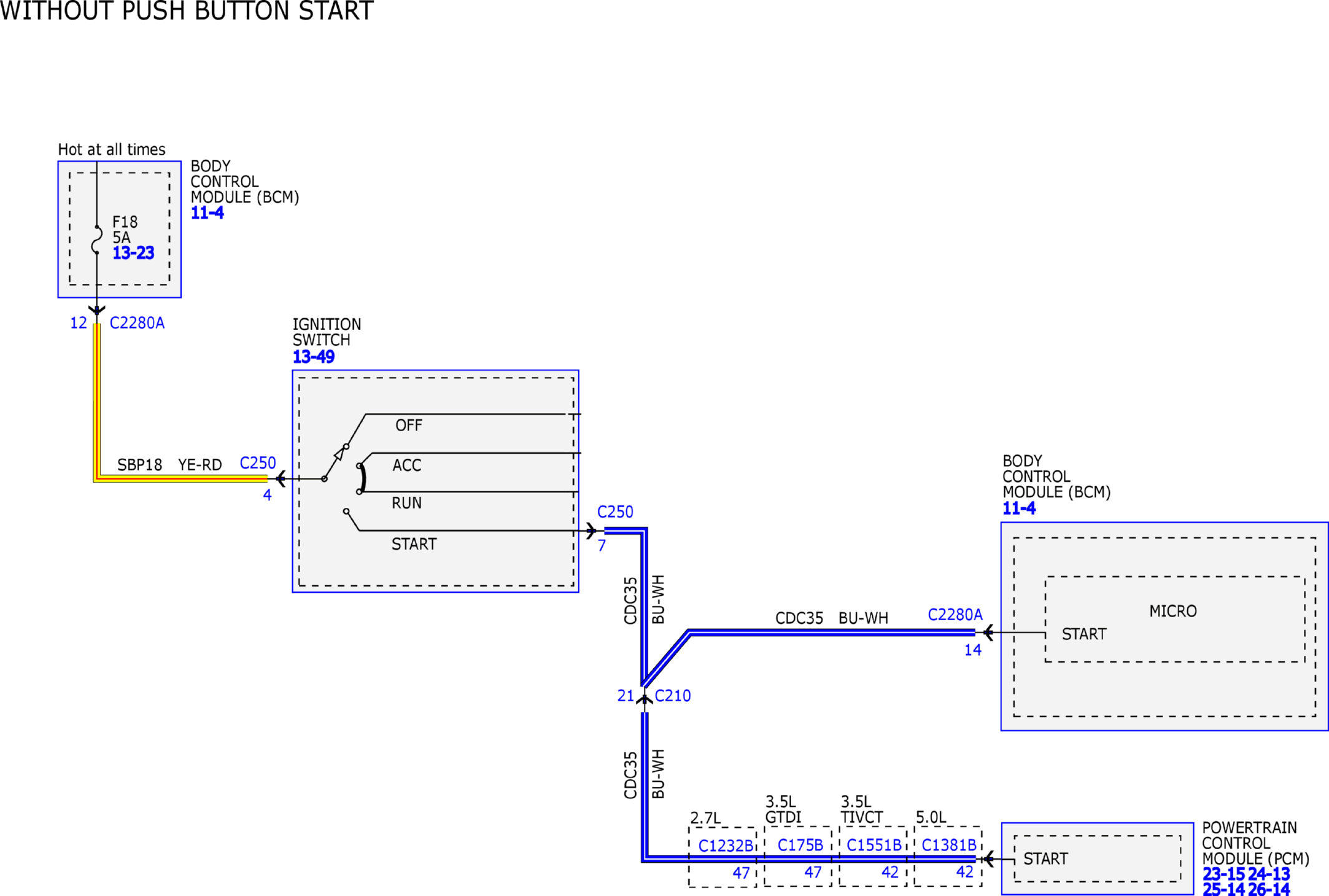

Fig 2: Starting System Wiring Diagram (2 of 5)
Courtesy of FORD MOTOR COMPANY

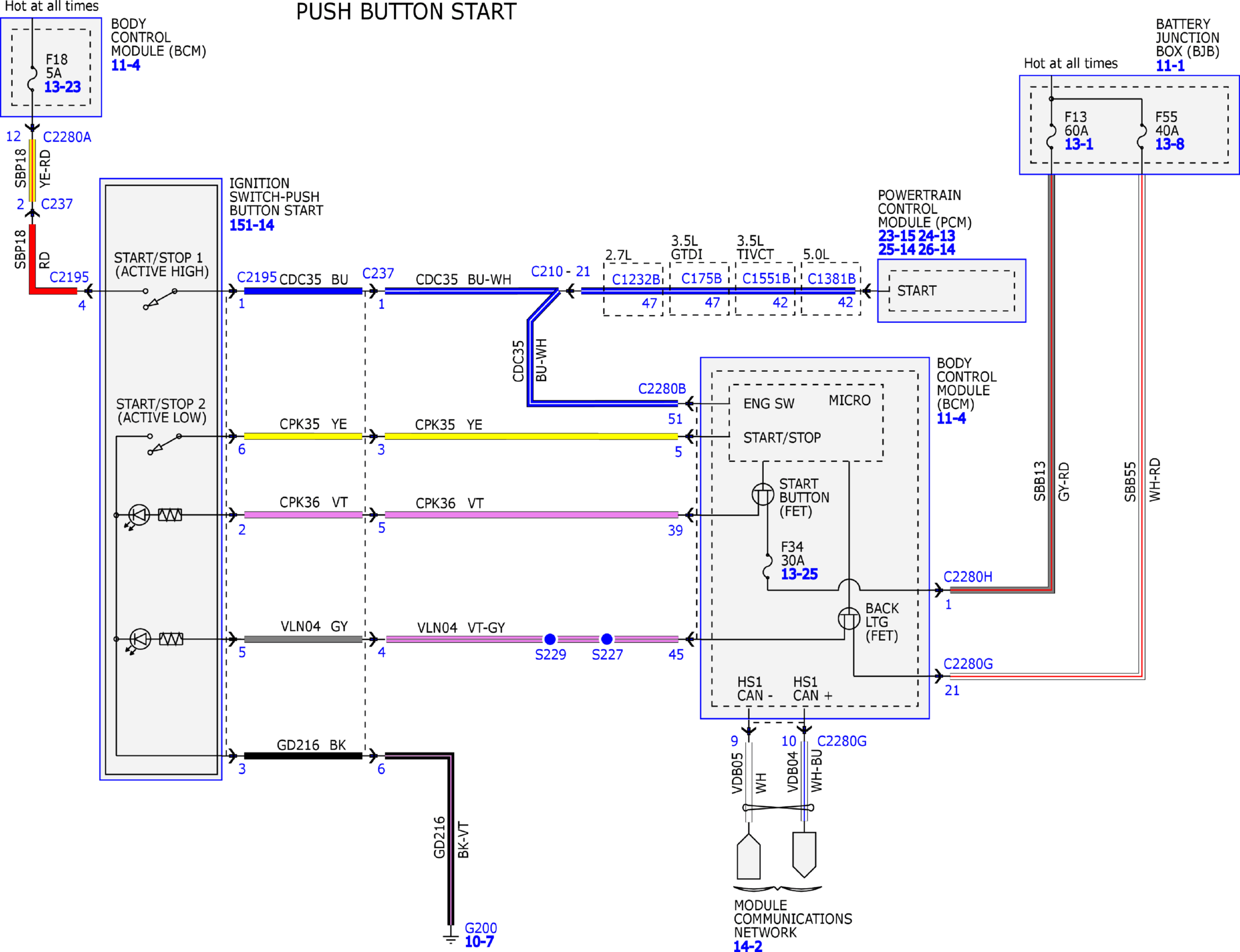

Fig 3: Starting System Wiring Diagram (3 of 5)
Courtesy of FORD MOTOR COMPANY

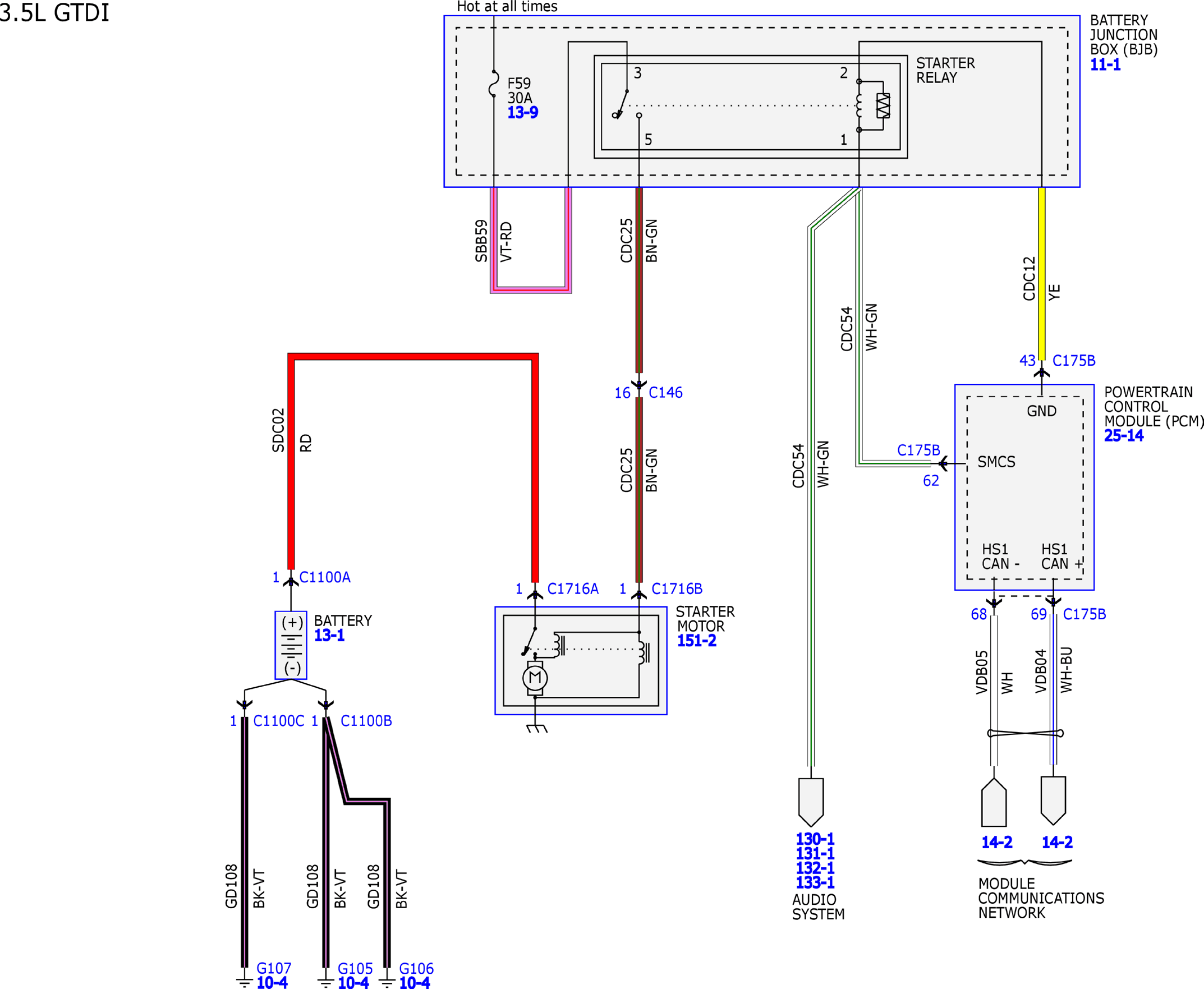

Fig 4: Starting System Wiring Diagram (4 of 5)
Courtesy of FORD MOTOR COMPANY

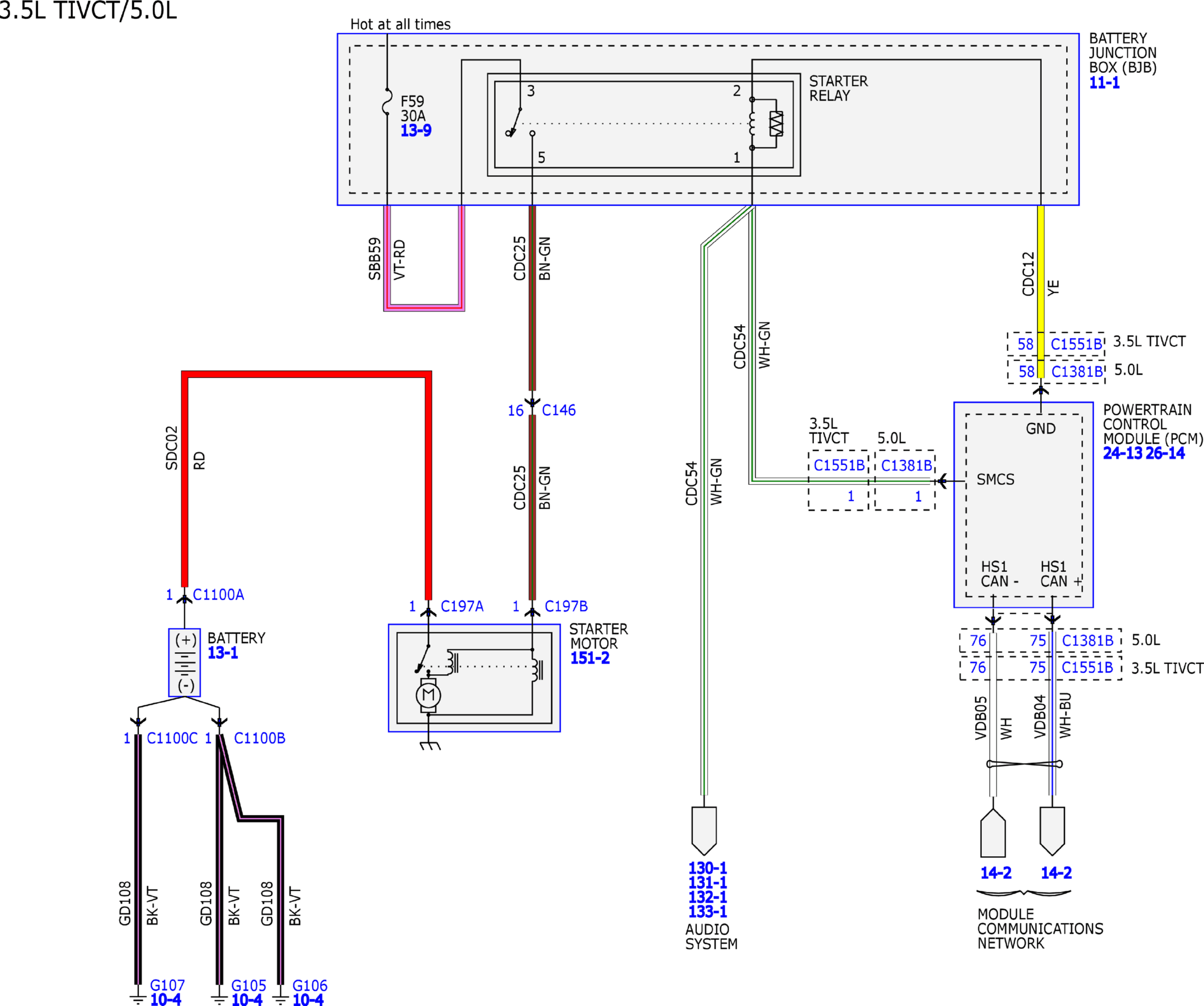

Fig 5: Starting System Wiring Diagram (5 of 5)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
