Parking Aid

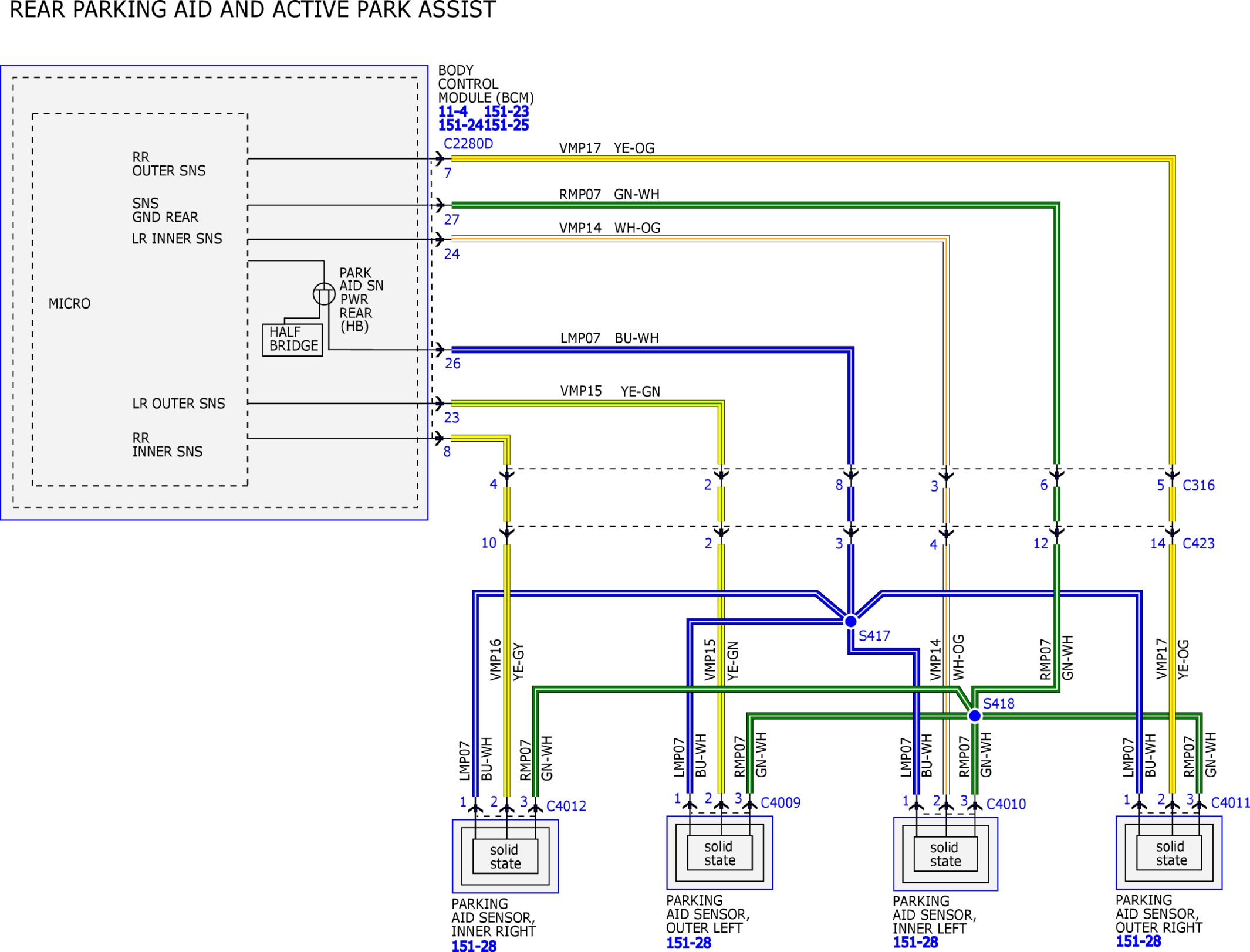

Fig 1: Parking Aid Wiring Diagram (1 of 9)
GFDW46475Courtesy of FORD MOTOR COMPANY

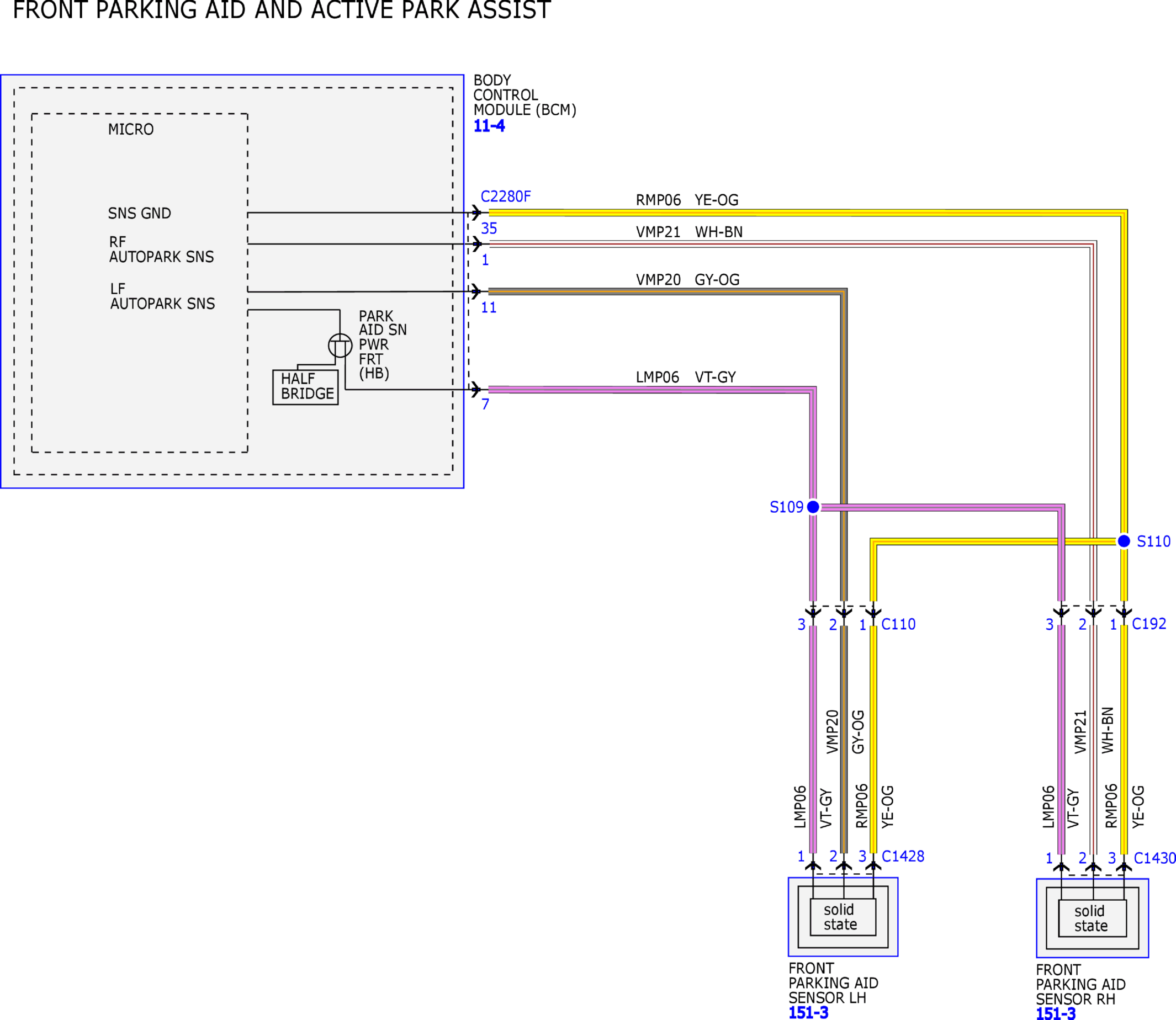

Fig 2: Parking Aid Wiring Diagram (2 of 9)
GFDW46476Courtesy of FORD MOTOR COMPANY

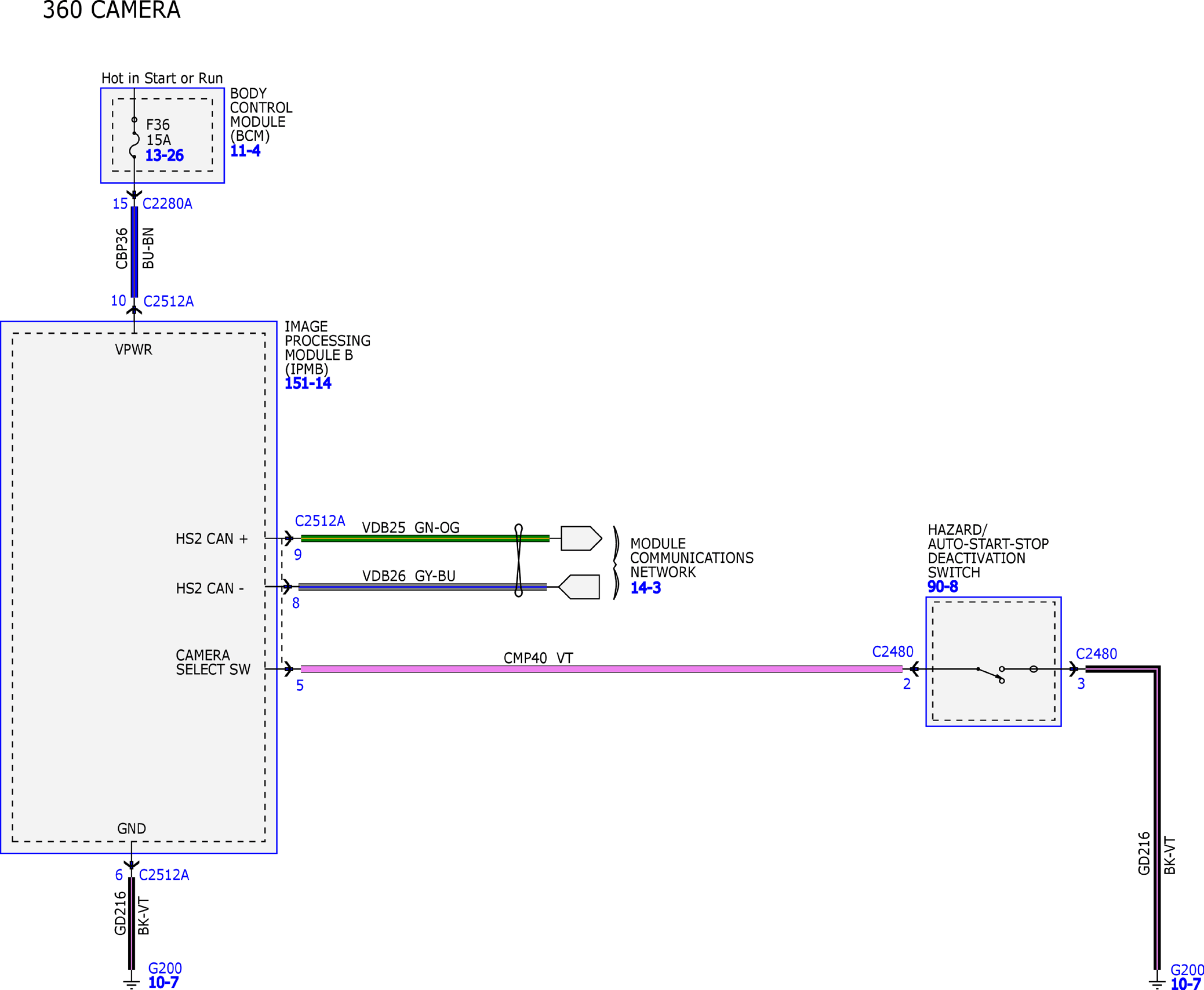

Fig 3: Parking Aid Wiring Diagram (3 of 9)
GFDW46477Courtesy of FORD MOTOR COMPANY

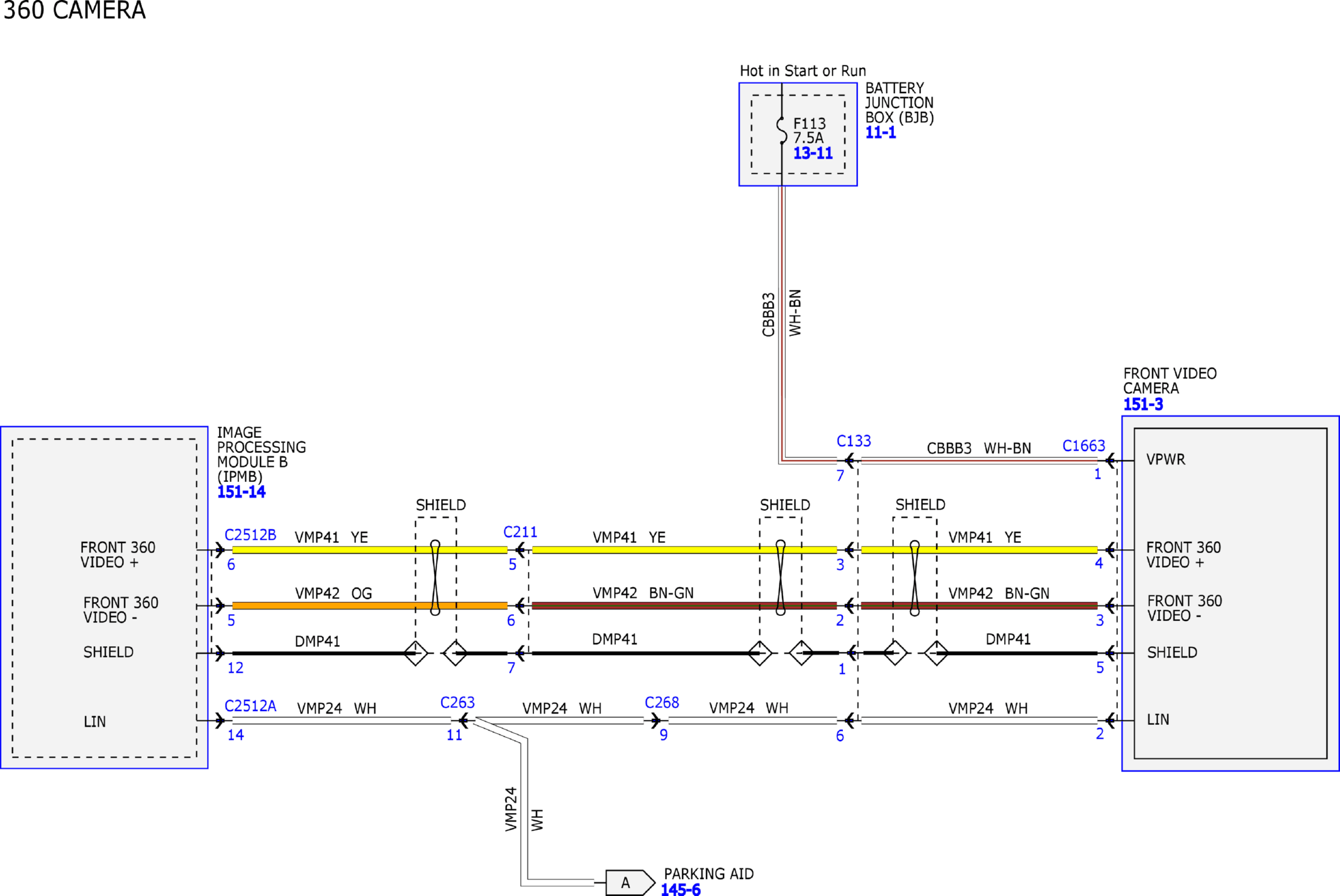

Fig 4: Parking Aid Wiring Diagram (4 of 9)
GFDW46478Courtesy of FORD MOTOR COMPANY

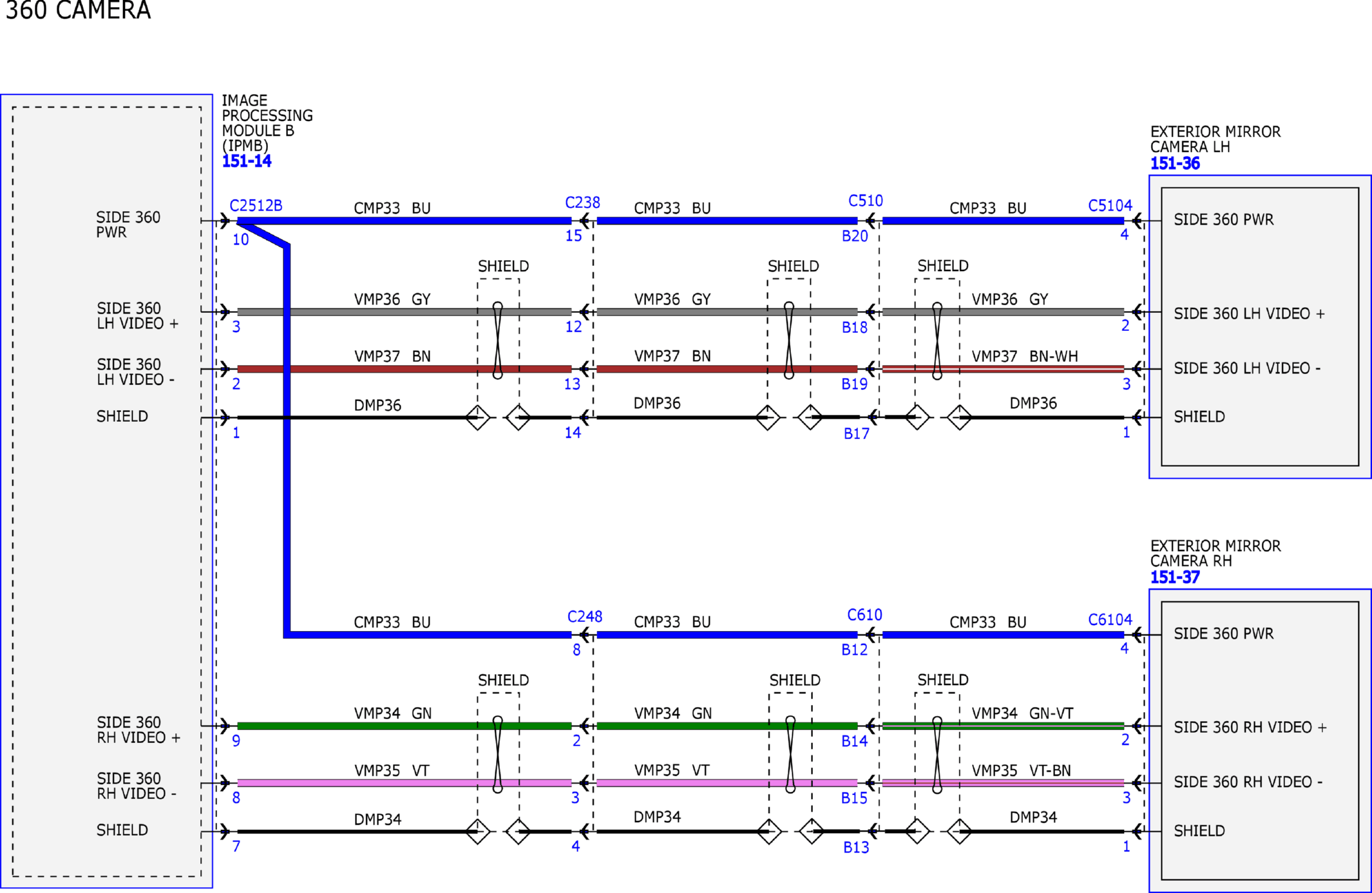

Fig 5: Parking Aid Wiring Diagram (5 of 9)
GFDW46479Courtesy of FORD MOTOR COMPANY

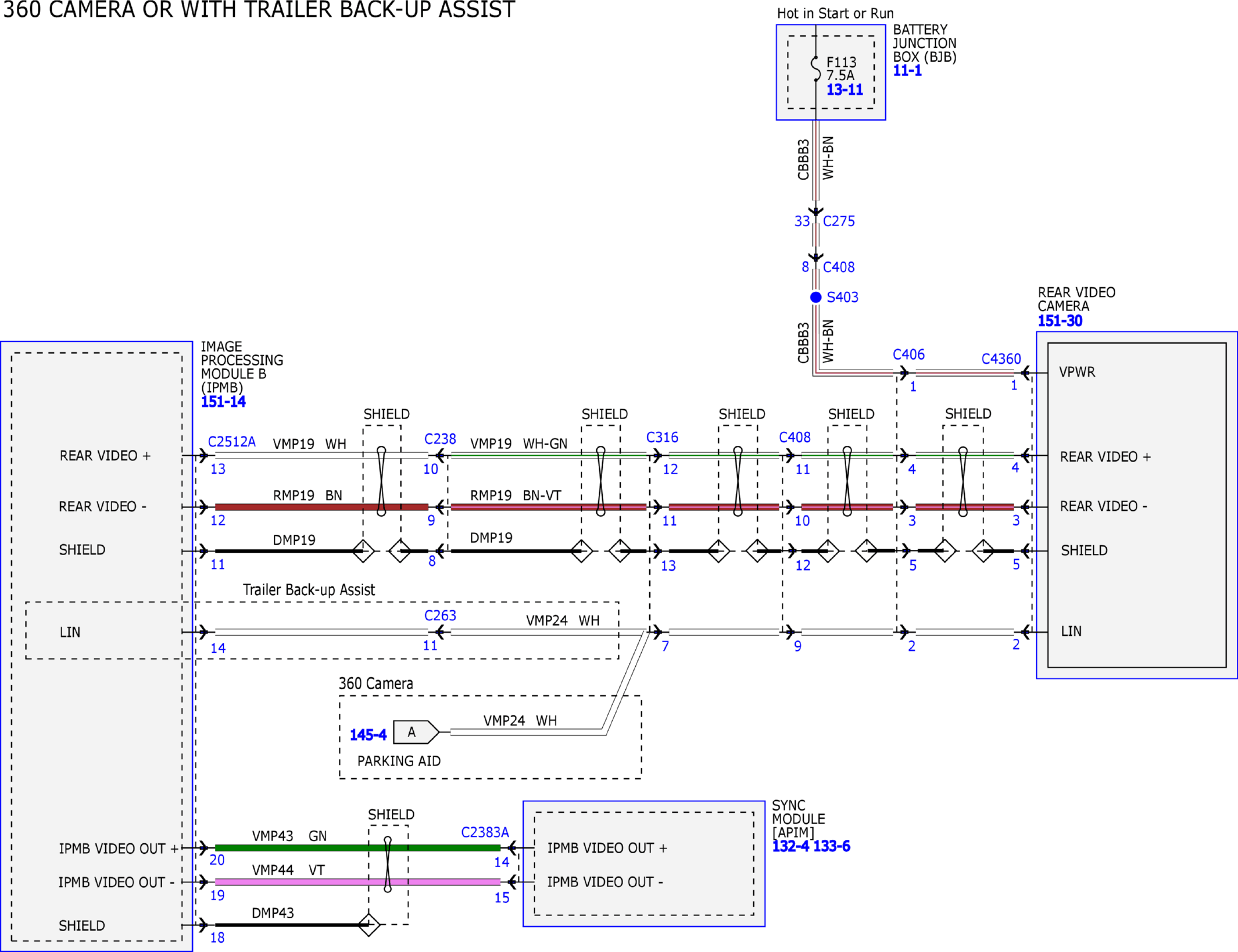

Fig 6: Parking Aid Wiring Diagram (6 of 9)
GFDW46480Courtesy of FORD MOTOR COMPANY

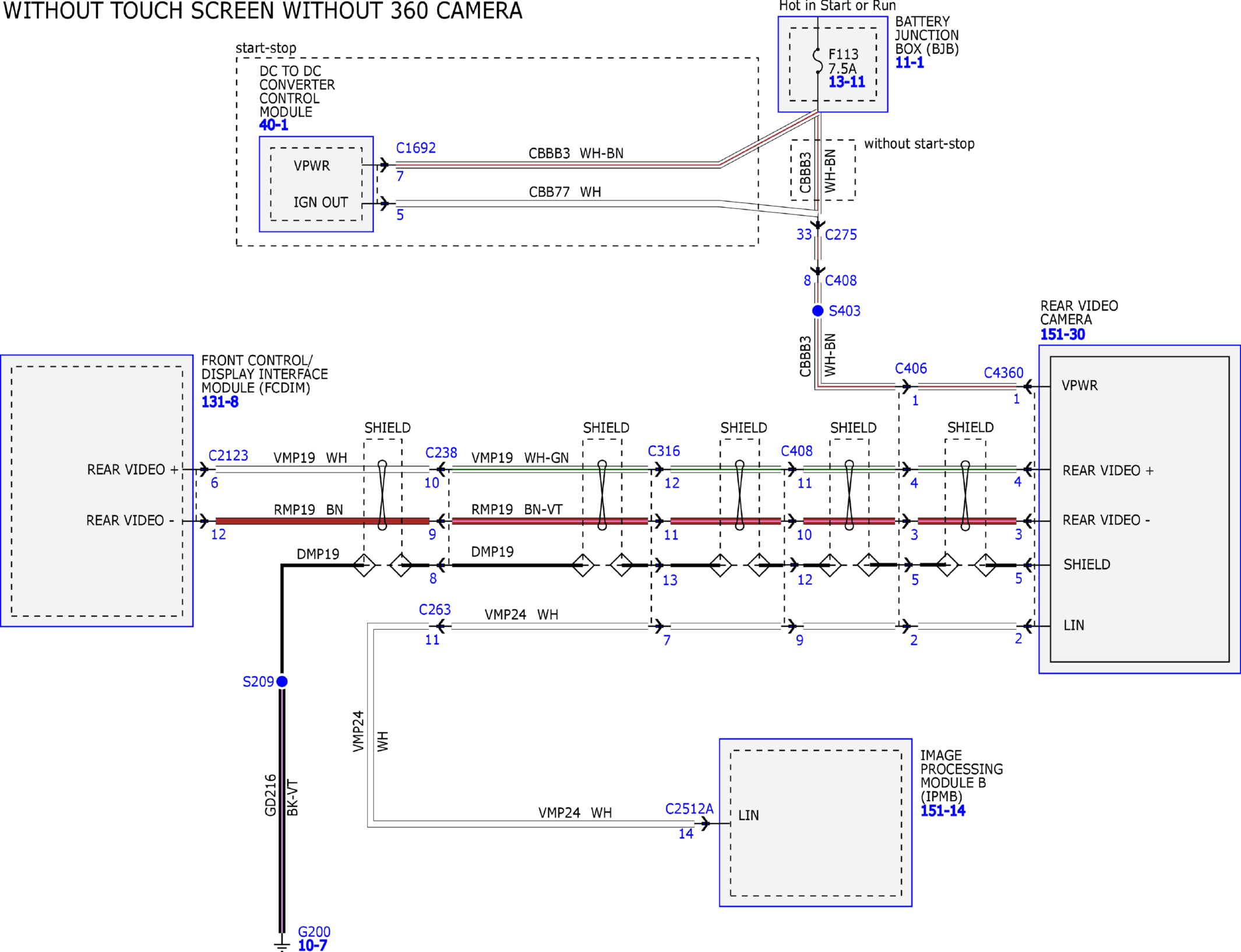

Fig 7: Parking Aid Wiring Diagram (7 of 9)
GFDW46481Courtesy of FORD MOTOR COMPANY

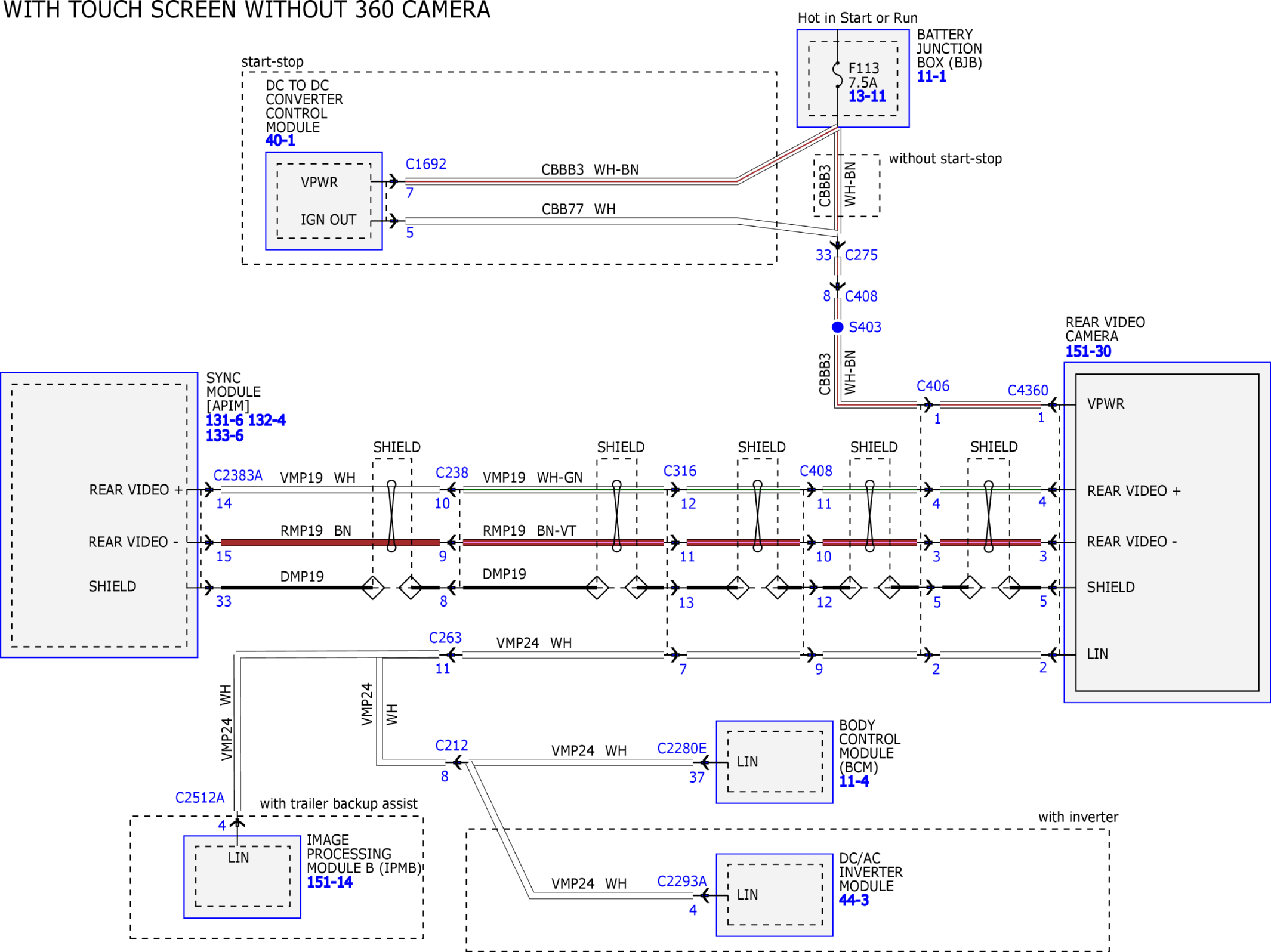

Fig 8: Parking Aid Wiring Diagram (8 of 9)
GFDW46482Courtesy of FORD MOTOR COMPANY

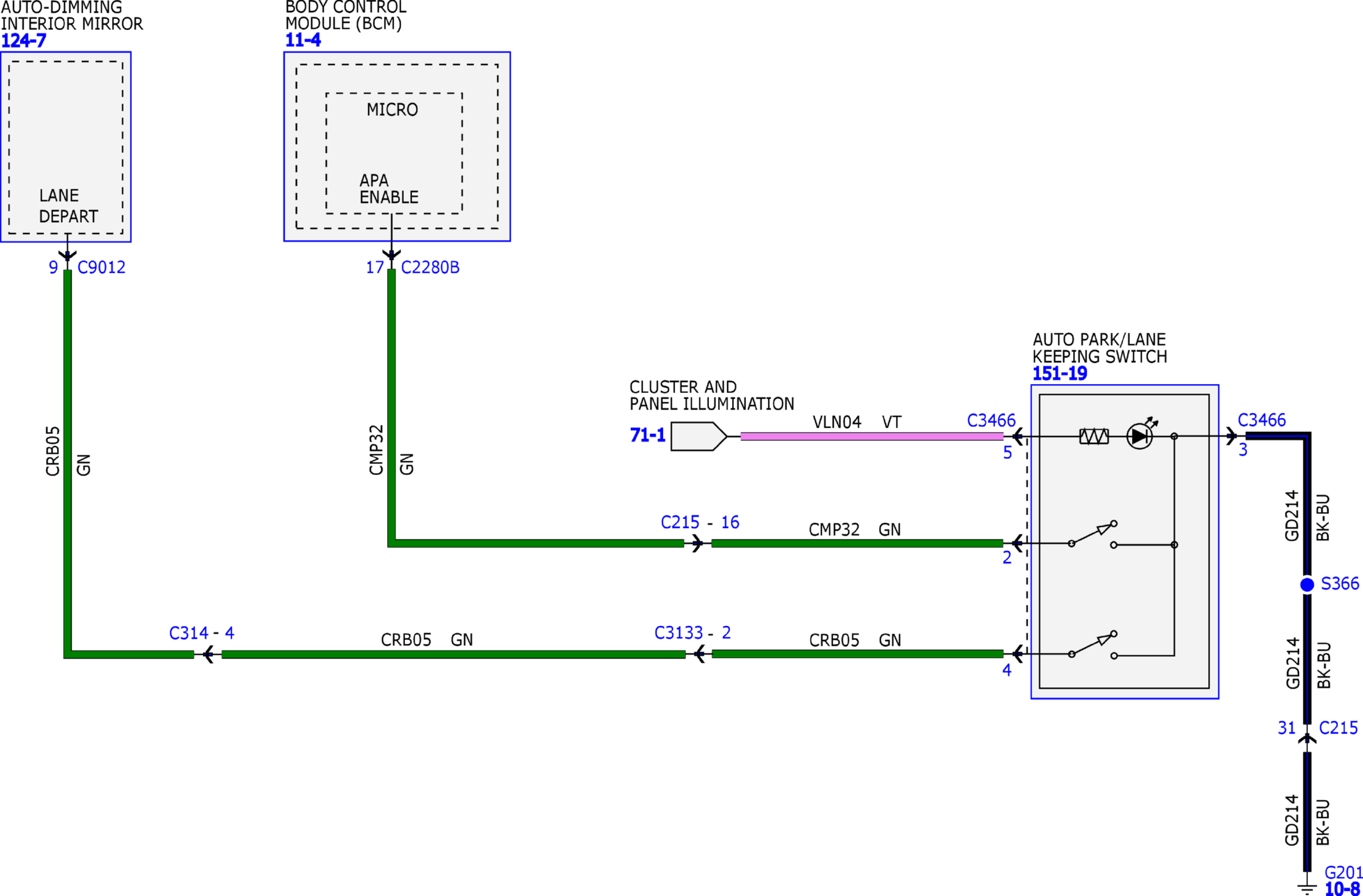

Fig 9: Parking Aid Wiring Diagram (9 of 9)
GFDW46483Courtesy of FORD MOTOR COMPANY
