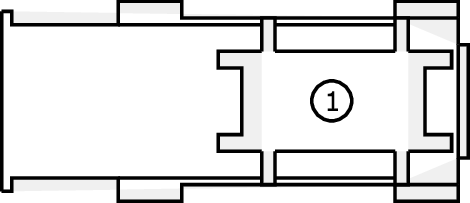

Connector End View (C2280H) - BODY CONTROL MODULE (BCM)
Connector:C2280H
Description
BODY CONTROL MODULE (BCM)
Color
BK
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
Check for Terminal Part Numbers
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
SBB13 (GY-RD) |
10 |
FUSE - 13 OR CIRCUIT BREAKER |
