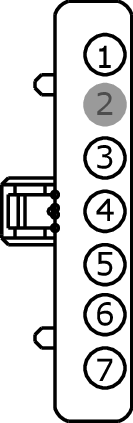

Connector End View (C250) - IGNITION SWITCH
Connector:C250
Description
IGNITION SWITCH
Color
BK
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CDC34 (WH-OG) | 20 | SWITCH - IGNITION # RUN, START | |
| 2 | * | * | Not Used | |
| 3 | CDC41 (WH-BN) | 22 | SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL) | |
| 4 | SBP18 (YE-RD) | 20 | FUSE - 18 OR CIRCUIT BREAKER | |
| 5 | CDC30 (BU-GY) | 22 | SWITCH - IGNITION # KEY IN | |
| 6 | CDC33 (VT-GN) | 22 | SWITCH - IGNITION # RUN, ACCESSORY | |
| 7 | CDC35 (BU-WH) | 20 | SWITCH - IGNITION # START |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-957 |
Service Part Number: 3U2Z-14S411-FMAB Gauge: 12 14 Pin material: Tin & Silver Cavities: 7 Vehicle Uses Switch - Ignition |
