Parking Brake Control: Removal

1.

Release the parking brake cable tension. Refer to: Parking Brake Cable Tension Release .

2.

NOTE: The brake pedal and bracket assembly and the accelerator pedal must be removed to prevent damage when positioning the carpet and foam support aside
- Remove the brake pedal and bracket assembly and the accelerator pedal. Refer to: Brake Pedal and Bracket . Refer to: Accelerator Pedal .

3.

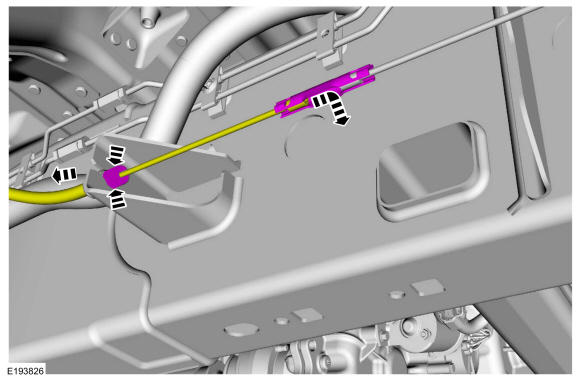

Disconnect the front parking brake cable from the cable union.

GFD38861

Courtesy of FORD MOTOR COMPANY

4.

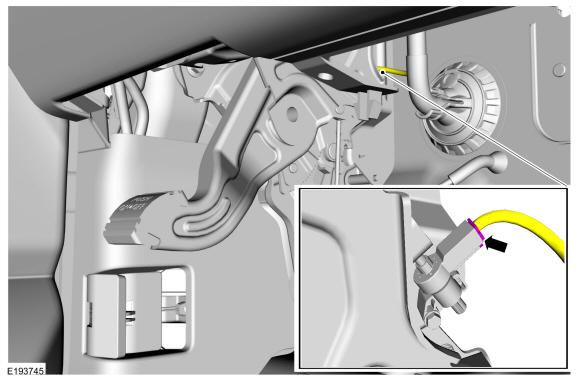

Disconnect the parking brake warning indicator switch electrical connector.

GFD38862

Courtesy of FORD MOTOR COMPANY

5.

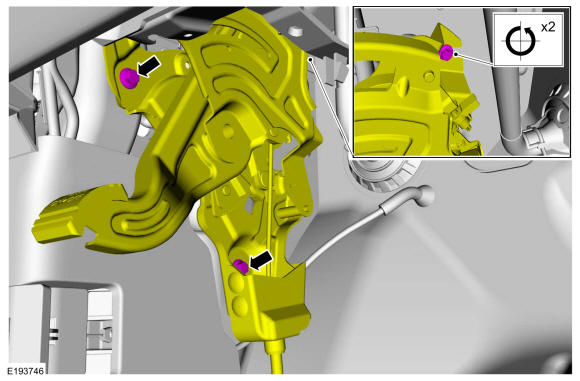

Remove the 2 bolts, loosen the remaining bolt 2 full turns and position the parking brake aside.
Torque: 177 lb.in (20 Nm)

GFD38863

Courtesy of FORD MOTOR COMPANY

6.

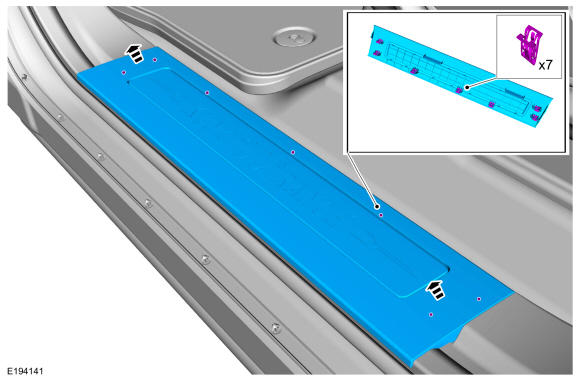

Detach the 7 retainer clips and remove the scuff plate trim panel.

GFD38864

Courtesy of FORD MOTOR COMPANY

7.

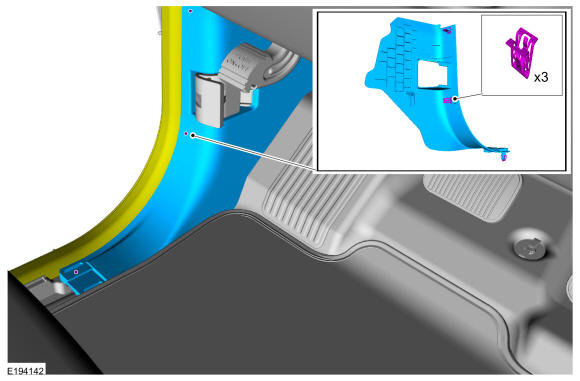

Detach the 3 retainer clips and remove the cowl side trim panel.

GFD38865

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Do not allow the foam support (located below the carpet) to separate from the carpet insulation or damage to the foam support and/or carpet insulation may occur.

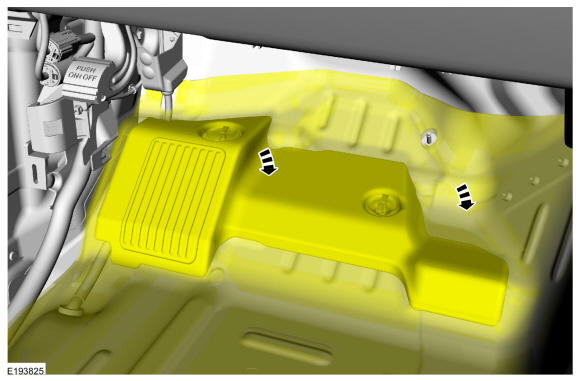

Carefully position the carpet and foam support back to access the front cable conduit grommet.

GFD38866

Courtesy of FORD MOTOR COMPANY

9.

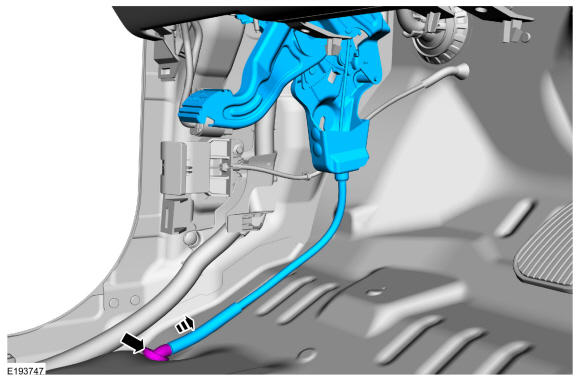

Detach the front cable conduit grommet from the floor and remove the front parking brake cable and parking brake control as an assembly.

GFD38867

Courtesy of FORD MOTOR COMPANY
