Brake Pedal Control Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

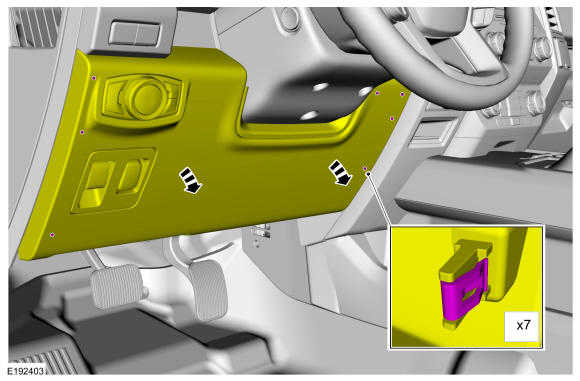

Pull outward on the steering column opening cover detaching the 7 clips and allow the cover to hinge downward.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

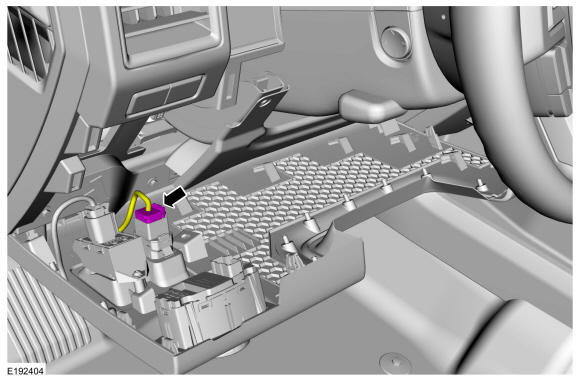

Disconnect the adjustable pedal switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

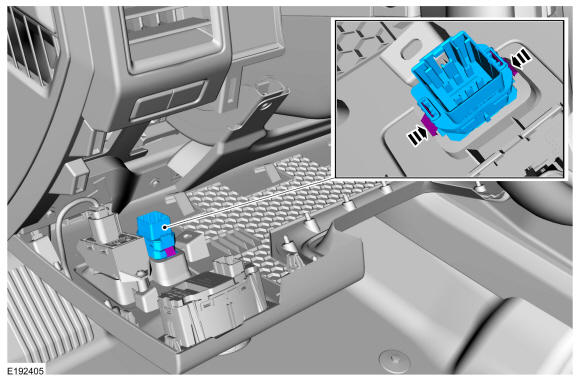

Press inward on the 2 clips and remove the adjustable pedal switch.
 Courtesy of FORD MOTOR COMPANY
|
