Adjustable Pedal Indexing
NOTE:
The adjustable pedal system must be indexed whenever the brake pedal assembly or accelerator pedal assembly is installed or damage to the components may result.

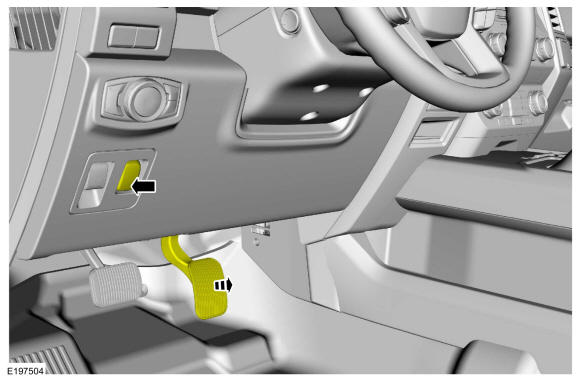

- 4.

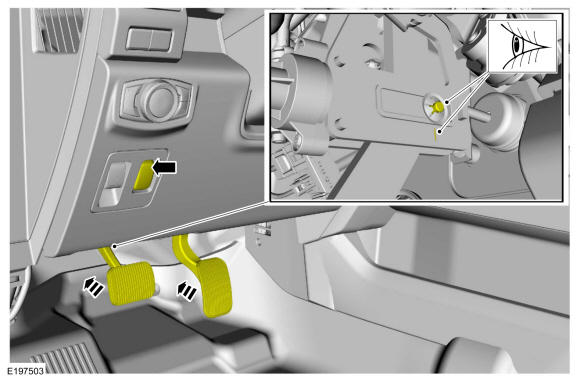

Operate the adjustable pedals until the pin is aligned with the witness mark on the brake pedal bracket.
- 6.

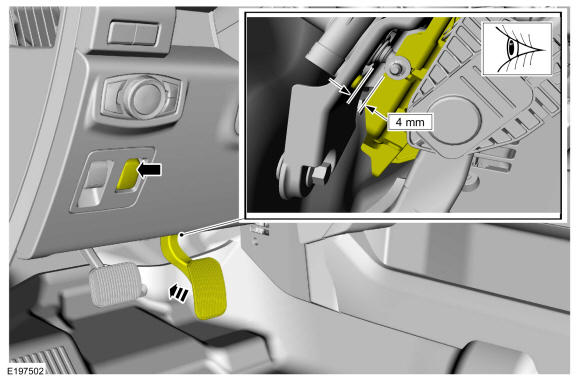

Operate the adjustable accelerator pedal forward until there is a 4mm (0.157 in) gap between the screw head and the moving structure of the accellerator pedal.
- 7.

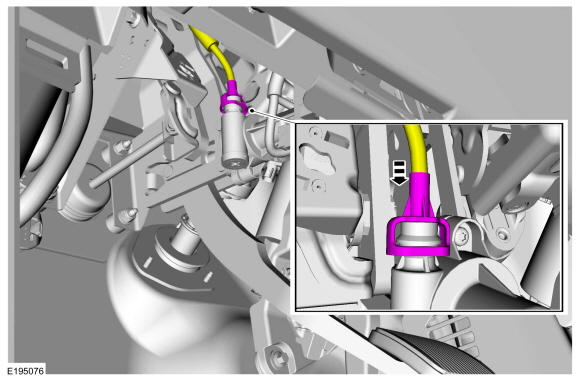

Connect the adjustable pedal motor drive cable to the adjustable brake pedal drive.- Check that the brake and accelerator pedals can be fully adjusted forward and rearward.
