Instrument Panel: Removal

All vehicles

1. 1.

   Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

1. 2.

   Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .

1. 3.

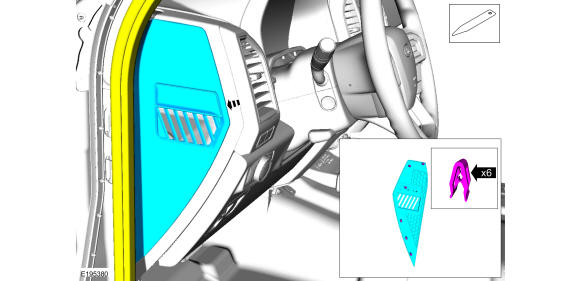

   Release the clips and remove the LH instrument panel finish panel.
   • Position aside the weather strip. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

1. 4.

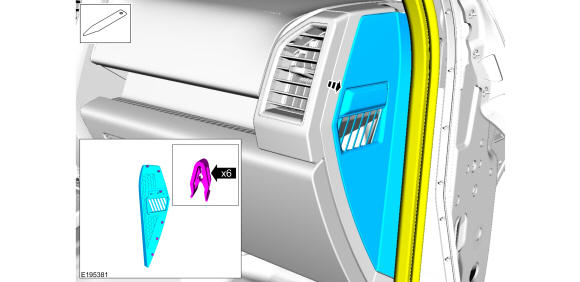

   Release the clips and remove the RH instrument panel finish panel.
   • Position aside the weather strip. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: On both sides.

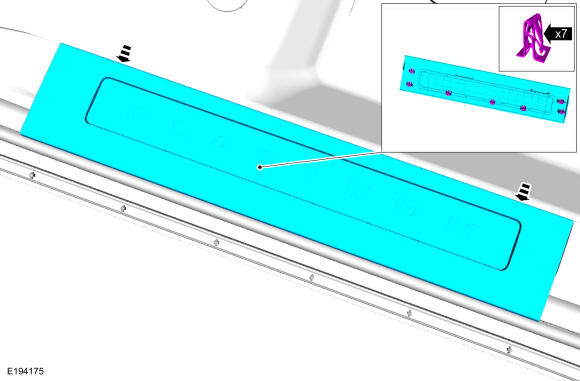

   Release the clips and remove the scuff plate.

Courtesy of FORD MOTOR COMPANY

1. 6.



   1. 1.

      Position aside the weather strip.

   1. 2.

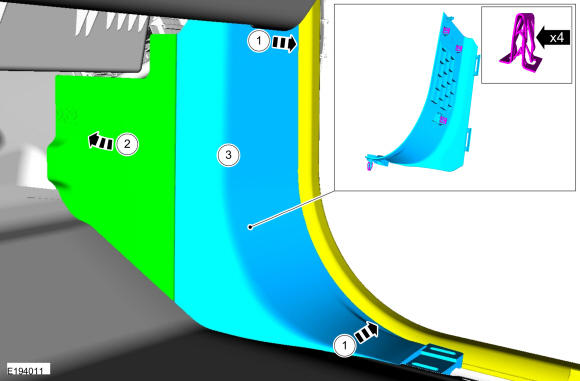

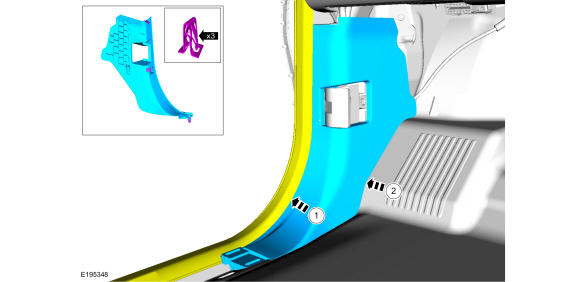

      Release the clips and remove the LH lower cowl trim panel.

Courtesy of FORD MOTOR COMPANY

1. 7.



   1. 1.

      Position aside the weather strip.

   1. 2.

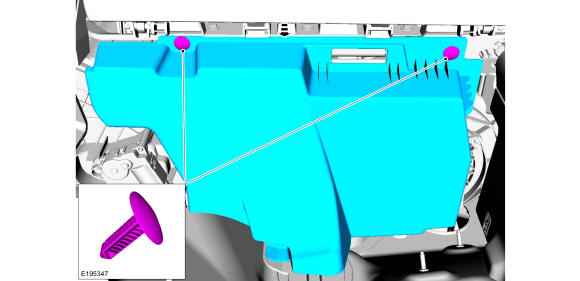

      Remove the access cover.

   1. 3.

      Release the clips and remove the RH lower cowl trim panel.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Remove both front seats. Refer to: Front Seat .

1. 9.

   If equipped, remove the front center seat. Refer to: Front Center Seat .

Vehicles with floor console.

1. 10.

   Remove the floor console. Refer to: Floor Console .

Vehicles without floor console

1. 11.

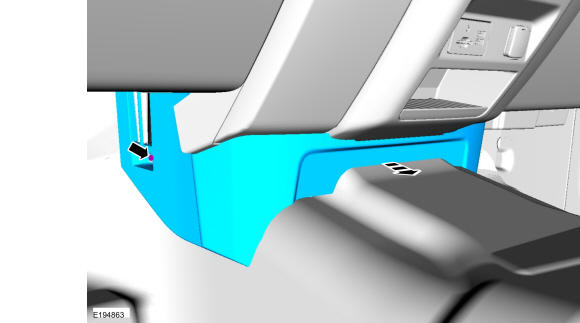

   Remove bolt and the instrument panel lower trim panel.

   Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with steering column mounted selector lever

1. 12.


   NOTE: Push button start vehicle shown, all others similar.

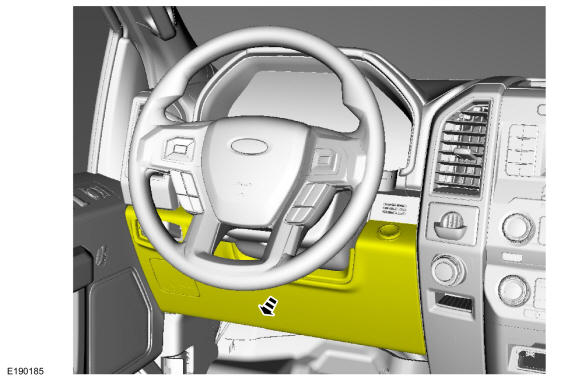

   Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

1. 13.

   Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 14.

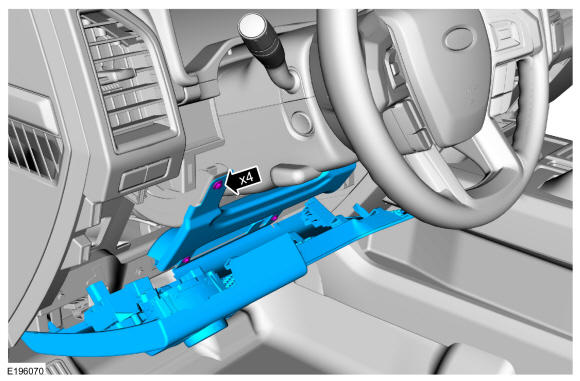

   Remove the 4 bolts and the steering column opening trim panel and reinforcement.

   Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. 15.

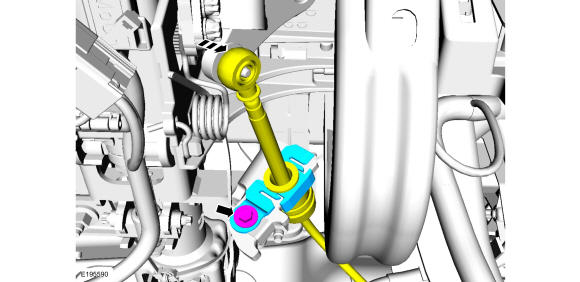

   Remove the bolt and position aside the selector lever cable.

   Torque: 31 lb.in (3.5 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 16.

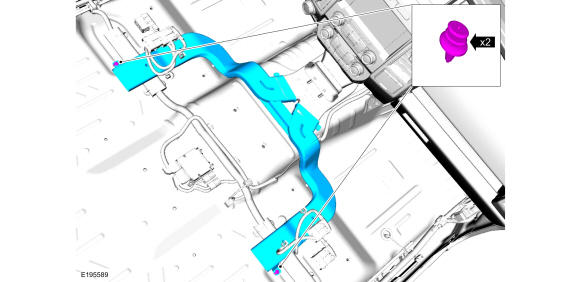

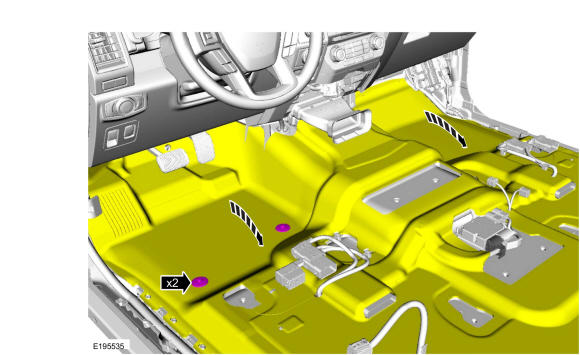

   Remove the retainers and position the floor covering rearward.

Courtesy of FORD MOTOR COMPANY

1. 17.

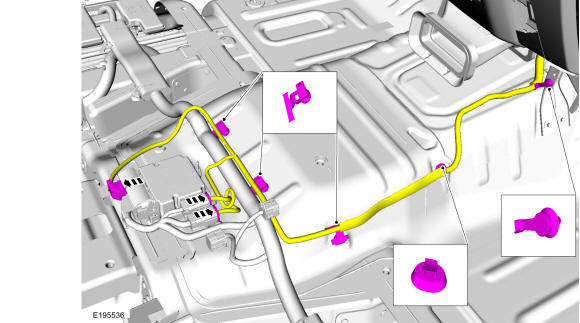

   Release the retainers and remove the floor duct.

Courtesy of FORD MOTOR COMPANY

1. 18.

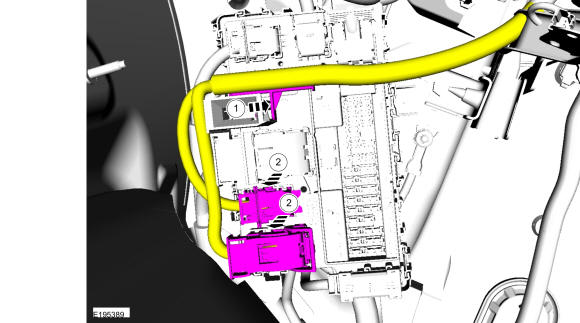

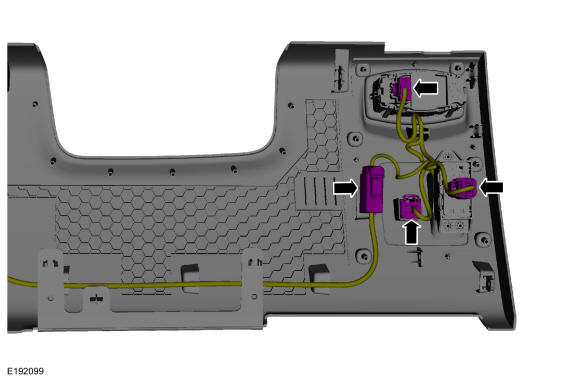

   Disconnect the electrical connectors, release the retainers and position aside the harness.

Courtesy of FORD MOTOR COMPANY

1. 19.


   NOTE: Located on RH lower instrument panel.

   Release the retainers and remove the insulation panel.

Courtesy of FORD MOTOR COMPANY

1. 20.

   Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 21.



   1. 1.

      Release the harness retainer.

   1. 2.

      Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 22.

   Remove the glove compartment door. Refer to: Glove Compartment .

1. 23.


   NOTE: Located behind glove compartment door.

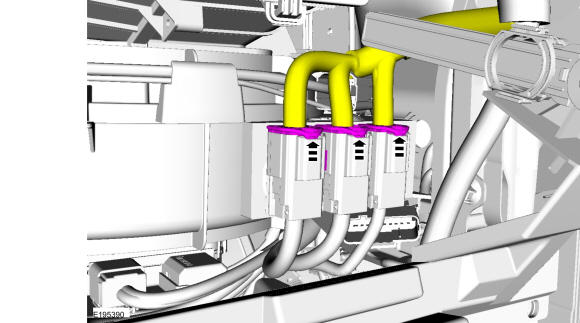

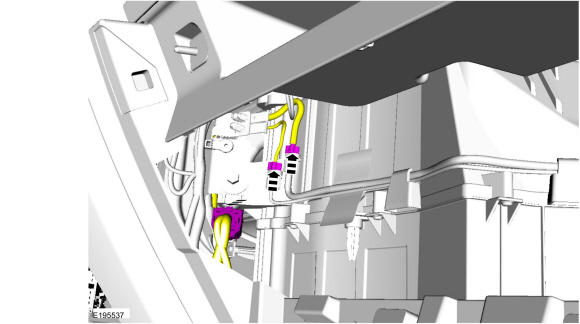

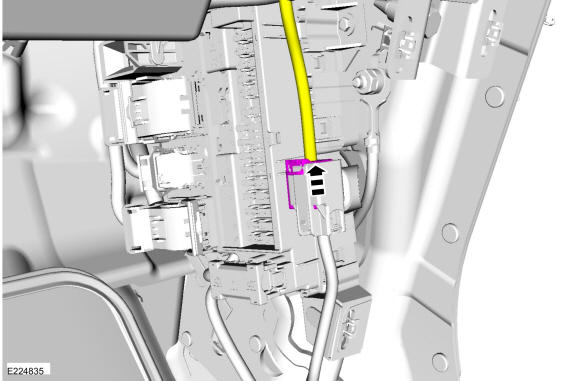

   Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 24.

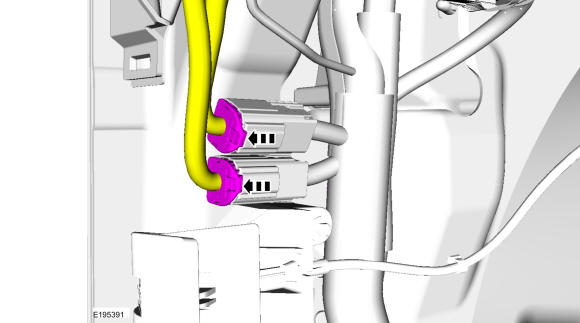

   Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 25.

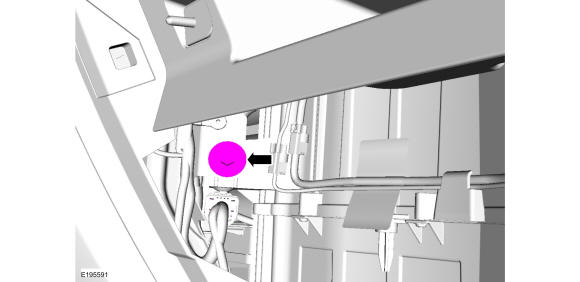

   Remove the bolt.

   Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. 26.


   NOTE: located on LH lower cowl.

   Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 27.


   WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
   NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

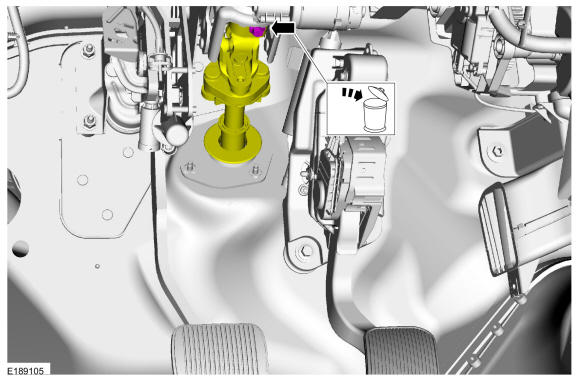

   Remove and discard the bolt and disconnect the upper steering column shaft.

   Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

1. 28.

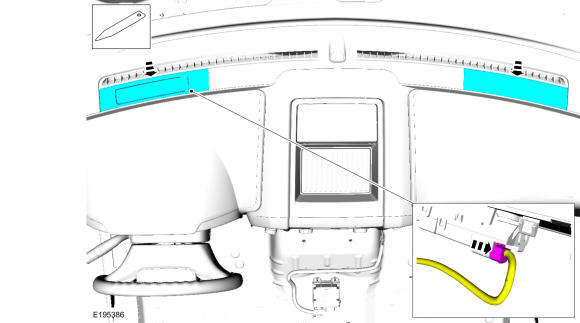

   Remove the instrument panel access panel.
   • If equipped, disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

1. 29.

   Remove the bolts.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 30.

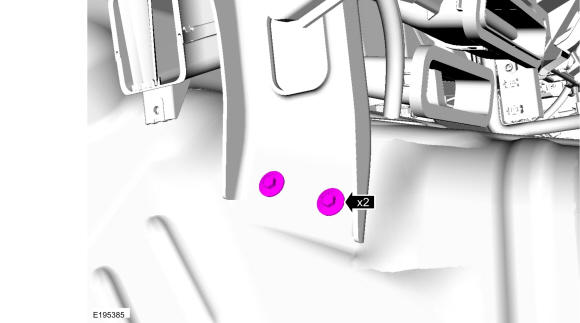

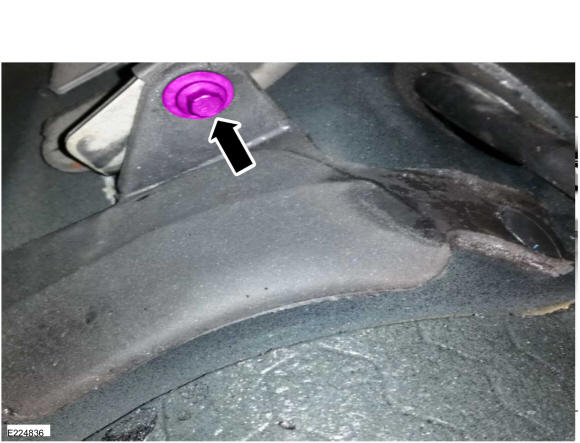

   Remove the bolt.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 31.

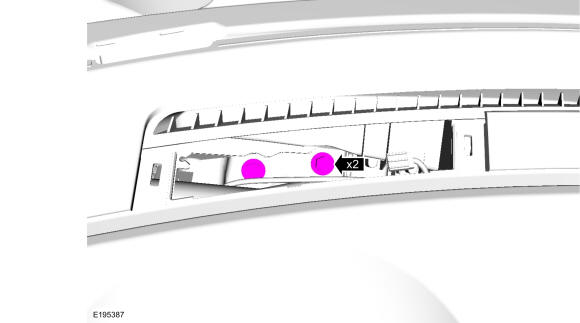

   Remove the RH bolts.

   Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. 32.

   Remove the bolt at the rubber pad.

   Torque: 80 lb.in (9 Nm)

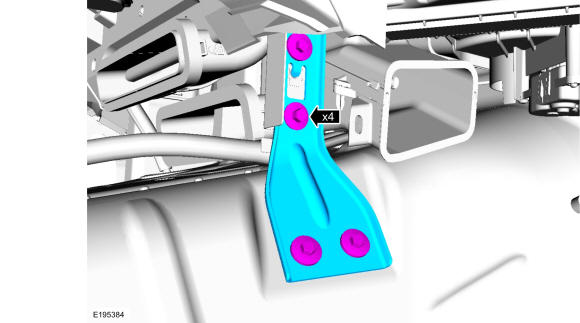

Courtesy of FORD MOTOR COMPANY

1. 33.

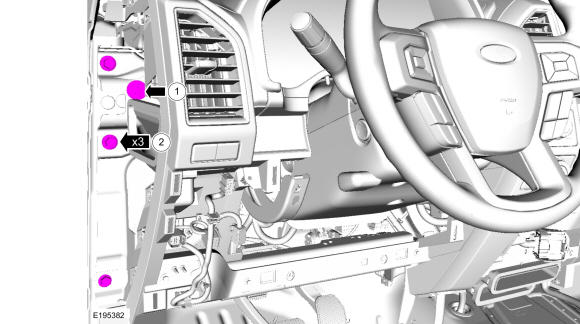

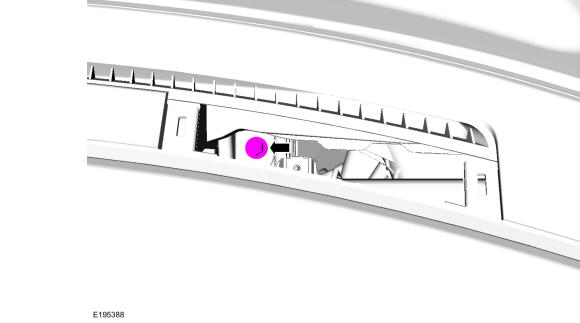

   Remove the LH bolts.

   Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. 34.



   1. 1.

      Remove the bolt.

      Torque: 18 lb.ft (25 Nm)

   1. 2.

      Remove the bolts.

      Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

1. 35.

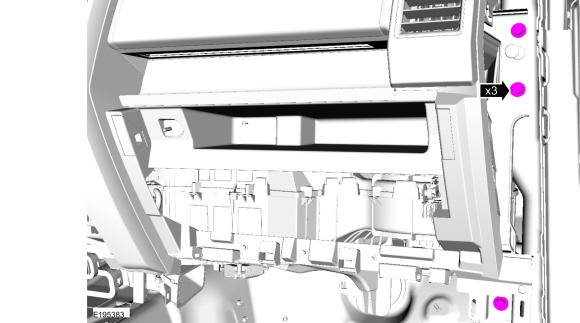

   Remove the bolts.

   Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

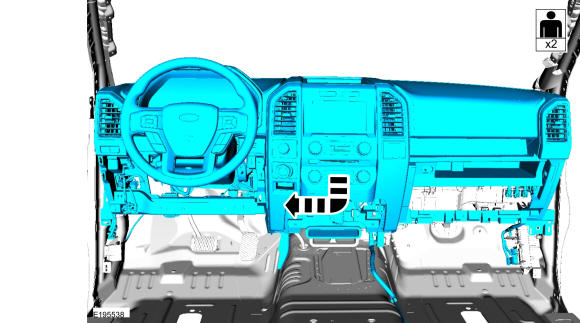

1. 36.


   NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
   NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
   NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

   Rotate the instrument panel face down and remove through the LH front door opening.

Courtesy of FORD MOTOR COMPANY
