Instrument Panel Upper Section: Removal

All vehicles

1. 1.

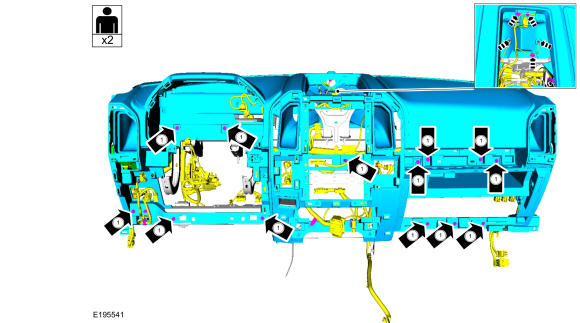

   Remove the instrument panel. Refer to: Instrument Panel .

1. 2.


   NOTE: Upper instrument panel storage tray with speaker shown, others similar.

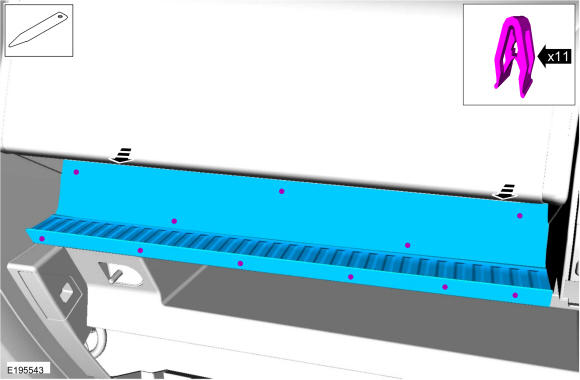

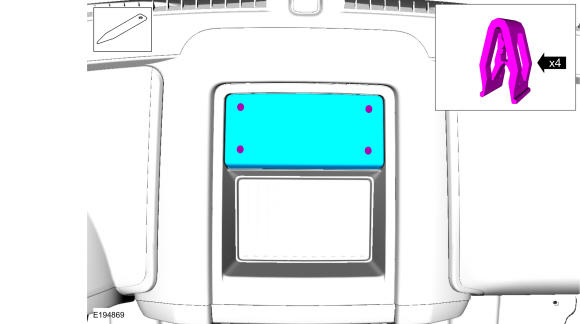

   If equipped, release the clips and remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

1. 3.

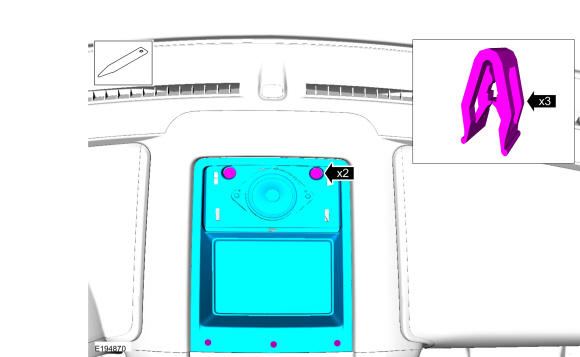

   NOTE: Upper instrument panel storage tray with speaker shown, others similar.

   Remove the bolts, release the clips and remove upper instrument panel storage tray. Use the General Equipment: Interior Trim Remover

   Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 4.

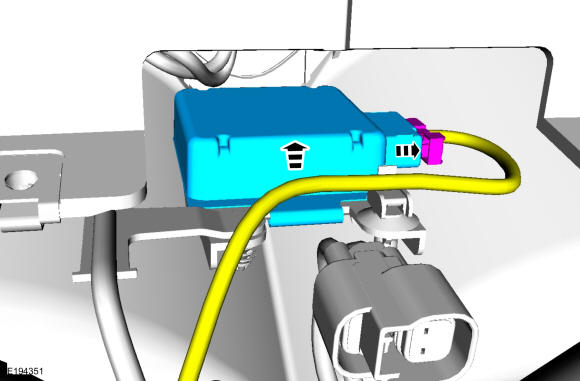

   Release the clip and remove the GPSM.
   • Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 5.

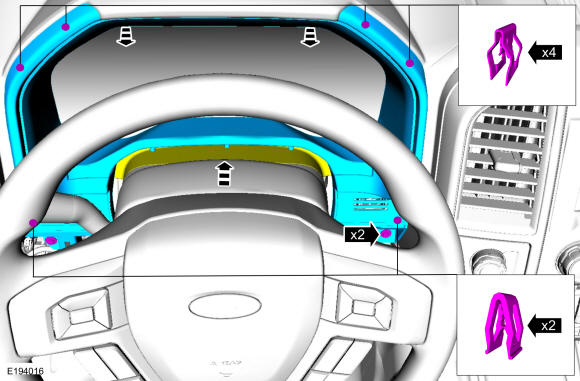

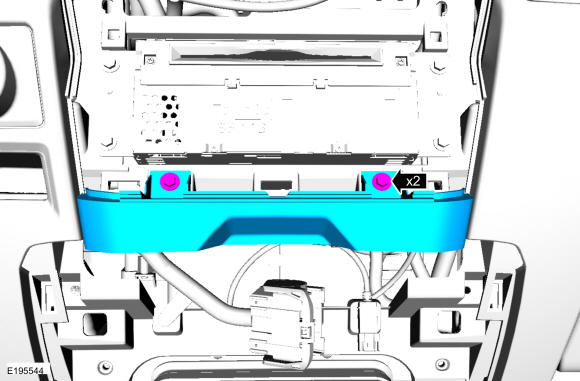

   Remove the 2 bolts, release the clips and remove IPC trim panel.
   • Detach the gap hider from the upper steering column shroud.

     Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 6.

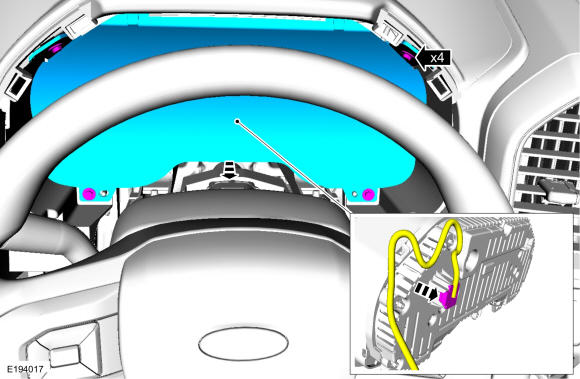

   Detach the gap hider from the upper steering column shroud.
   • Disconnect the electrical connector.

     Torque: 21 lb.in (2.4 Nm)

Courtesy of FORD MOTOR COMPANY

1. 7.

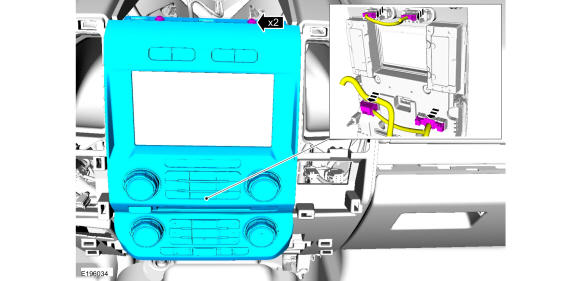

   NOTE: FCIM with touchscreen shown. FCIM without touch screen similar.

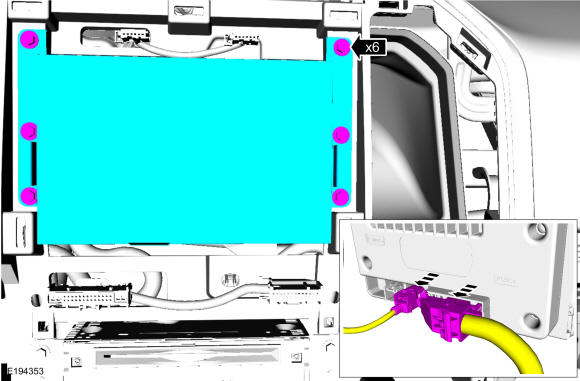

   Remove the bolts and the FCIM.

   • Disconnect the electrical connectors.

     Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 8.


   NOTE: Instrument panel center trim panel without floor console shown, with floor console similar.

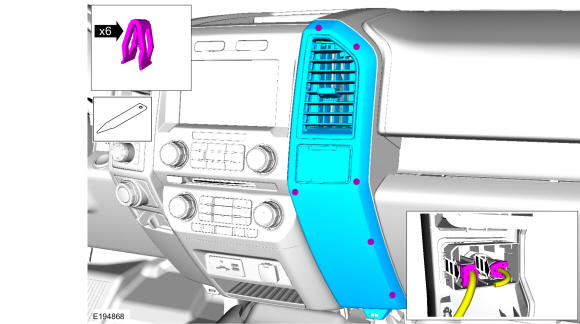

   Release the clips and remove the RH instrument panel center trim panel.

   • Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

1. 9.


   NOTE: Instrument panel center trim panel without floor console shown, with floor console similar.

   Release the clips and remove the LH instrument panel center trim panel.

   • Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

Vehicles without touchscreen

1. 10.

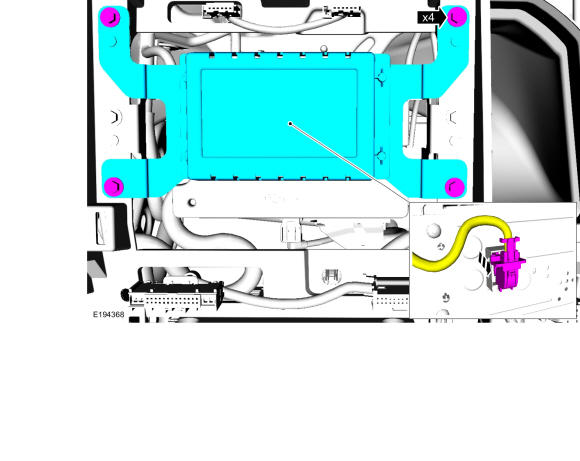

   Remove the bolts and the FCDIM.
   • Disconnect the electrical connector.

     Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 11.

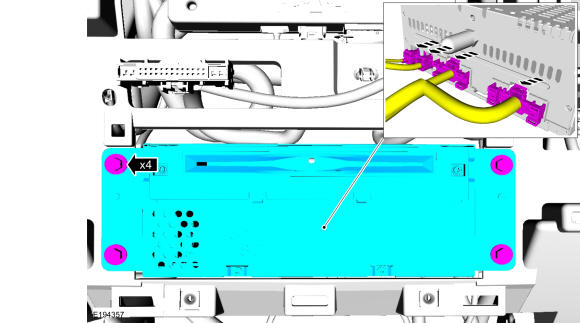

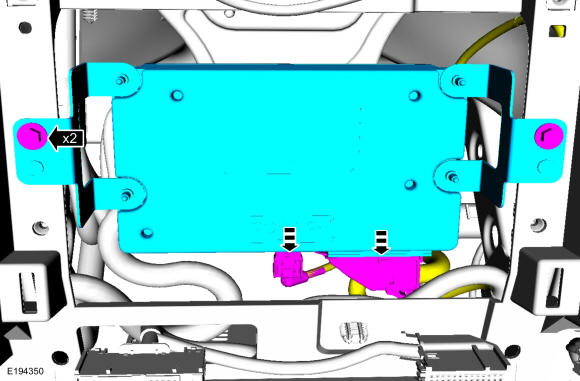

   Remove the two bolts and the APIM.
   • Disconnect the electrical connectors.

     Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with touchscreen

1. 12.

   Remove the bolts and the FDIM.
   • Disconnect the electrical connectors.

     Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles without floor console

1. 13.

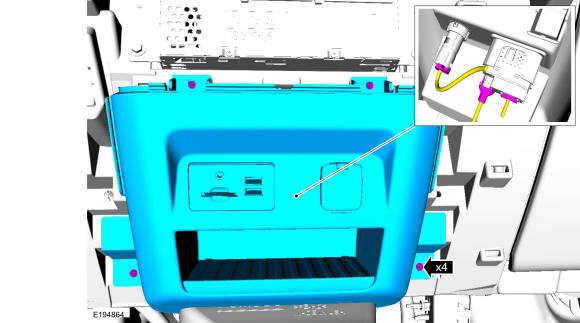

   Remove bolts and the lower instrument panel finish panel.
   • Disconnect the electrical connectors.

     Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with floor console

1. 14.

   Remove the bolts and the instrument panel lower finish panel.

   Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 15.

   Remove the bolts and the ACM.
   • Disconnect the electrical connectors.

     Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 16.

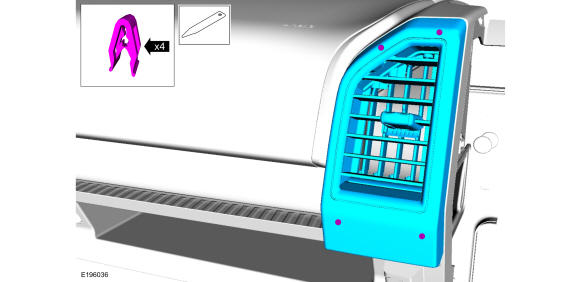

   Release the clips and remove the RH register finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

1. 17.

   Release the clips and remove the RH finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

1. 18.


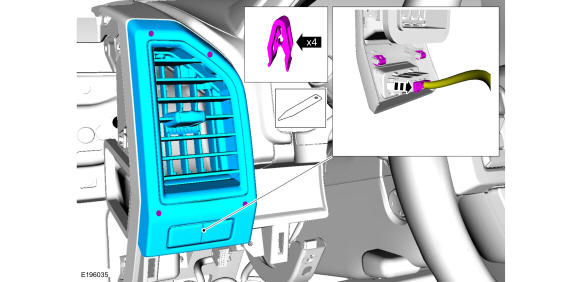

   NOTE: Vehicle with spot light shown, without spotlight similar.

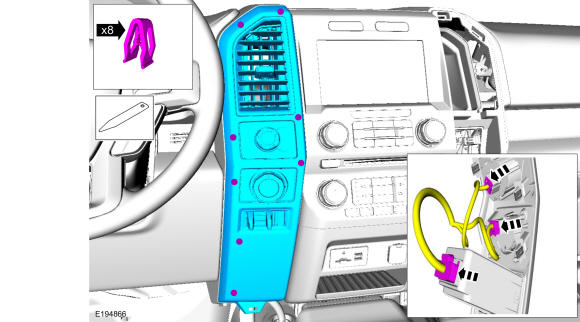

   Release the clips and remove the LH register finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

1. 19.

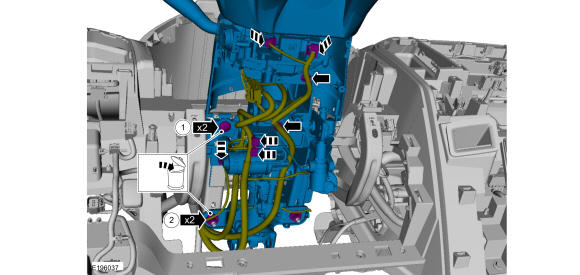

   WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

   Disconnect the electrical connectors, position aside the harness and remove the steering column.

   1. 1.

      Remove and discard the bolts.

      Torque: 21 lb.ft (28 Nm)

   1. 2.

      Remove and discard the nuts.

      Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 20.

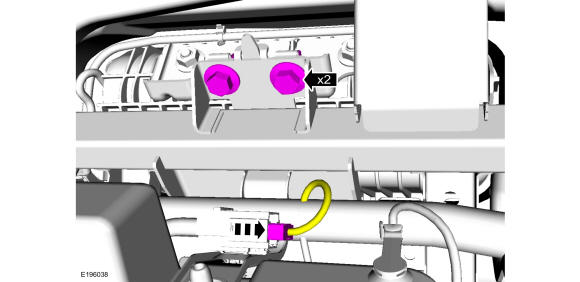

   Remove the bolts
   • Disconnect the electrical connector.

     Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. 21.

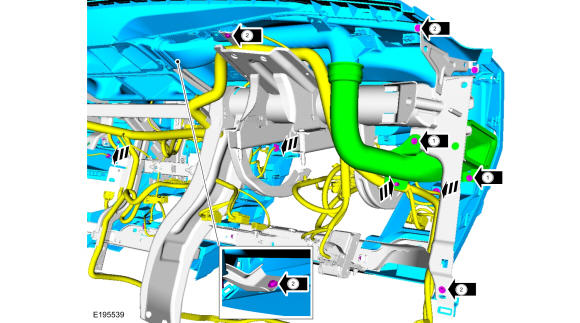

   Disconnect the electrical connectors. release the harness retainers and position aside the electrical harness.

   1. 1.

      Remove the bolts and the HVAC duct.

      Torque: 22 lb.in (2.5 Nm)

   1. 2.

      Remove the bolts.

      Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 22.

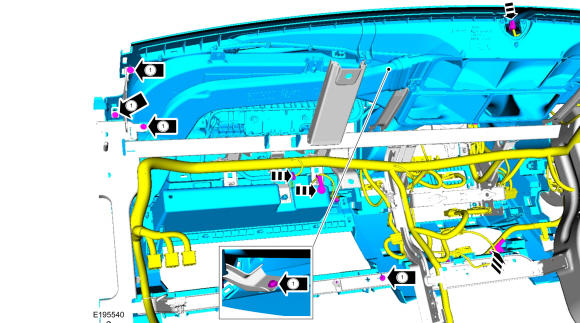

   Disconnect the electrical connectors, release the harness retainers and position aside the electrical harness.
   • Remove the bolts.

     Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

1. 23.

   Disconnect the electrical connectors. release the harness retainers and position aside the electrical harness.

   1. 1.

      Remove the bolts.

      Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
