Turbocharger Coolant Supply Tube RH: Installation
- 1.
Install the turbocharger coolant supply tube and then install the turbocharger coolant return tube.
- 4.
Connect the turbocharger coolant tubes, then install new the turbocharger coolant tube bolts finger tight at this stage.
- 9.

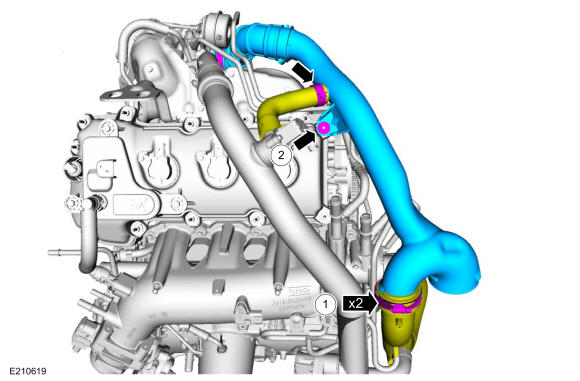

Install the turbocharger inlet pipe and then tighten the turbocharger inlet pipe clamp. Install and tighten the turbocharger inlet pipe retaining nut. Connect the turbocharger bypass hose.Torque:
1: 44 lb.in (5 Nm)
2: 44 lb.in (5 Nm)
- 10.
Install the air cleaner assembly and the air cleaner outlet pipe. REFER to: Air Cleaner . REFER to: Air Cleaner Outlet Pipe .
- 11.
Install the steering heat shield, then install and tighten the steering heat shield bolts.Torque
: 97 lb.in (11 Nm)
- 12.
Install the Catalytic Converter RH. REFER to: Catalytic Converter RH .
- 13.
Fill the cooling system. REFER to: Cooling System Draining, Vacuum Filling and Bleeding .
