Instrument Cluster Finish Panel

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

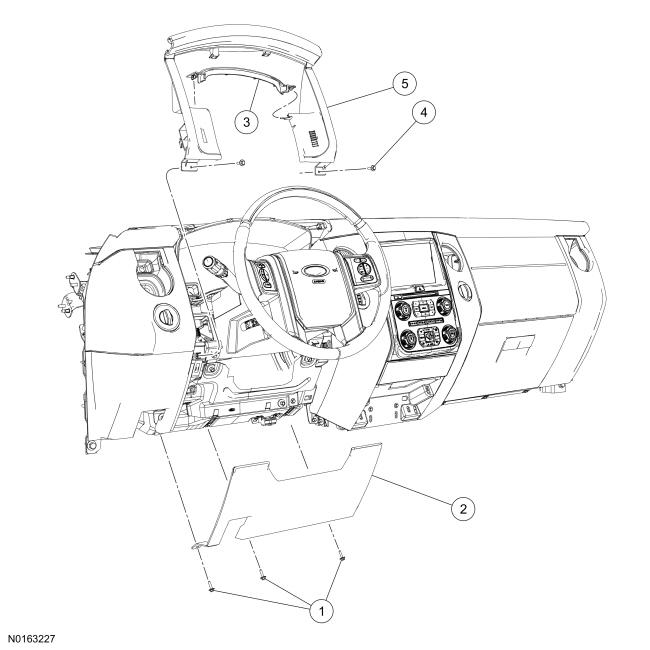

GFD137774

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W707628	Steering column opening trim panel screws (3 required)
2	04459	Steering column opening trim panel
3	-	Instrument cluster finish panel bridge
4	W707628	Instrument cluster finish panel screw (2 required)
5	04320	Instrument cluster finish panel

Column shift vehicles only

1.

Place the selector lever to the 1 position.

All vehicles

2.

Remove the steering column opening trim panel.
- Remove the 3 steering column opening trim panel screws.
- Release the steering column opening trim panel from the instrument panel.

GFD137775

Courtesy of FORD MOTOR COMPANY

3.

Tilt the steering wheel to the full down position.

4.

Remove the instrument cluster finish panel bridge.
- Pull upward and then left on the LH side of the finish panel bridge to release the retainer and remove the finish panel bridge.

5.

Remove the 2 instrument cluster finish panel screws.

6.

Remove the instrument cluster finish panel.
- Pull on the finish panel to release it from the retainers.
- Disconnect the electrical connectors.

7.

To install, reverse the removal procedure.
- Make sure to align the trim panel retaining clips to the retaining clip holes in the instrument panel.
