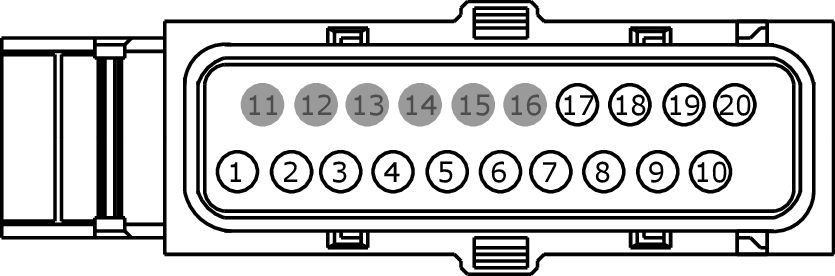

Connector End View (C1520A) - 6F35 TRANSMISSION
Connector: C1520A
Description
6F35 TRANSMISSION
Color
LT GY
Harness
12A690/12C508
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RE406 (GY-VT) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIG RTN) | 2.5L |
| 1 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIG RTN) | 2.0L |
| 1 | RET35 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (SIG RTN) | 1.6L |
| 2 | VET27 (BN-YE) | 20 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 3 | CET09 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (LPC) | |
| 4 | CET07 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSC) | |
| 5 | CET25 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) | 1.6L |
| 5 | CET25 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) | 2.0L/2.5L |
| 6 | CET10 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (TCC) | |
| 7 | CET18 (GY-YE) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL (SSE) | |
| 8 | CET05 (BN-GN) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSA) | 1.6L |
| 8 | CET05 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSA) | 2.0L/2.5L |
| 9 | CET06 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSB) | |
| 10 | CET08 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL (SSD) | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) | |
| 18 | LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # (TSS/OSS/TRS) (VBPWR) | 2.0L/2.5L |
| 18 | LET57 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE (TSS/OSS/TRS) (VBPWR) | 1.6L |
| 19 | RET26 (BN-GN) | 20 | SENSOR - OUTPUT SHAFT SPEED (OSS) | 1.6L |
| 19 | VET26 (BN-GN) | 20 | SENSOR - OUTPUT SHAFT SPEED (OSS) | 2.0L/2.5L |
| 20 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TSS/OSS/TRS) (SIG RTN) |

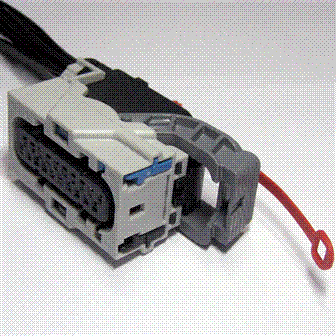

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1203 |
Service Part Number: 8U2Z-14S411-ACB Gauge: 18 Pin material: Tin (greased) Cavities: 20 Vehicle Uses Sensor - Transmission Range Transmission - Bulkhead |
