Brake Vacuum Pump - 1.6L EcoBoost (110kW/150PS) - Sigma/1.6L EcoBoost (132kW/180PS) - Sigma: Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe

• 2.

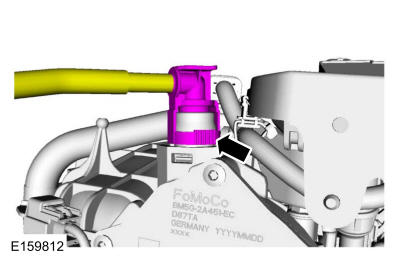

  Squeeze the sides of the coupling and disconnect the vacuum tube.

Courtesy of FORD MOTOR COMPANY

• 3.

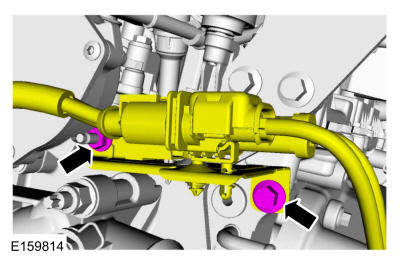

  Remove the nuts and position the EVAP purge valve and bracket aside.

  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 4.

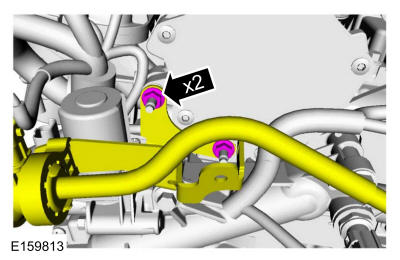

  Remove the nut, the bolt and position aside the engine harness and bracket.

  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.

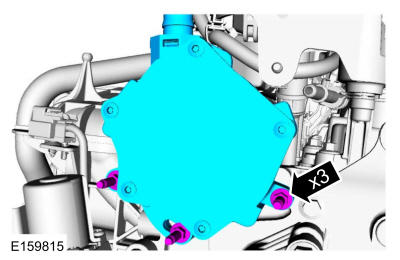

  Remove the bolts and vacuum pump.

  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

• 6.

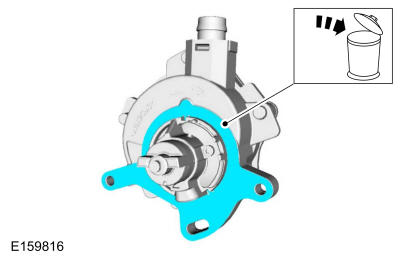

  Remove and discard the gasket.

Courtesy of FORD MOTOR COMPANY
