Brake Vacuum Pump - 1.6L EcoBoost (110kW/150PS) - Sigma/1.6L EcoBoost (132kW/180PS) - Sigma: Installation

• 1.

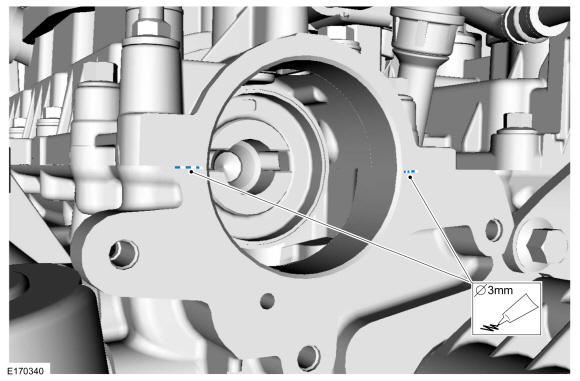

  Apply an 3mm bead of the specified sealant in the location shown below.

  Material

  : Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: Align the camshaft and vacuum pump couplings correctly or damage to the camshaft or vacuum pump may occur.
  NOTE: Make sure the mating surfaces are clean and free of foreign material.

  To install, reverse the removal procedure.
