Brake Booster: Removal

1.

Remove the remote brake fluid reservoir. Refer to: Remote Brake Fluid Reservoir

2.

Remove the battery tray. Refer to: Battery Tray

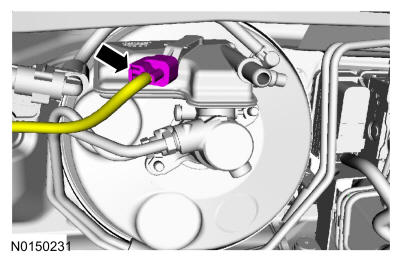

3.

Disconnect the brake fluid level sensor electrical connector.

GFD48322

Courtesy of FORD MOTOR COMPANY

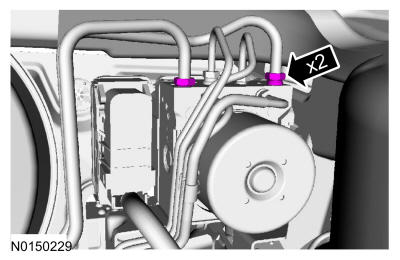

4.

Disconnect the brake tube fittings.
Torque

: 159 lb.in (18 Nm)

GFD48323

Courtesy of FORD MOTOR COMPANY

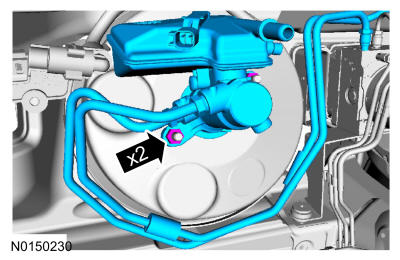

5.

Remove the nuts and remove the brake master cylinder and brake tubes as an assembly.
Torque

: 18 lb.ft (25 Nm)

GFD48324

Courtesy of FORD MOTOR COMPANY

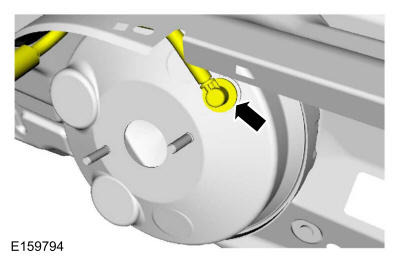

6.

Detach the vacuum check valve from the booster and position aside.

GFD48325

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch

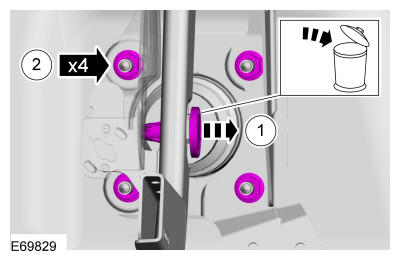

8.
- 1.

  Remove and discard the booster push rod clevis-locking pin.
- 2.

  Remove and discard the nuts.
  Torque

  : 18 lb.ft (25 Nm)

GFD48326

Courtesy of FORD MOTOR COMPANY

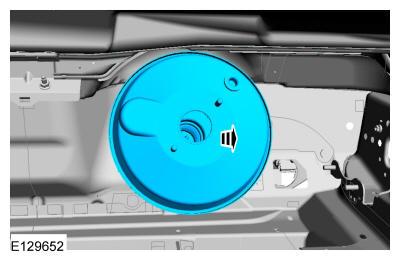

9.

Remove the brake booster.

GFD48327

Courtesy of FORD MOTOR COMPANY
