Instrument Panel Cluster (IPC) - Overview

Instrument Panel Cluster (IPC) - Overview

Base Part Number: 10849

Overview

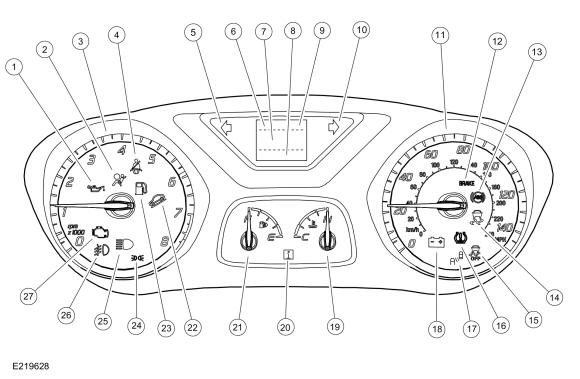

Base IPC

GFD118415Courtesy of FORD MOTOR COMPANY
1 Low oil pressure warning indicator
2 Airbag warning indicator
3 Tachometer
4 Safety belt warning indicator
5 LH turn indicator
6 PRNDL display
7 Message center display area
8 Odometer display area
9 Outside air temperature/compass display area
10 RH turn indicator
11 Speedometer
12 Brake warning indicator
13 ABS warning indicator
14 Stability-traction control indicator (sliding car icon)
15 Stability-traction control disabled indicator (sliding car OFF icon)
16 TPMS warning indicator
17 Blind Spot Information System (BLIS®) indicator
18 Charging system warning indicator
19 Temperature gauge
20 Information indicator
21 Fuel gauge
22 Grade assist indicator
23 Low fuel indicator
24 Lights on indicator
25 High beam indicator
26 Fog lamp indicator
27 MIL

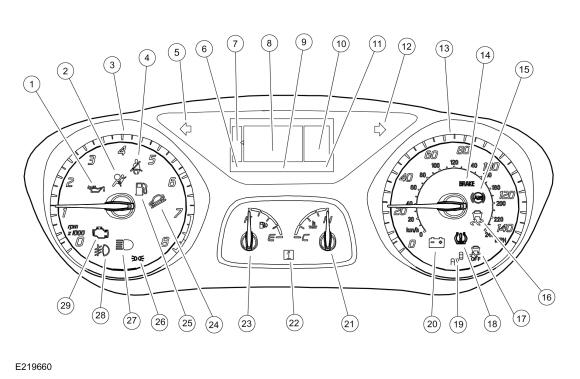

Optional IPC

GFD118416Courtesy of FORD MOTOR COMPANY
1 Low oil pressure warning indicator
2 Airbag warning indicator
3 Tachometer
4 Safety belt warning indicator
5 LH turn indicator
6 PRNDL display
7 Main menu display area
8 Message center display area
9 Outside air temperature/compass display area
10 Cruise control message center indicator/AWD display area
11 Odometer display area
12 RH turn indicator
13 Speedometer
14 Brake warning indicator
15 ABS warning indicator
16 Stability-traction control indicator (sliding car icon)
17 Stability-traction control disabled indicator (sliding car OFF icon)
18 TPMS warning indicator
19 Blind Spot Information System (BLIS®) indicator
20 Charging system warning indicator
21 Temperature gauge
22 Information indicator
23 Fuel gauge
24 Grade assist indicator
25 Low fuel indicator
26 Lights on indicator
27 High beam indicator
28 Fog lamp indicator
29 MIL
NOTE: The IPC is serviceable as an assembly only. Do not attempt to disassemble or install a new IPC lens or indicators.

The base IPC and the optional IPC are almost identical with the exception of the message center display area. The base IPC uses a single LCD display screen. The optional IPC message center provides a larger Thin Film Transistor (TFT) display screen with enhanced display capabilities.

Informational Indicators/Warning Indicators

Informational indicators provide information to the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.

Message Center Indicators

Message center indicators illuminate in the message center and replace the typical informational or warning indicator using the same iconic representation. The only message center indicator available is the cruise control indicator. The cruise control indicator is set in a fixed location in the message center display.

Networked Message Inputs

Module messaging has increased over time and has become the standard for sending and receiving information required to operate the IPC. The majority of the inputs required to operate the IPC are received over the CAN.

Hardwired Inputs

The IPC requires hardwired inputs from components that are not on the HS-CAN or the MS-CAN. These components are required for specific IPC functions or gateway requirements. Refer to: Module Controlled Functions - System Operation and Component Description

The hardwired inputs are provided by:
