Vehicle Dynamic Systems

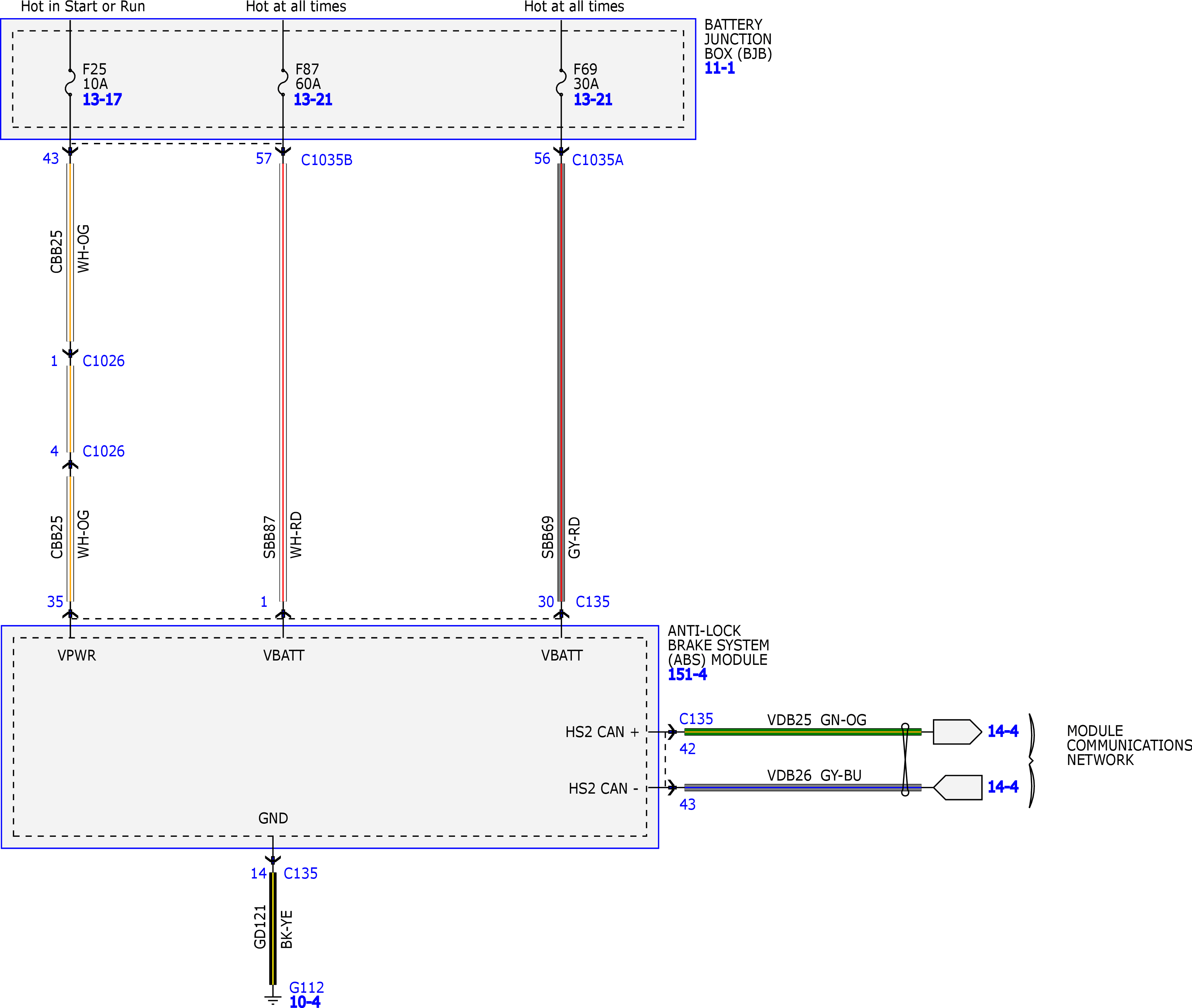

Fig 1: Vehicle Dynamic Systems Wiring Diagrams (1 Of 4)
GFDW5477Courtesy of FORD MOTOR COMPANY

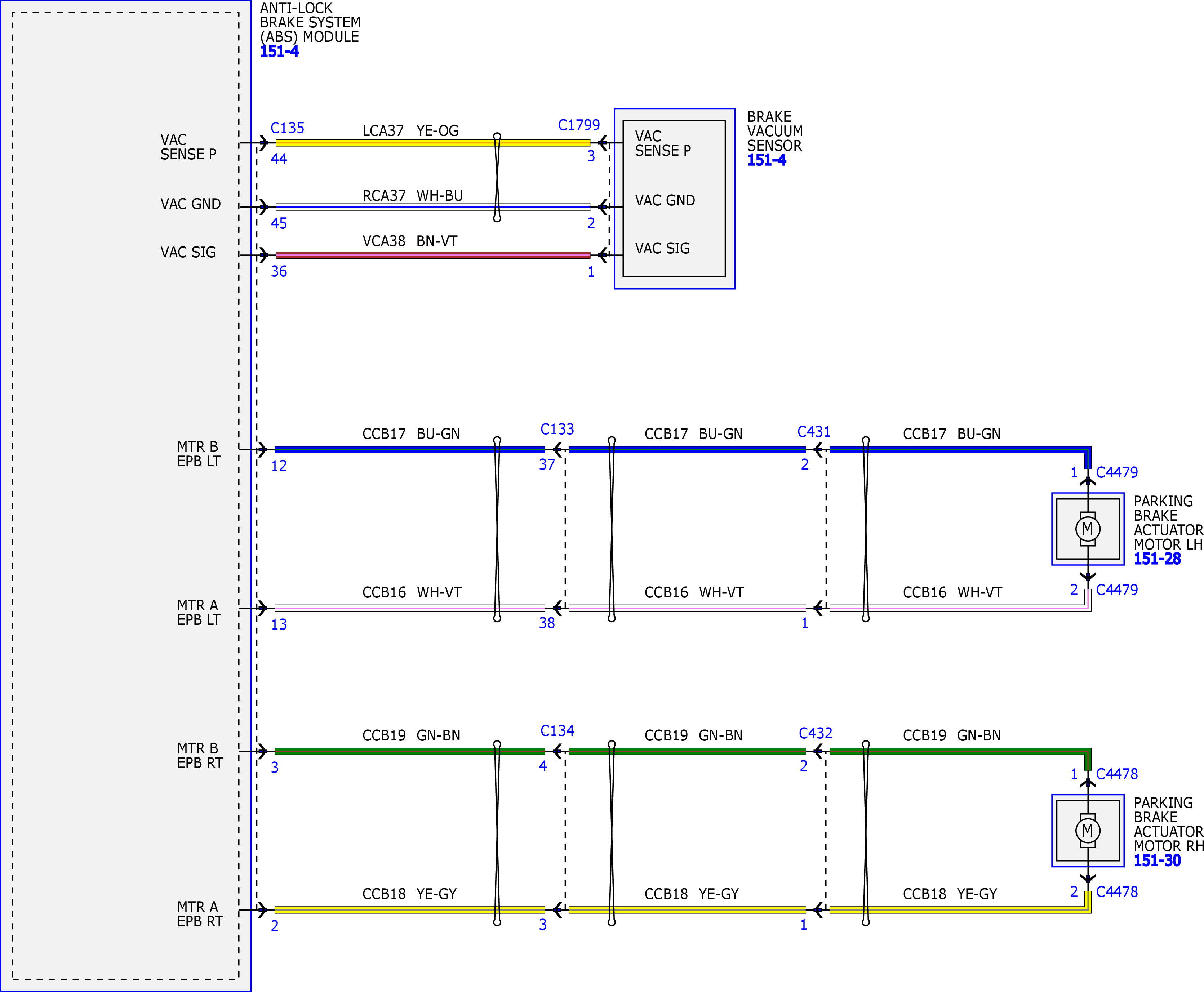

Fig 2: Vehicle Dynamic Systems Wiring Diagrams (2 Of 4)
GFDW5478Courtesy of FORD MOTOR COMPANY

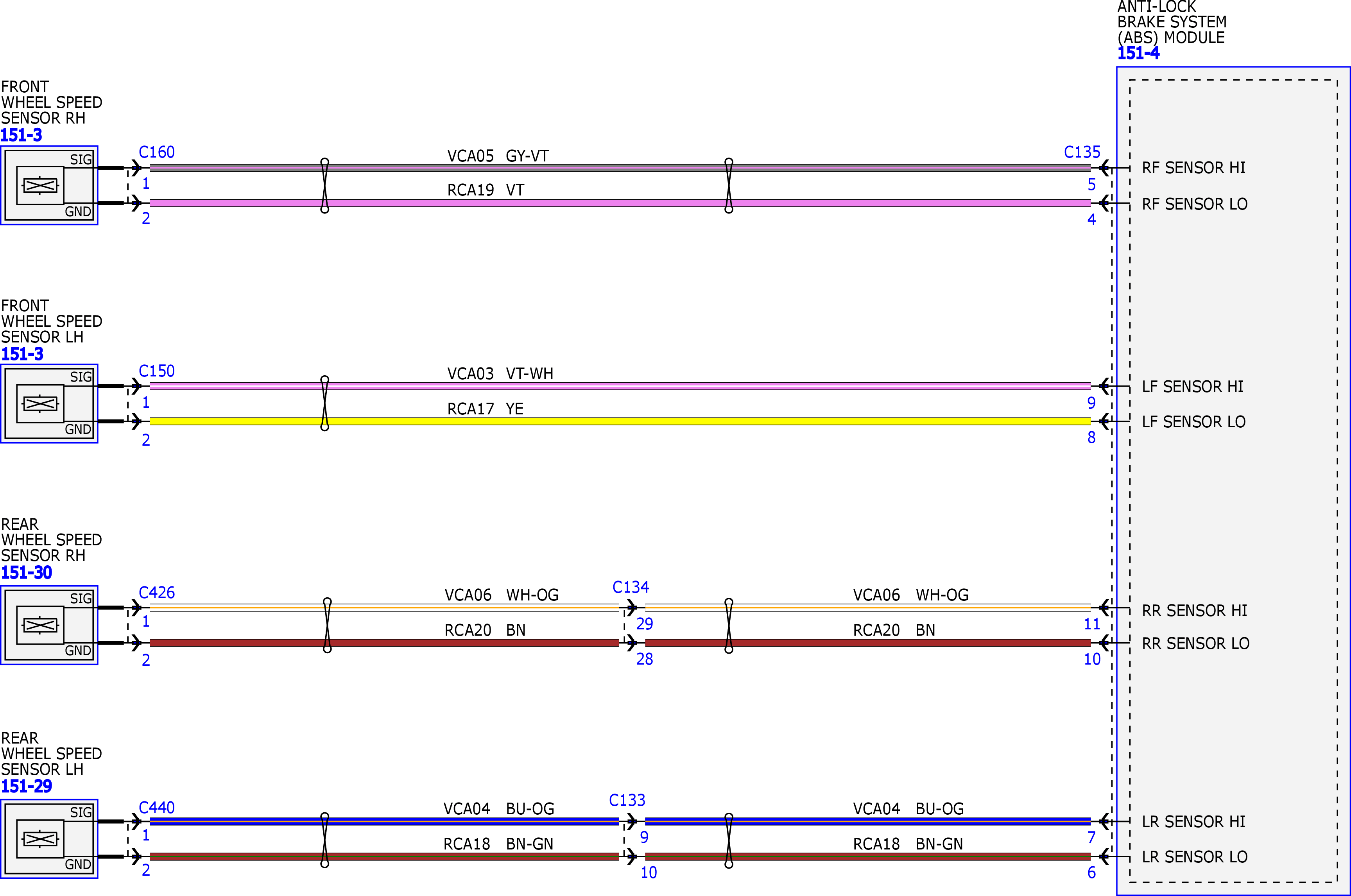

Fig 3: Vehicle Dynamic Systems Wiring Diagrams (3 Of 4)
GFDW5479Courtesy of FORD MOTOR COMPANY

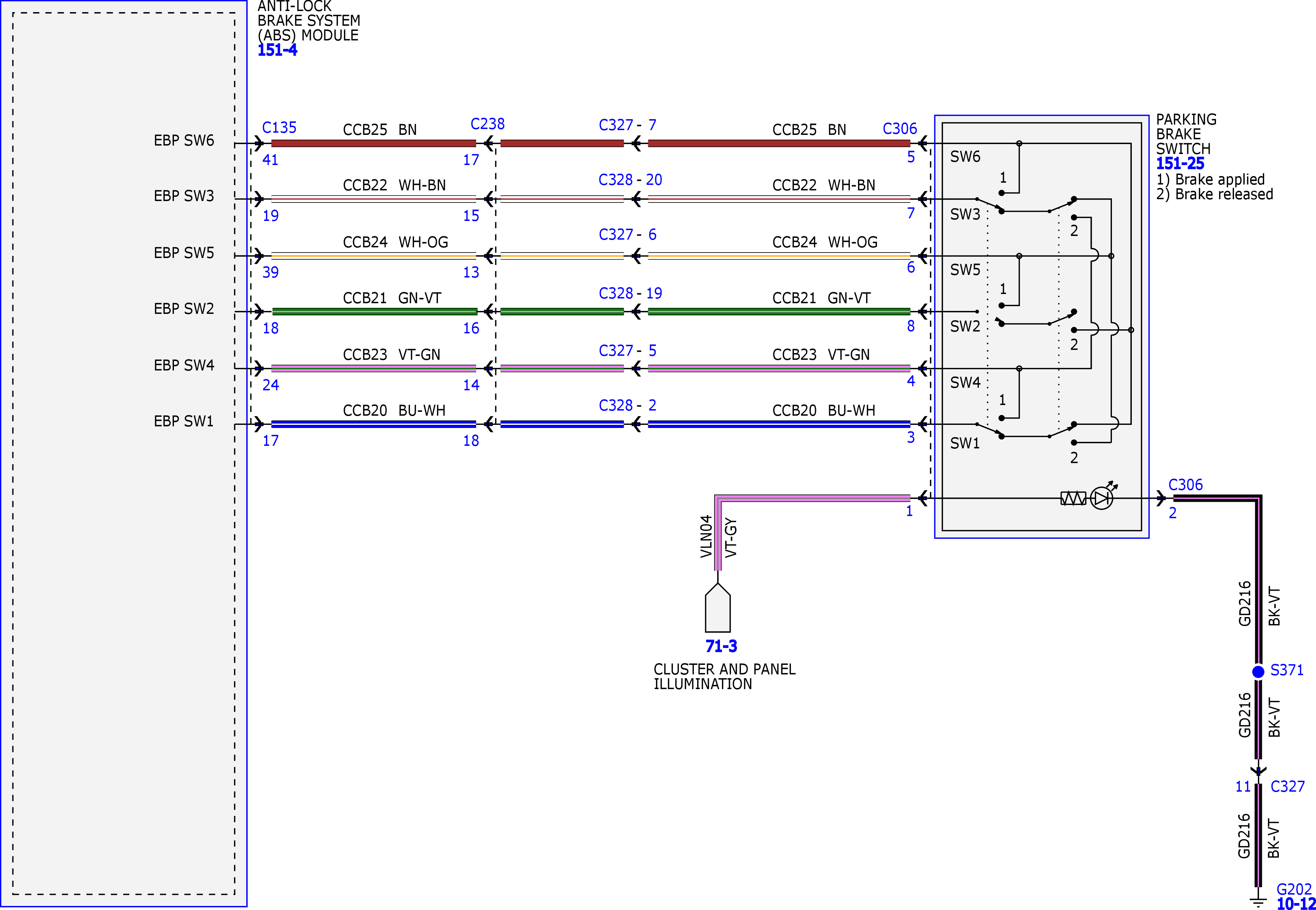

Fig 4: Vehicle Dynamic Systems Wiring Diagrams (4 Of 4)
GFDW5480Courtesy of FORD MOTOR COMPANY
