Parking Aid

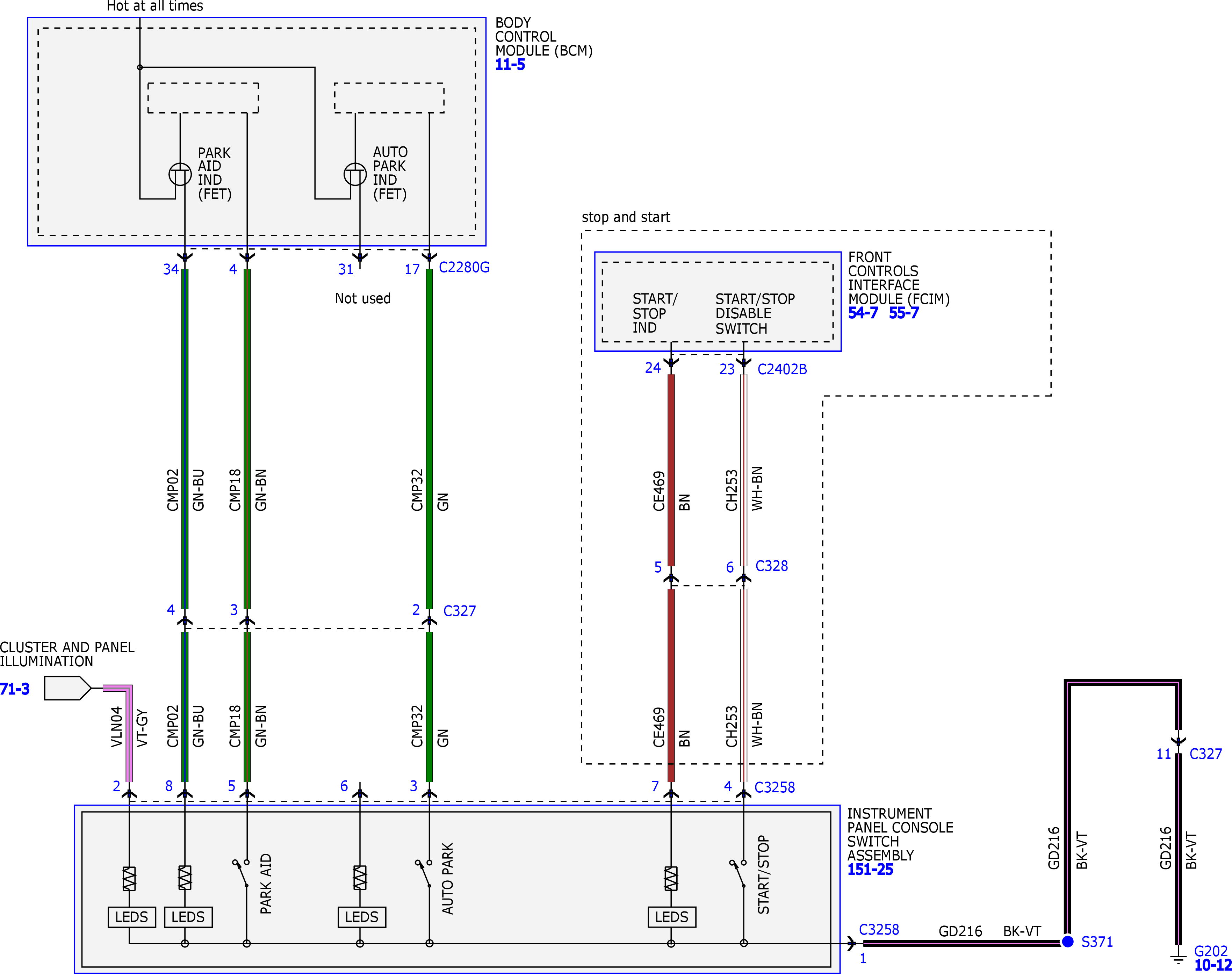

Fig 1: Parking Aid Wiring Diagrams (1 Of 14)

GFDW5520

Courtesy of FORD MOTOR COMPANY

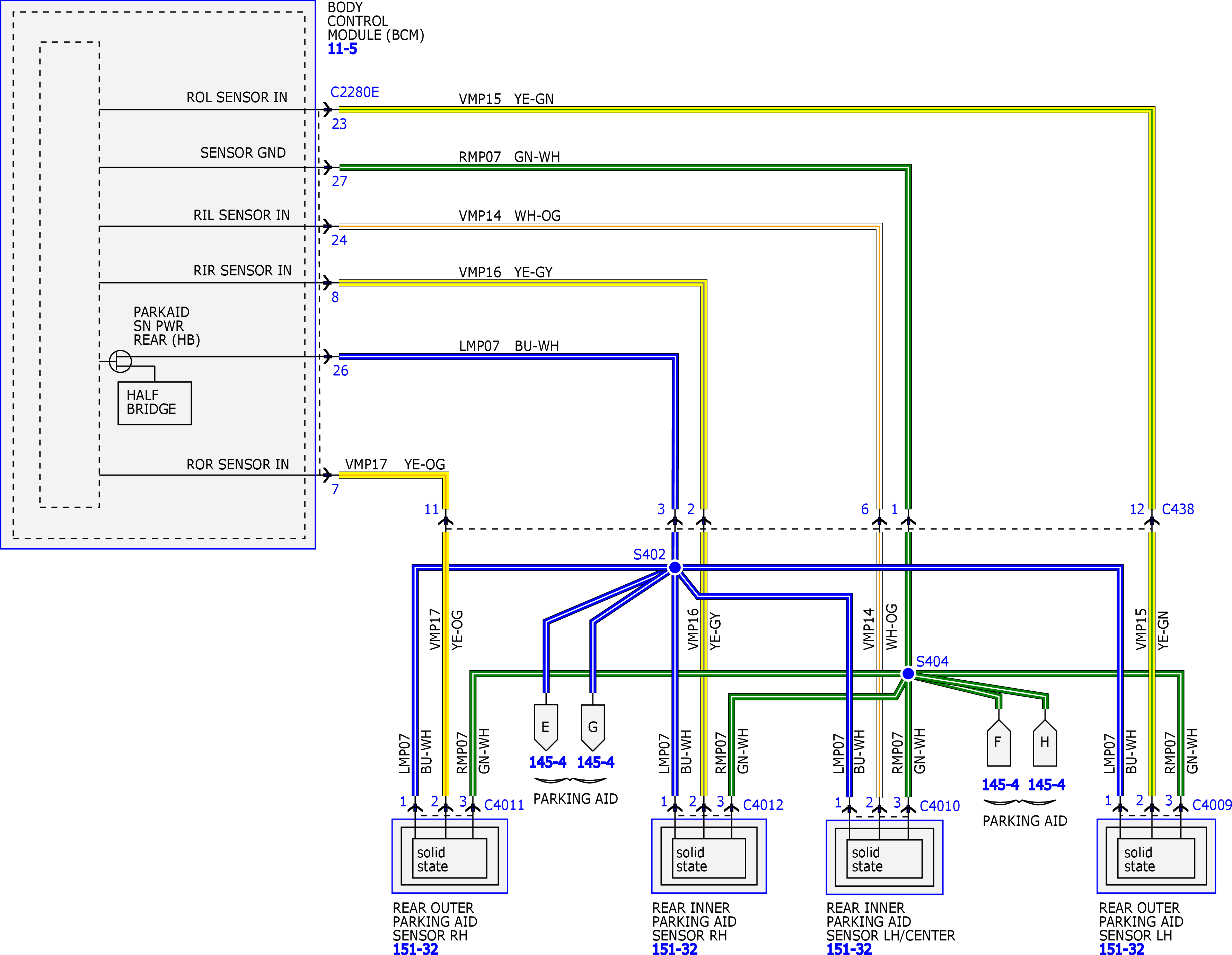

Fig 2: Parking Aid Wiring Diagrams (2 Of 14)

GFDW5521

Courtesy of FORD MOTOR COMPANY

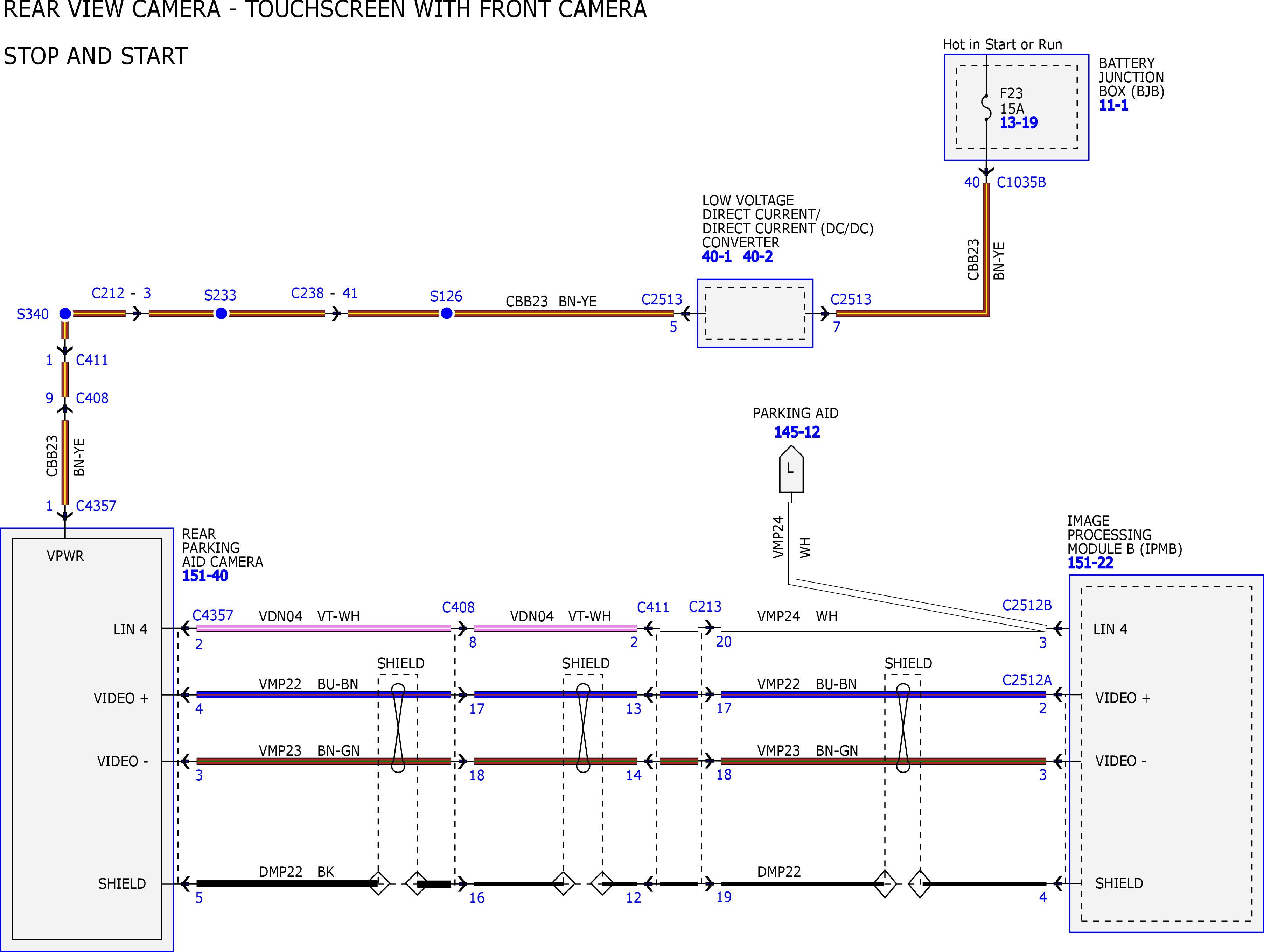

Fig 3: Parking Aid Wiring Diagrams (3 Of 14)

GFDW5522

Courtesy of FORD MOTOR COMPANY

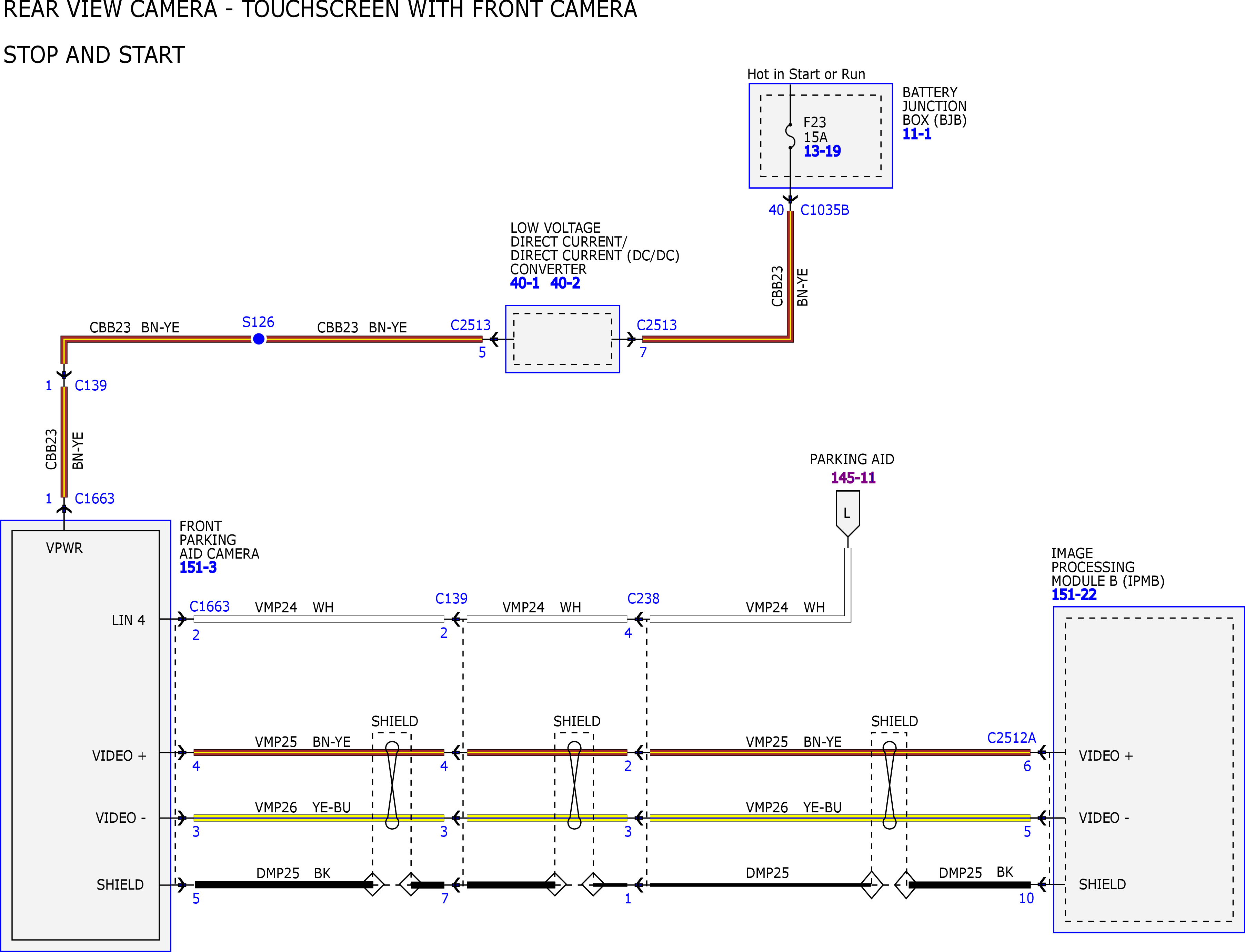

Fig 4: Parking Aid Wiring Diagrams (4 Of 14)

GFDW5523

Courtesy of FORD MOTOR COMPANY

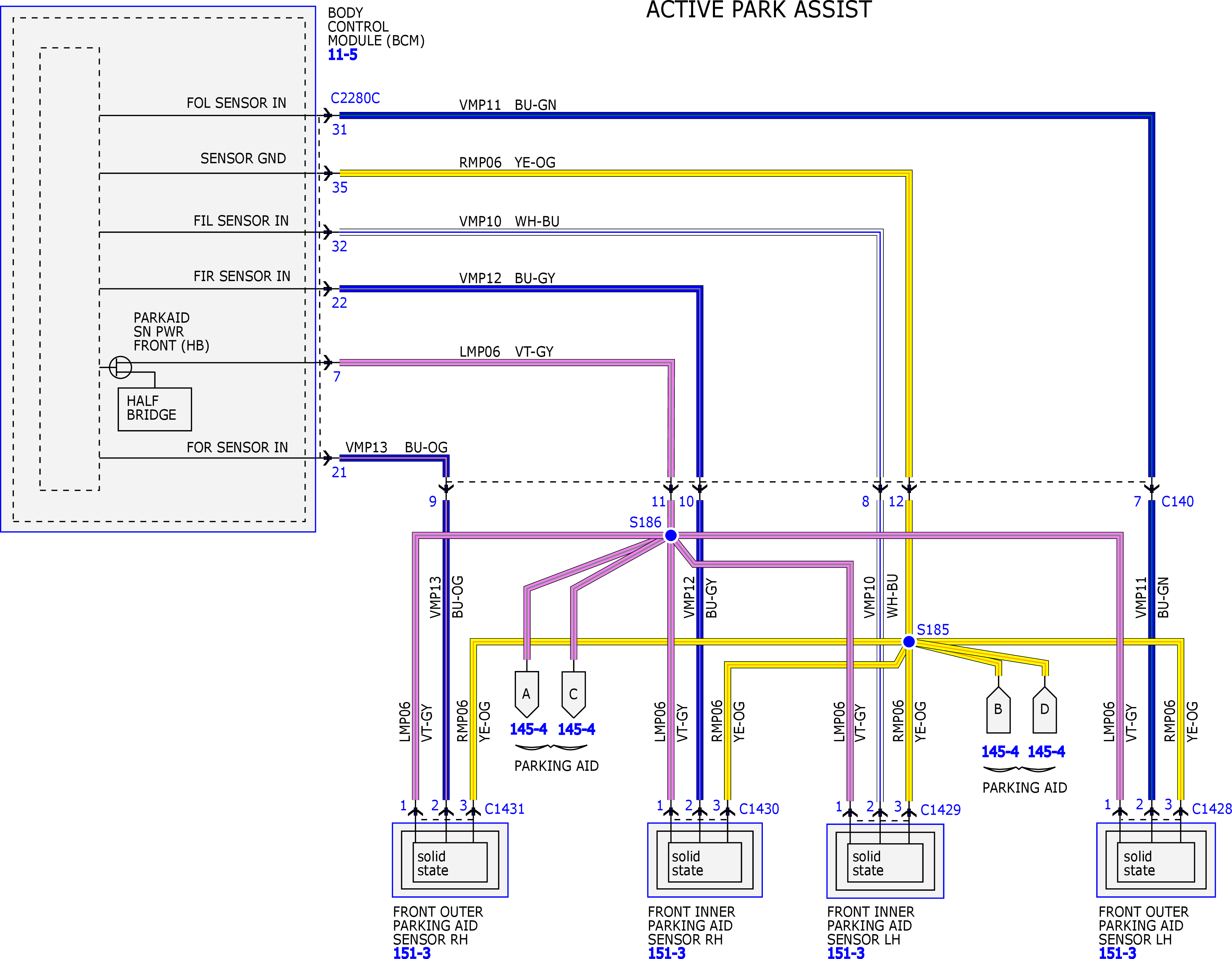

Fig 5: Parking Aid Wiring Diagrams (5 Of 14)

GFDW5524

Courtesy of FORD MOTOR COMPANY

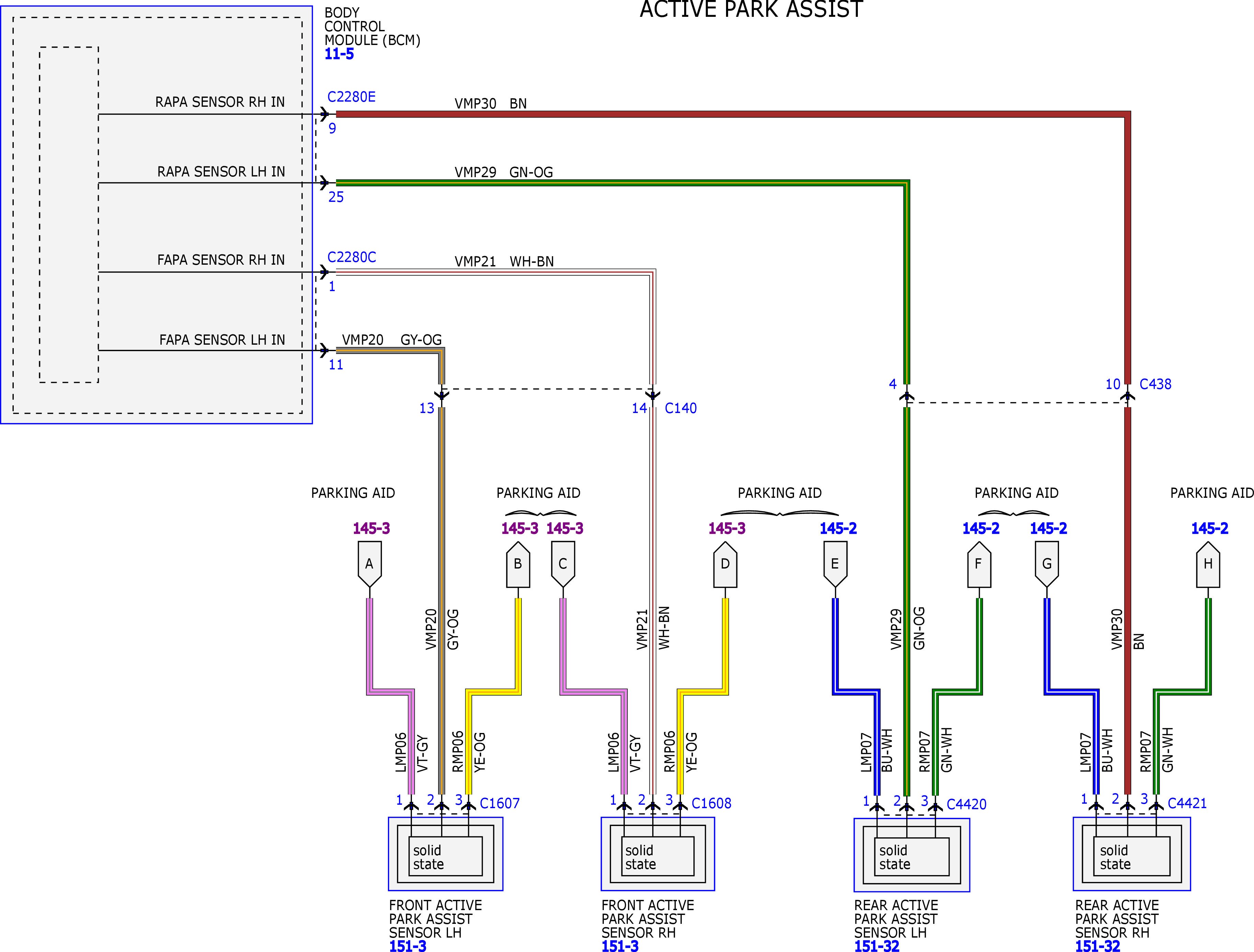

Fig 6: Parking Aid Wiring Diagrams (6 Of 14)

GFDW5525

Courtesy of FORD MOTOR COMPANY

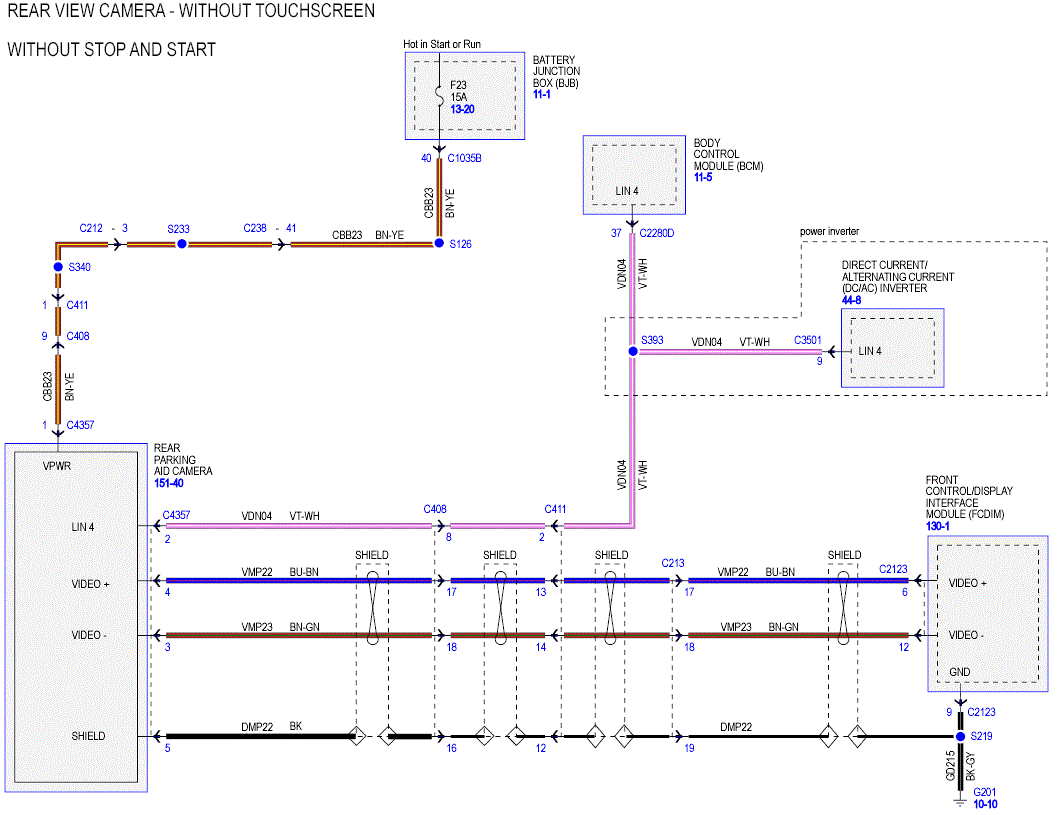

Fig 7: Parking Aid Wiring Diagrams (7 Of 14)

G00566441

Courtesy of FORD MOTOR CO.

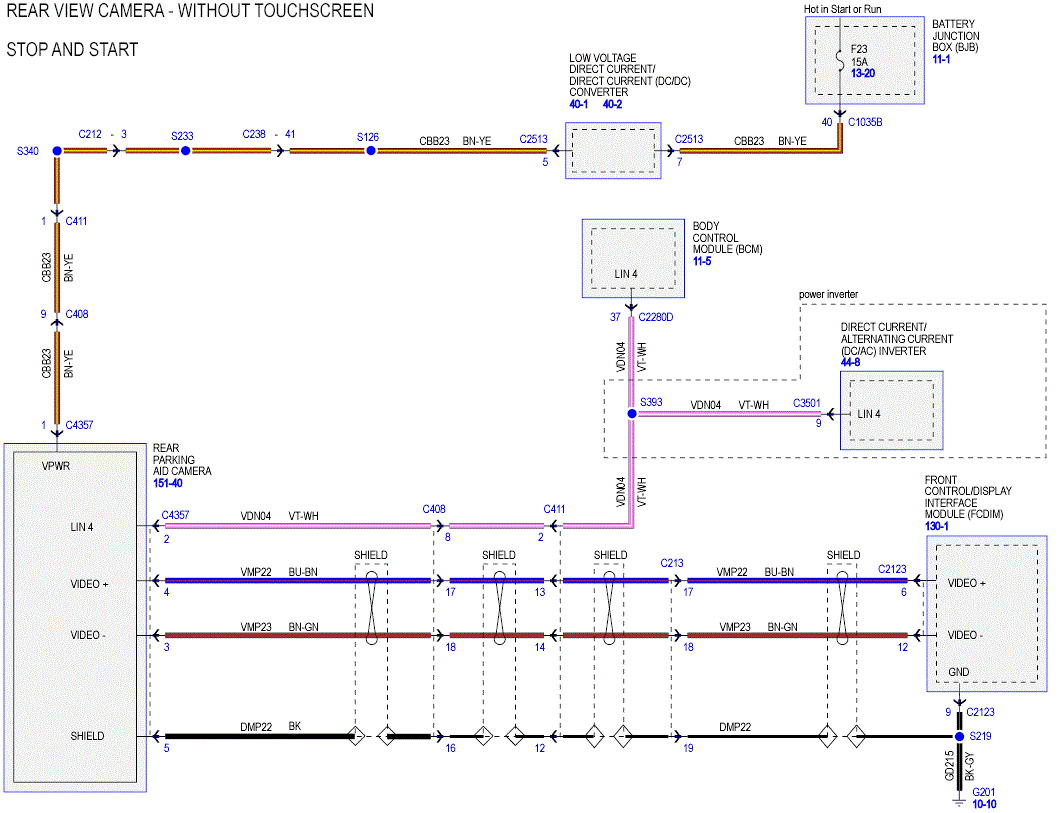

Fig 8: Parking Aid Wiring Diagrams (8 Of 14)

G00566440

Courtesy of FORD MOTOR CO.

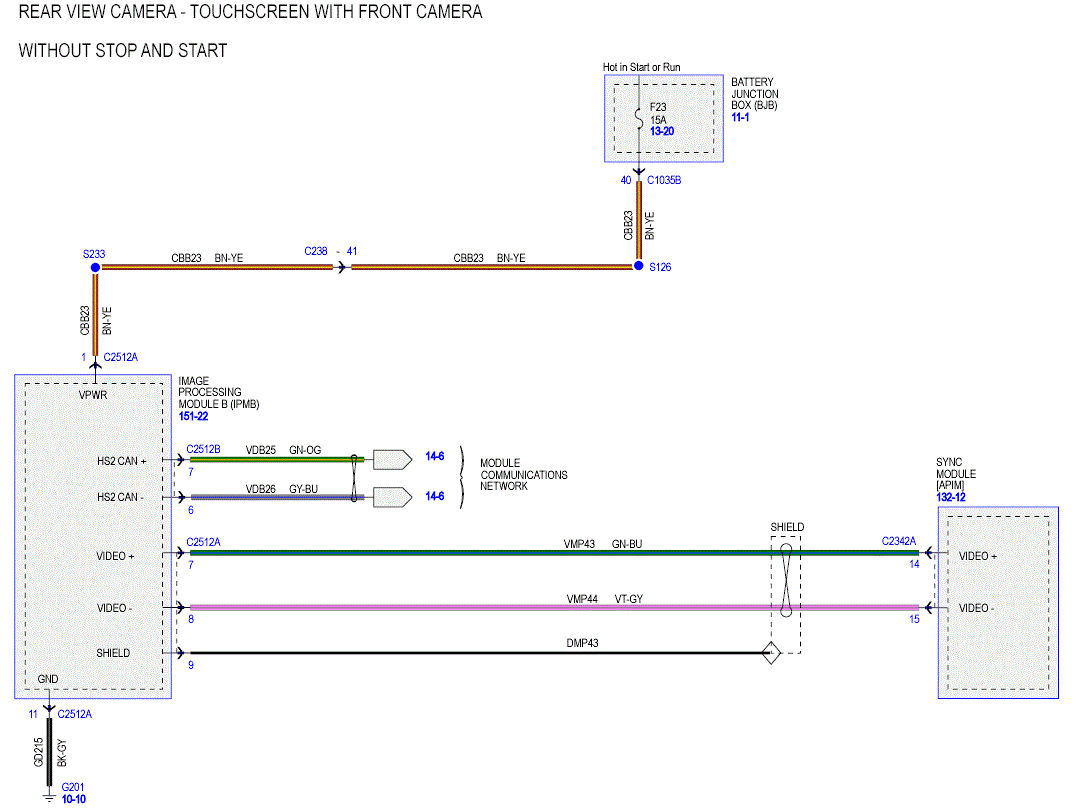

Fig 9: Parking Aid Wiring Diagrams (9 Of 14)

G00566444

Courtesy of FORD MOTOR CO.

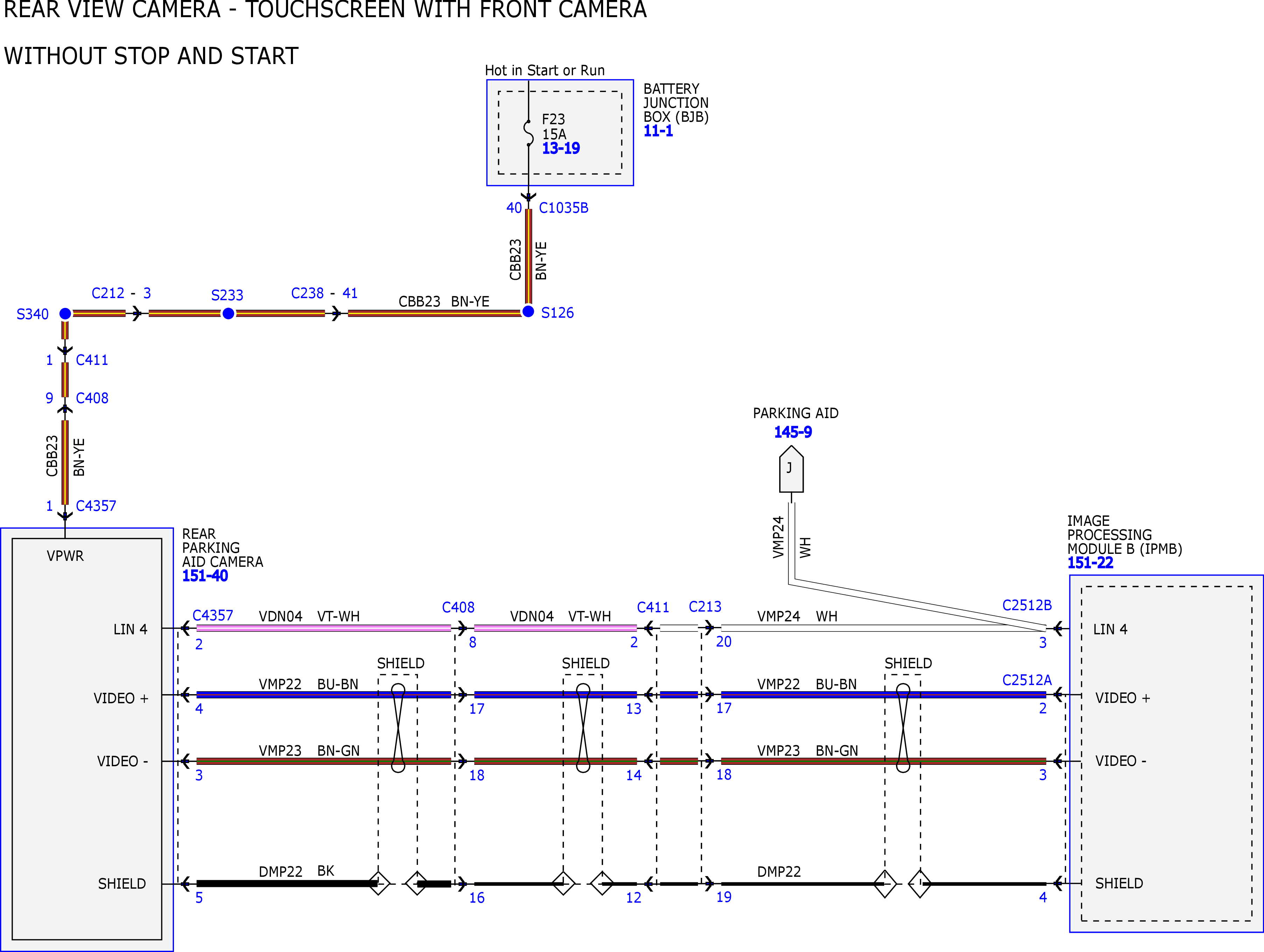

Fig 10: Parking Aid Wiring Diagrams (10 Of 14)

GFDW5529

Courtesy of FORD MOTOR COMPANY

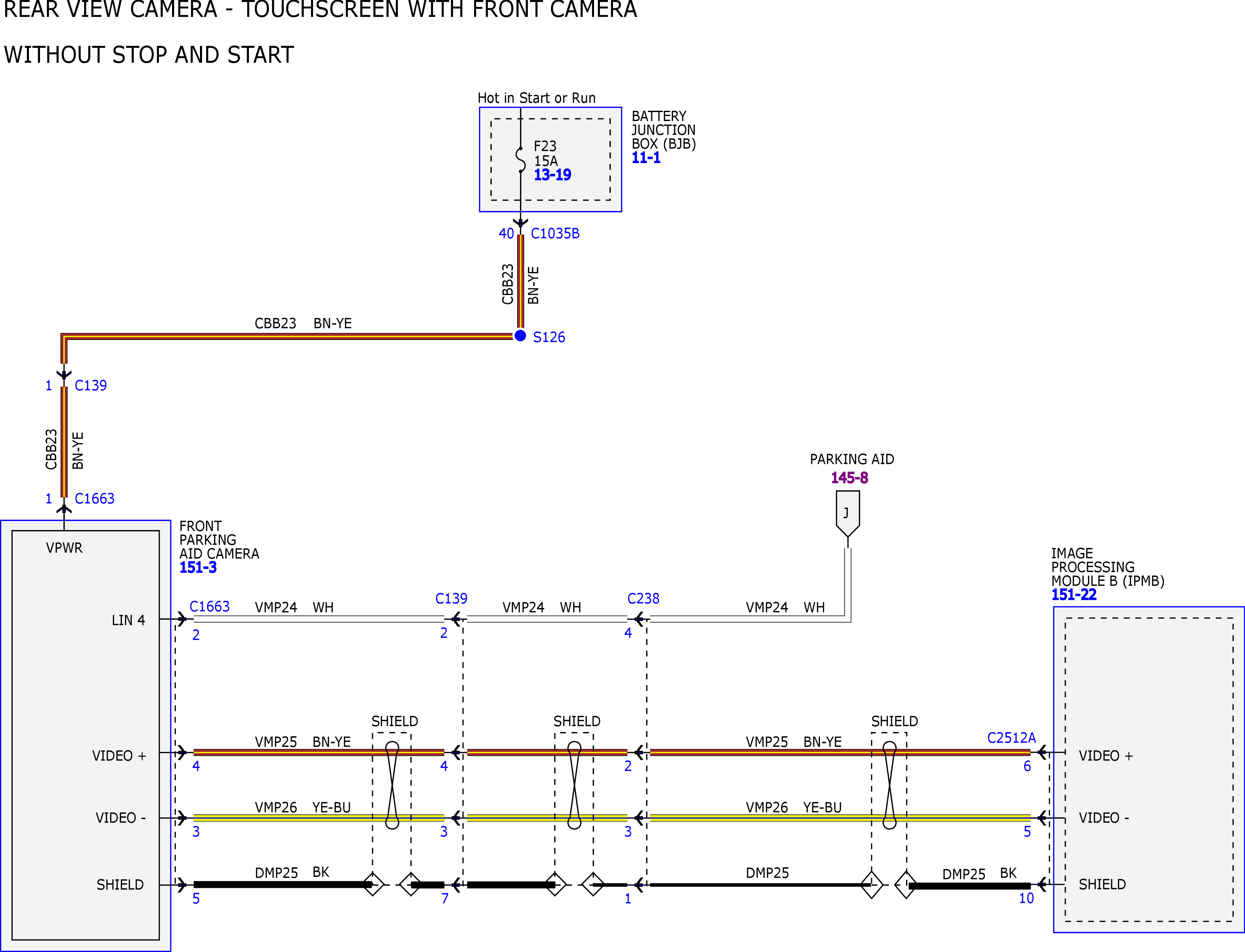

Fig 11: Parking Aid Wiring Diagrams (11 Of 14)

GFDW5530

Courtesy of FORD MOTOR COMPANY

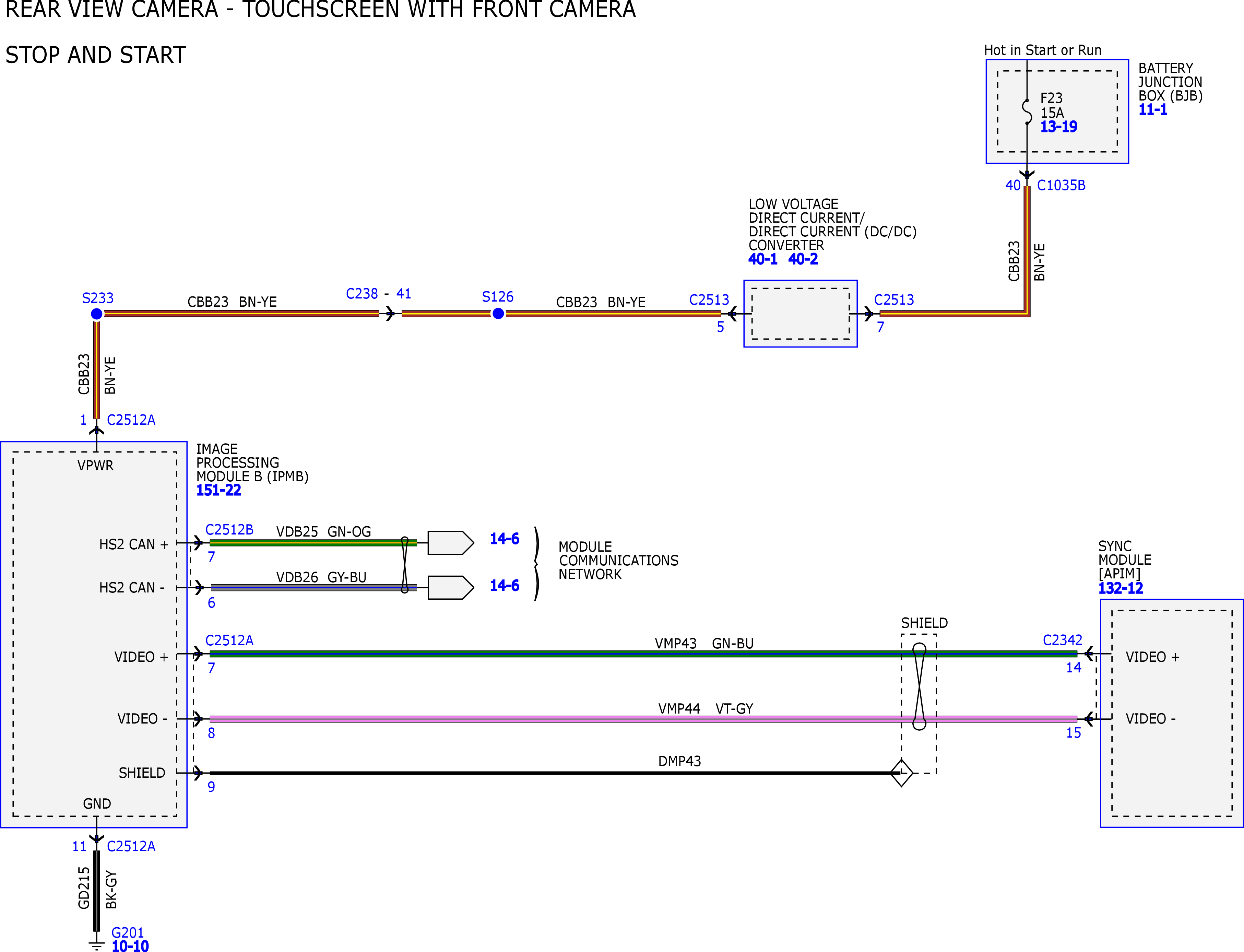

Fig 12: Parking Aid Wiring Diagrams (12 Of 14)

GFDW5531

Courtesy of FORD MOTOR COMPANY

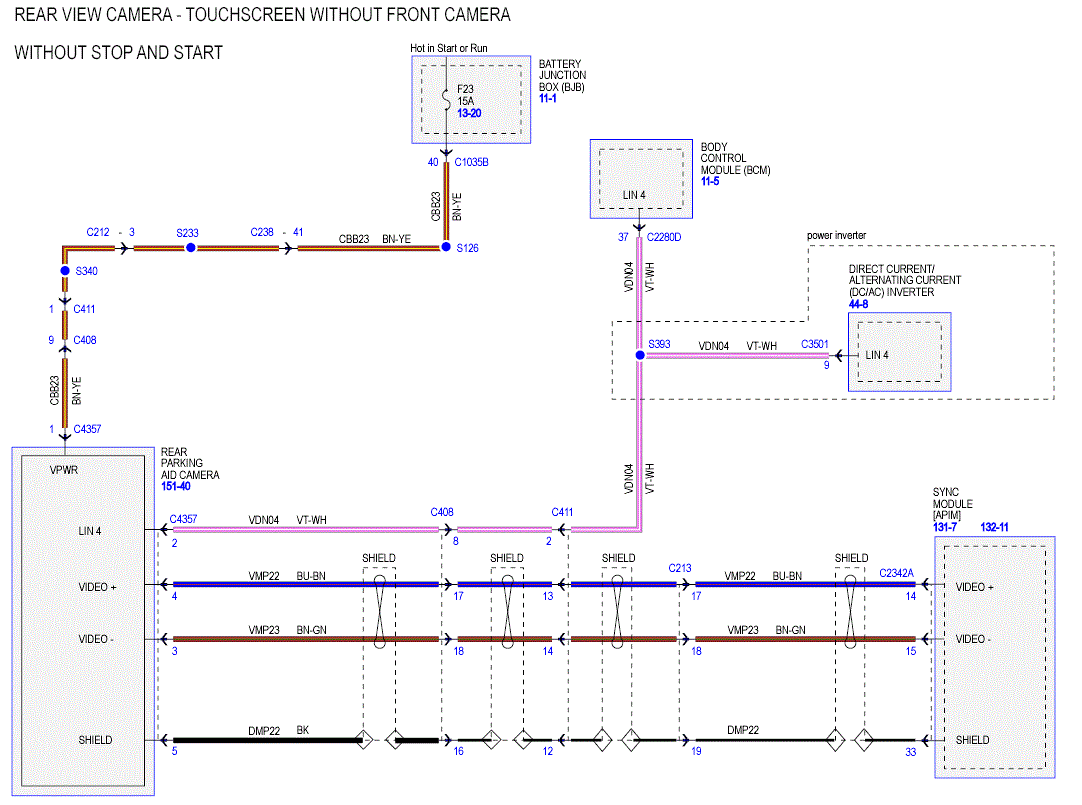

Fig 13: Parking Aid Wiring Diagrams (13 Of 14)

G00566442

Courtesy of FORD MOTOR CO.

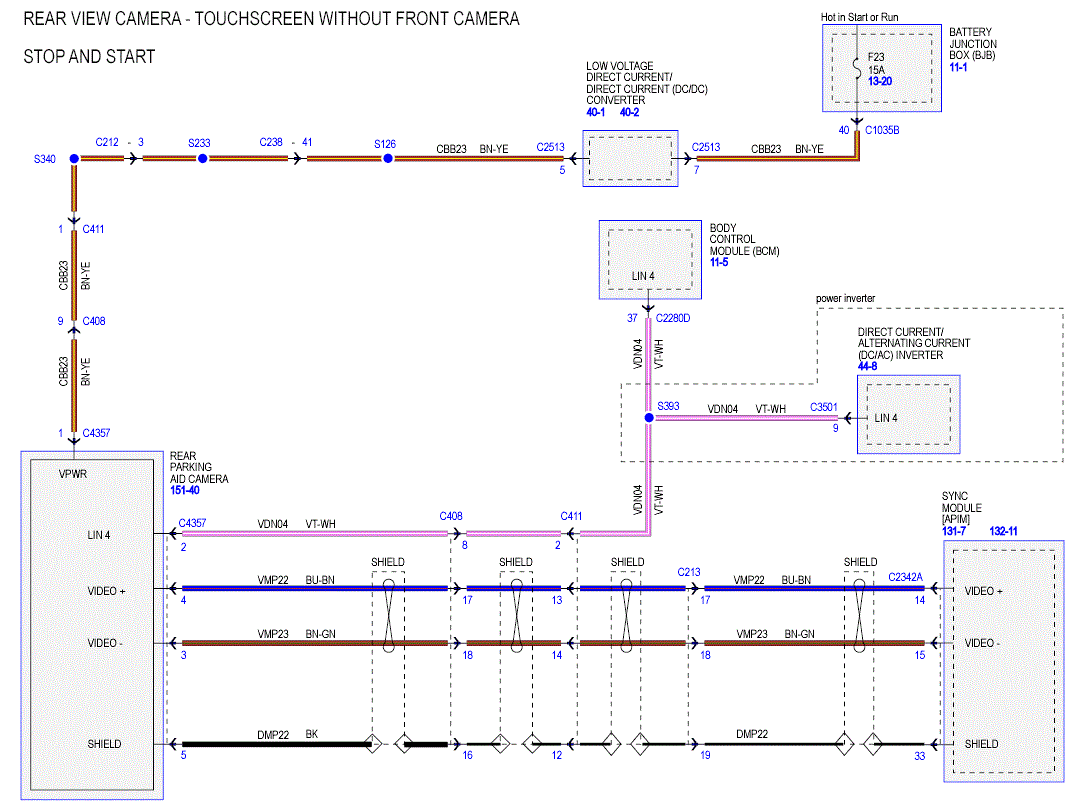

Fig 14: Parking Aid Wiring Diagrams (14 Of 14)

G00566443

Courtesy of FORD MOTOR CO.
