Audio System/Navigation - With Touchscreen/Without SONY

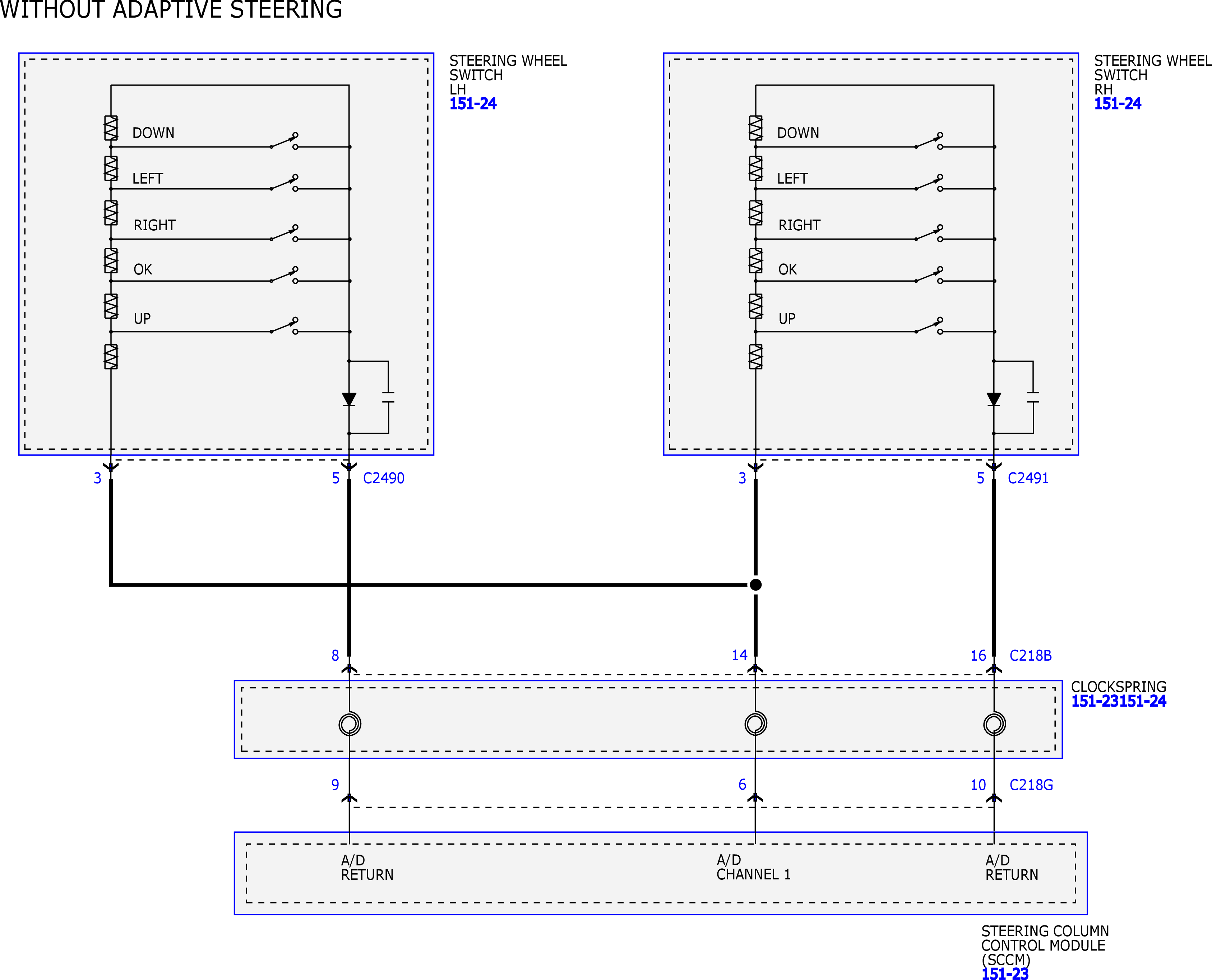

Fig 1: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (1 Of 12)

Courtesy of FORD MOTOR CO.

Fig 2: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (2 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 3: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (3 Of 12)

Courtesy of FORD MOTOR CO.

Fig 4: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (4 Of 12)

Courtesy of FORD MOTOR CO.

Fig 5: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (5 Of 12)

Courtesy of FORD MOTOR CO.

Fig 6: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (6 Of 12)

Courtesy of FORD MOTOR CO.

Fig 7: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (7 Of 12)

Courtesy of FORD MOTOR CO.

Fig 8: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (8 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (9 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (10 Of 12)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (11 Of 12)

Courtesy of FORD MOTOR CO.

Fig 12: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagrams (12 Of 12)

Courtesy of FORD MOTOR CO.
