Adjustable Steering Column

Fig 1: Adjustable Steering Column Wiring Diagrams (1 Of 4)
GFDW5459Courtesy of FORD MOTOR COMPANY
Fig 2: Adjustable Steering Column Wiring Diagrams (2 Of 4)
GFDW5460Courtesy of FORD MOTOR COMPANY

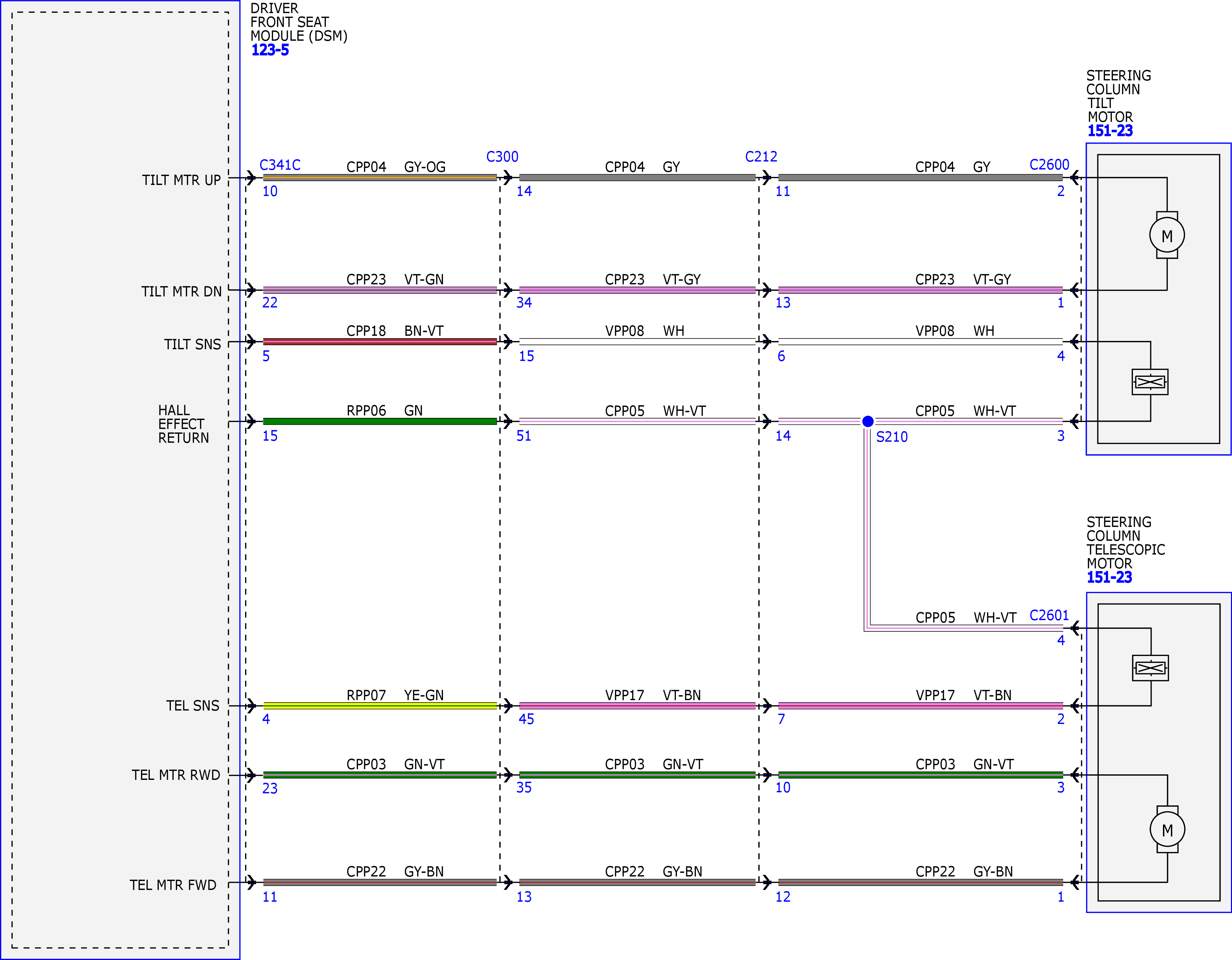

Fig 3: Adjustable Steering Column Wiring Diagrams (3 Of 4)
GFDW5461Courtesy of FORD MOTOR COMPANY
Fig 4: Adjustable Steering Column Wiring Diagrams (4 Of 4)
GFDW5462Courtesy of FORD MOTOR COMPANY
