Connector End View (C4512) - SECOND ROW SEAT CONTROL SWITCH LH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CPSD6 (VT-GY)

20

CTRL MOD. - SECOND ROW MOTOR RH

2

CPS58 (WH-BN)

20

RELAY - 2ND ROW SEAT RELEASE ENABLE

3

*

*

Not Used

4

*

*

Not Used

5

CPSD2 (VT-GN)

20

CTRL MOD. - SECOND ROW MOTOR LH

6

*

*

Not Used

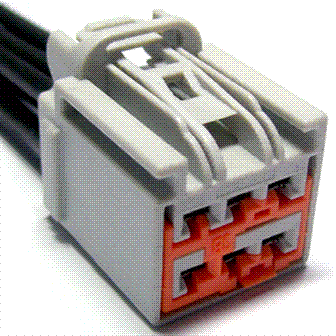

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1019

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-XVB

Gauge:

12

Pin material:

Tin

Cavities:

6

Vehicle Uses

Junction Box - Relay

Switch - Adjustable Pedal

Switch - Moon Roof/Sun Roof

Switch - Power Window - Driver

Switch - Power Window - LH - Rear

Switch - Power Window - Passenger (Front)

Switch - Power Window - Quarter Glass

Switch - Power Window - RH - Rear

Switch - Seat Passenger Side (2nd Row)

Switch - Third Row Power Folding Seat
