Brake Vacuum Pump - 2.0L EcoBoost (184kW/250PS) - MI4: Installation

• 1.

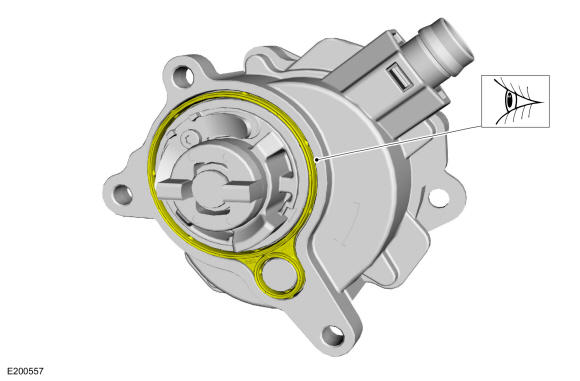

  Inspect the gasket and install a new gasket as necessary.

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

  To install, reverse the removal procedure.
