Brake Booster: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the battery tray. Refer to: Battery Tray .

2.

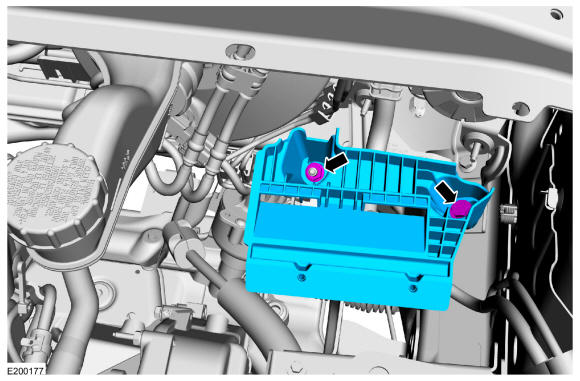

Remove the nut, bolt and the battery tray support bracket.
Torque: 18 lb.ft (24 Nm)

GFD18978

Courtesy of FORD MOTOR COMPANY

3.

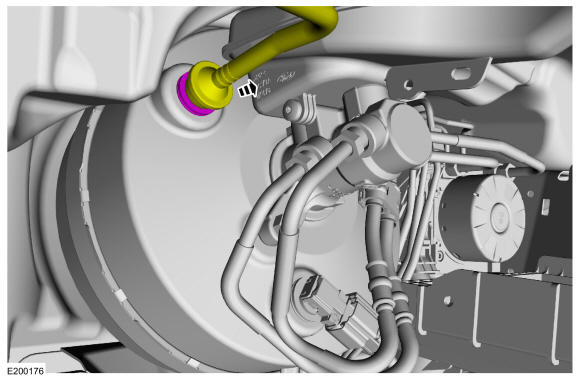

Detach the check valve from the brake booster.

GFD18979

Courtesy of FORD MOTOR COMPANY

4.

Disconnect the brake fluid level sensor and detach the wiring retainer.

GFD18969

Courtesy of FORD MOTOR COMPANY

5.

NOTE: Make sure that the master cylinder-to-booster seal is removed with the master cylinder.

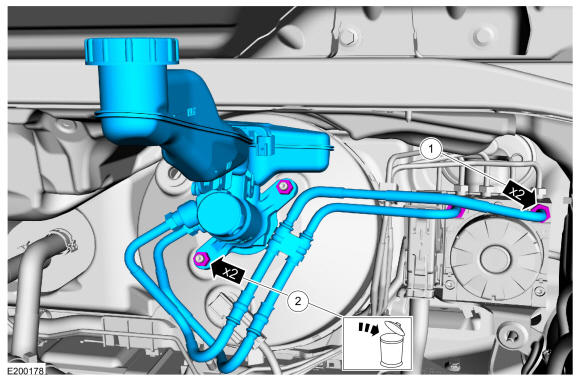

Disconnect the brake tube fittings, remove the nuts and remove the brake master cylinder and brake tubes as an assembly. Discard the nuts and O-ring seal.

Torque:

1.: 21 lb.ft (28 Nm)

2.: 18 lb.ft (25 Nm)

GFD18980

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch .

7.

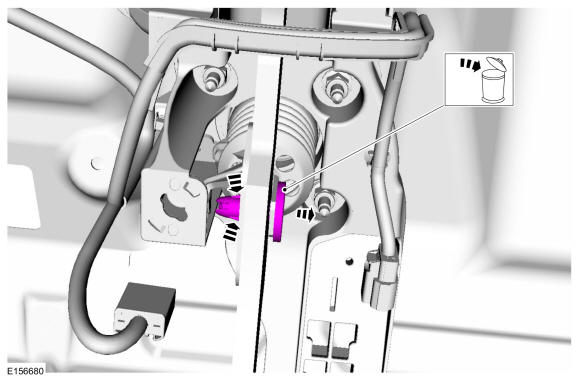

Compress the tabs and remove the clevis pin. Discard the pin.

GFD18975

Courtesy of FORD MOTOR COMPANY

8.

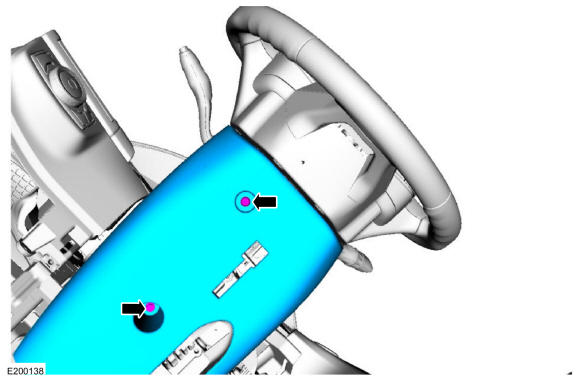

Remove the screws and the lower steering column shroud.

GFD18973

Courtesy of FORD MOTOR COMPANY

9.

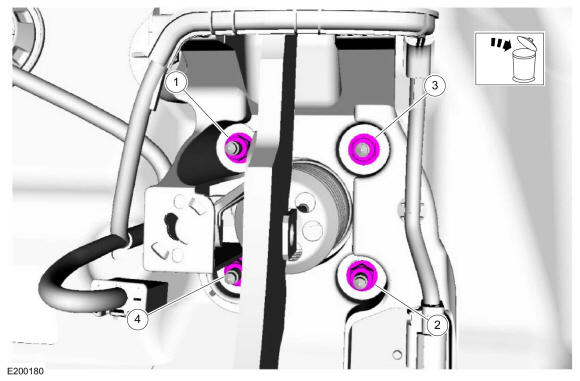

Remove and discard the nuts.
Torque: 17 lb.ft (23 Nm)

GFD18981

Courtesy of FORD MOTOR COMPANY

10.

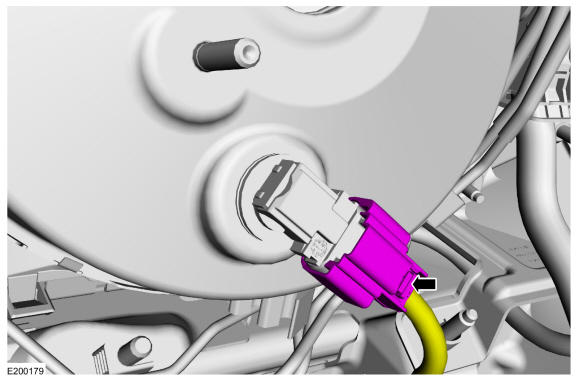

Disconnect the brake booster vacuum sensor electrical connector.

GFD18982

Courtesy of FORD MOTOR COMPANY

11.

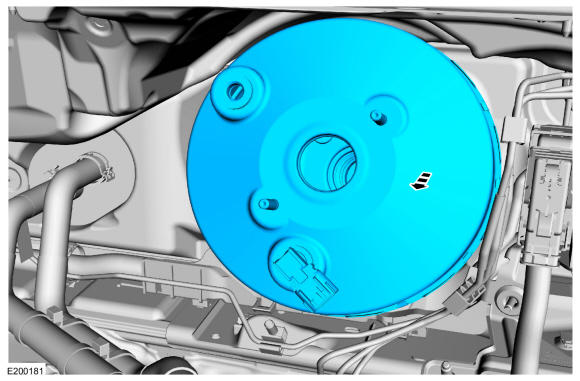

Remove the brake booster.

GFD18983

Courtesy of FORD MOTOR COMPANY
