Parking Lamps, Rear Lamps And License Lamps

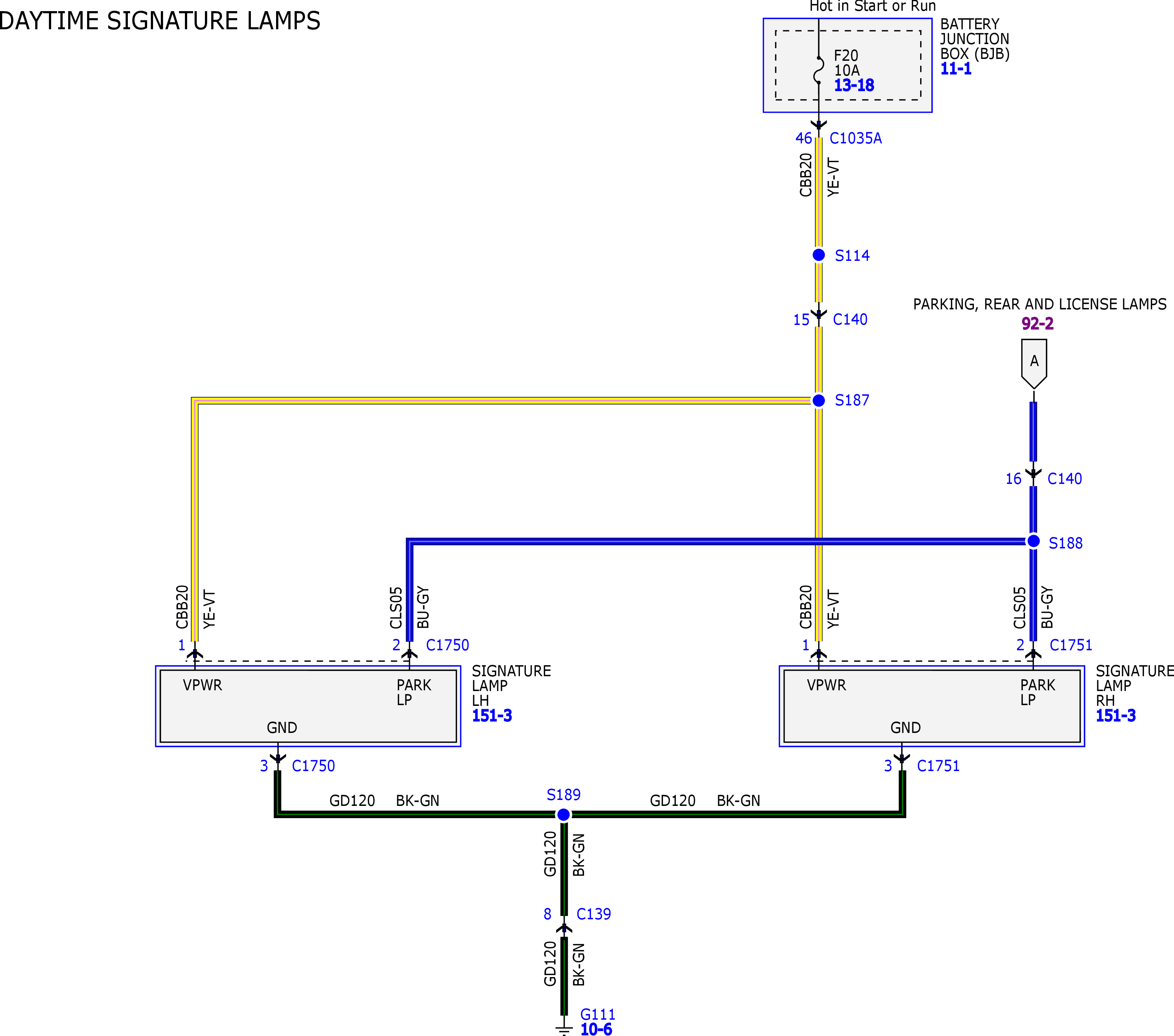

Fig 1: Parking Lamps, Rear Lamps and License Lamps Wiring Diagrams (1 Of 4)

Courtesy of FORD MOTOR COMPANY

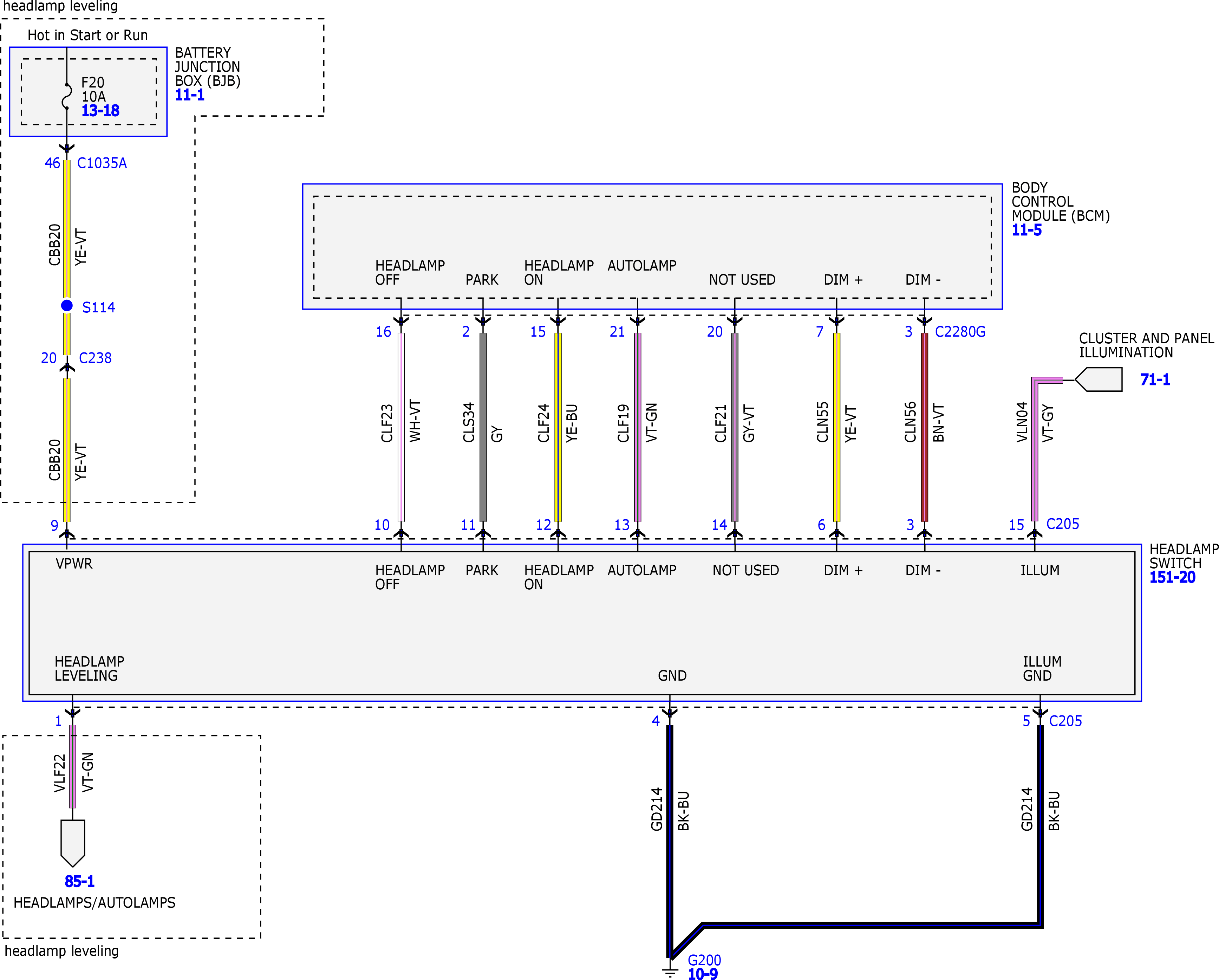

Fig 2: Parking Lamps, Rear Lamps and License Lamps Wiring Diagrams (2 Of 4)

Courtesy of FORD MOTOR COMPANY

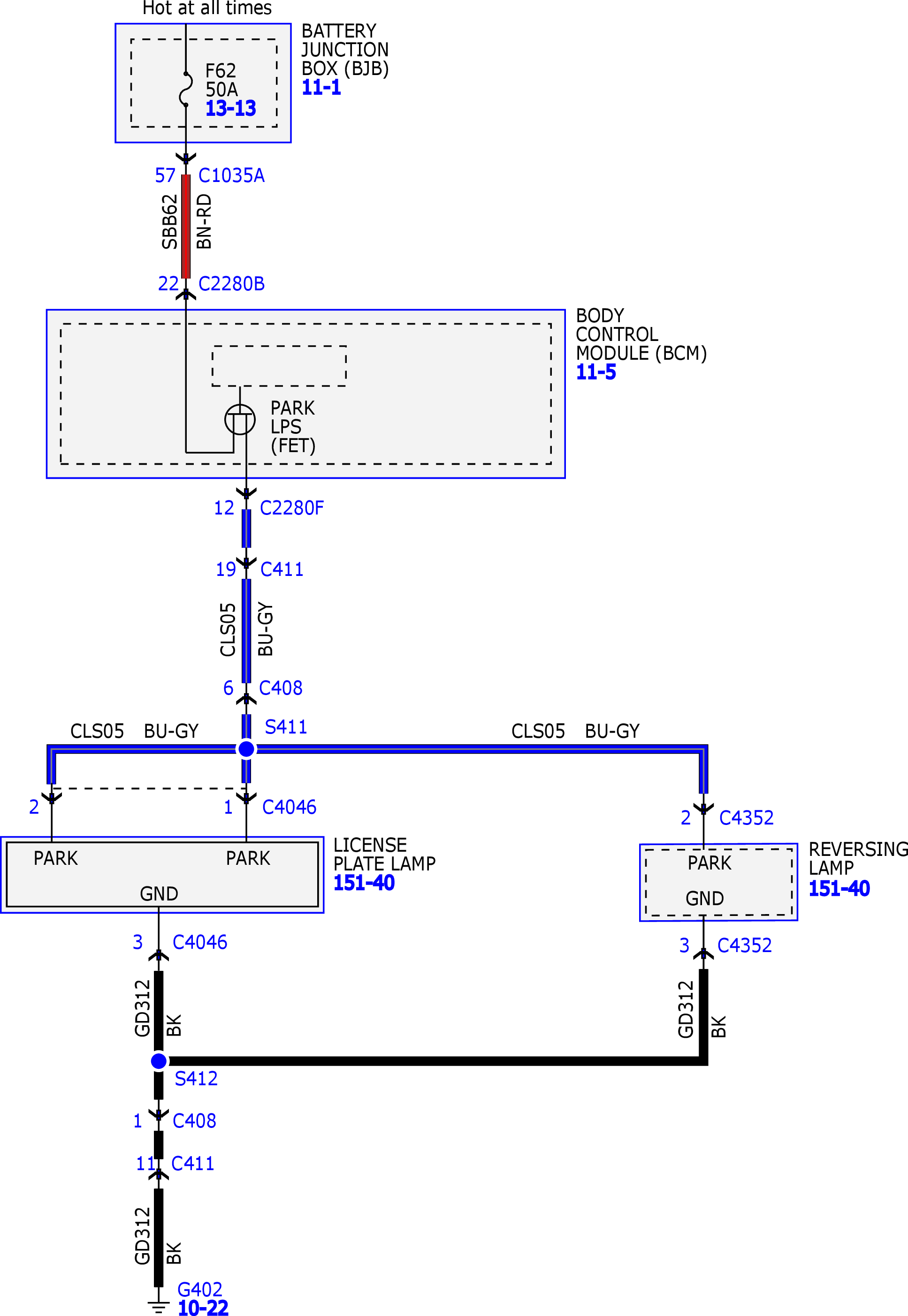

Fig 3: Parking Lamps, Rear Lamps and License Lamps Wiring Diagrams (3 Of 4)

Courtesy of FORD MOTOR COMPANY

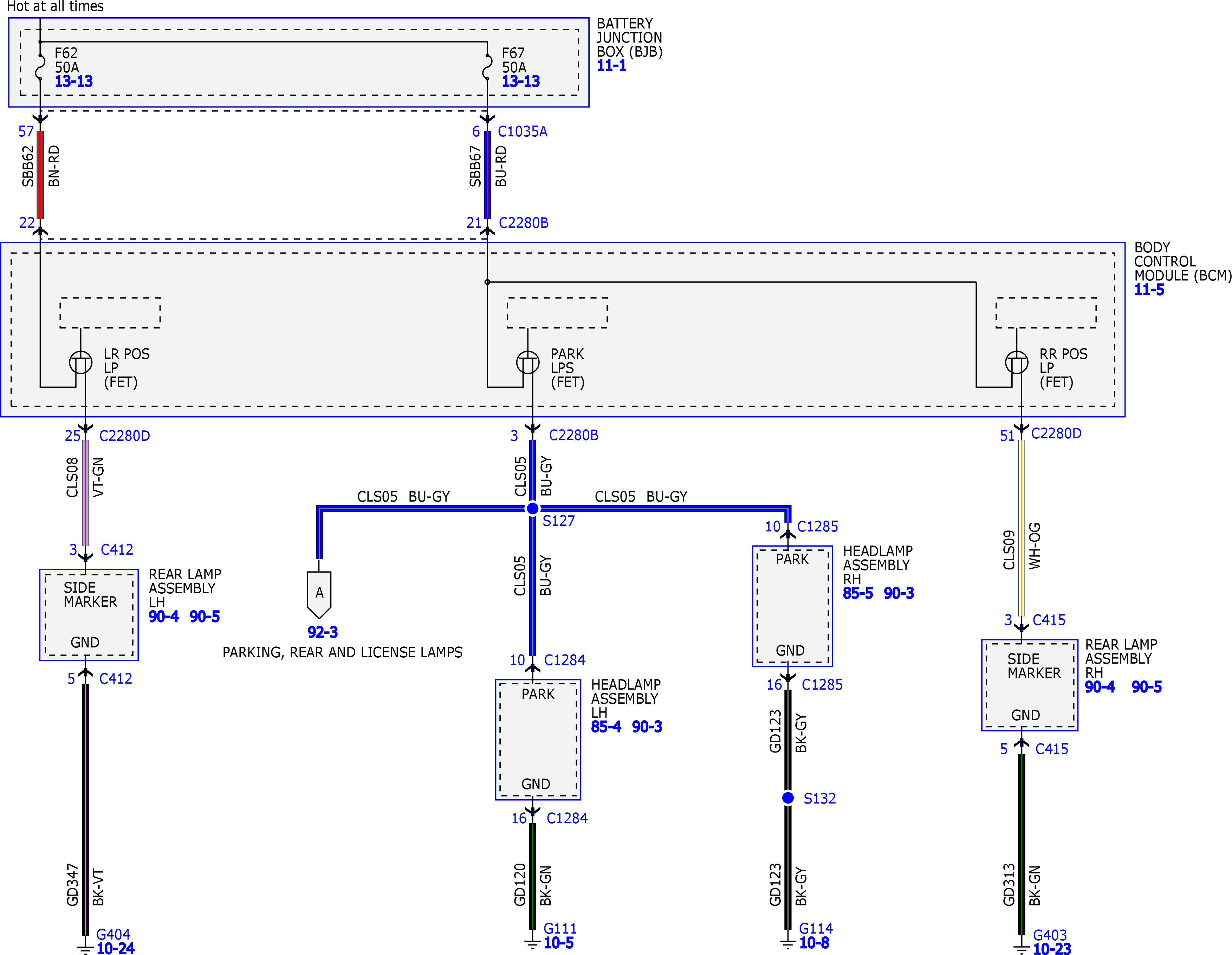

Fig 4: Parking Lamps, Rear Lamps and License Lamps Wiring Diagrams (4 Of 4)

Courtesy of FORD MOTOR COMPANY
