Connector End View (C4321) - PASSIVE ANTI-THEFT SYSTEM (PATS) REAR ANTENNA
Connector: C4321
Description
PASSIVE ANTI-THEFT SYSTEM (PATS) REAR ANTENNA
Color
BK
Harness
17N400
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VPK06 (GY-VT) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + |
|
|
2 |
RPK06 (BU-WH) |
22 |
CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) - |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|

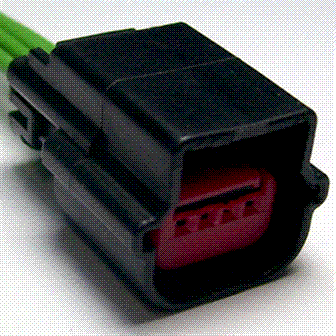

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1307 |
Service Part Number: CU2Z-14S411-AGA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Antenna - Keyless Entry Sensor - Brake Pedal Position Sensor - Clutch Master Cylinder |
