Connector End View (C3065) - FRONT SAFETY BELT ANCHOR PRETENSIONER LH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR120 (BU-OG)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE +

2

RR120 (BN-GN)

22

CTRL MOD. - SEAT BELT PRETENSIONER FRONT DRIVER SIDE -

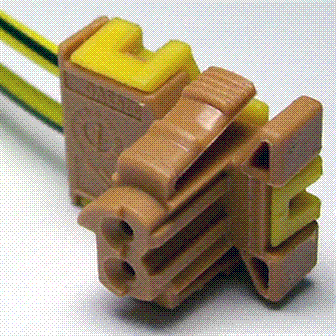

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1222

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BEA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Pretensioner - Seat Belt (Driver)

Squib - Airbag (Passenger)
