Home >> Ford >> 2016 >> Edge SE, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts >> Component Location Charts >> C1694 (3.5L) On Engine, Top, RH Side

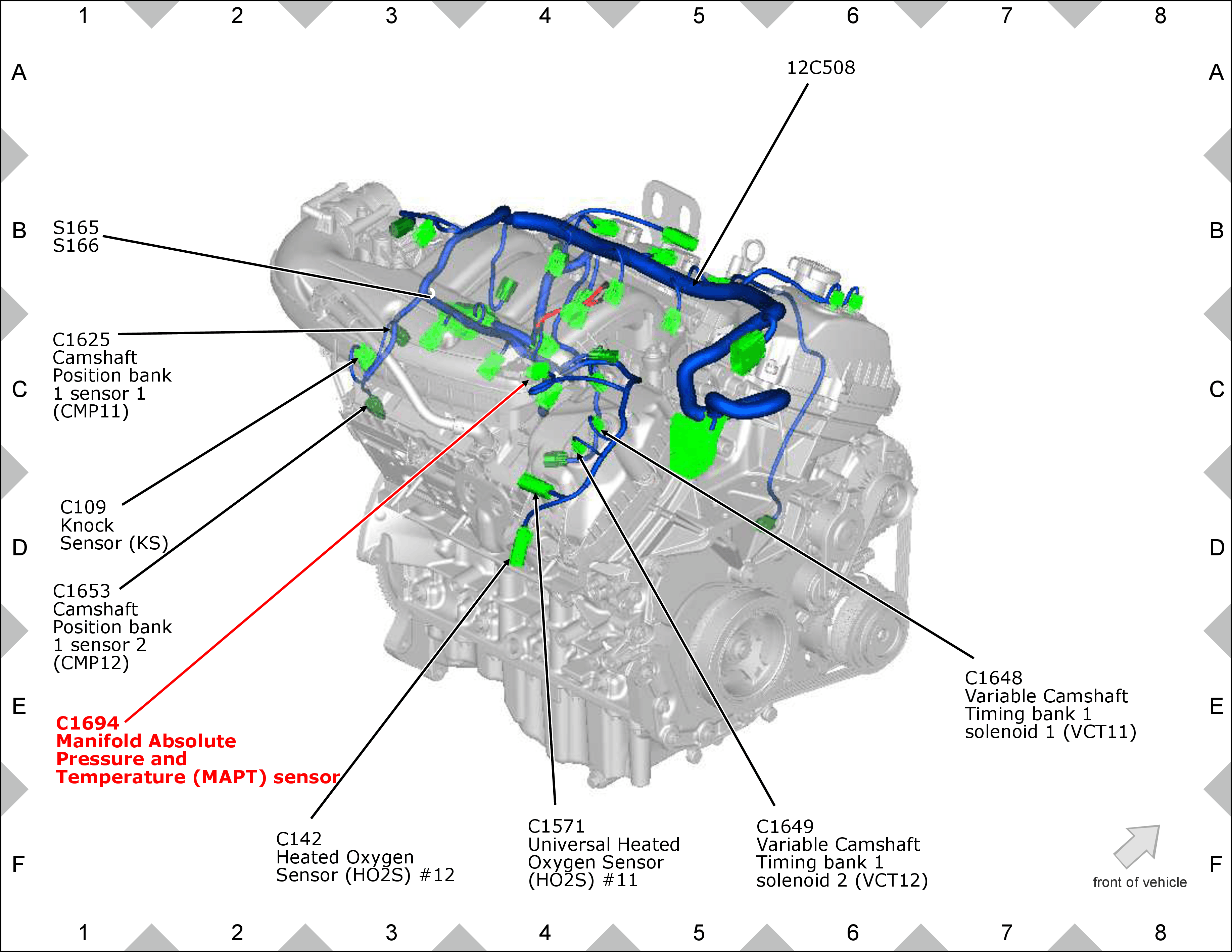

C1694 (3.5L) On Engine, Top, RH Side

GFDW4983

Courtesy of FORD MOTOR COMPANY
