Cooling Fan Motor and Shroud: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Drain the cooling system. Refer to: Cooling System Draining and Vacuum Filling .
- 2.NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.
- Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
- After all of the grommets have been released from the studs, remove the appearance cover from the engine.
- 3.
Remove the air cleaner. Refer to: Air Cleaner .
- 4.

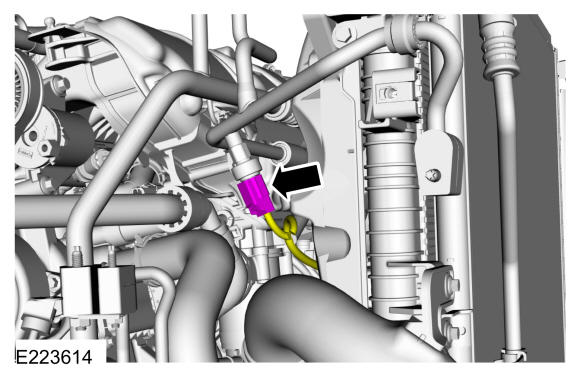

- Disconnect the electrical connectors.
- Release the clamp and disconnect the upper radiator hose.
Use the General Equipment: Hose Clamp Remover/Installer
- 5.
Remove the charge air cooler intake pipe. Refer to: CHARGE AIR COOLER (CAC) CLEANING - 2.0L EcoBoost (184kW/250PS) - MI4.

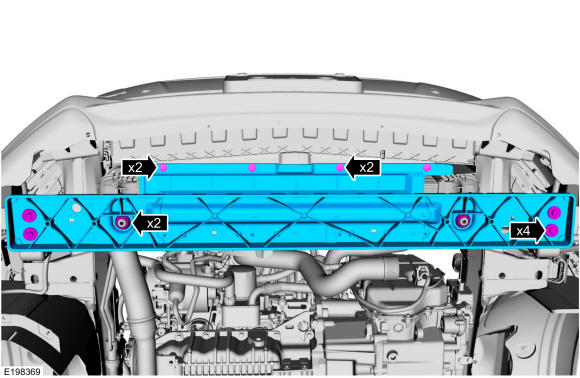

- 8.

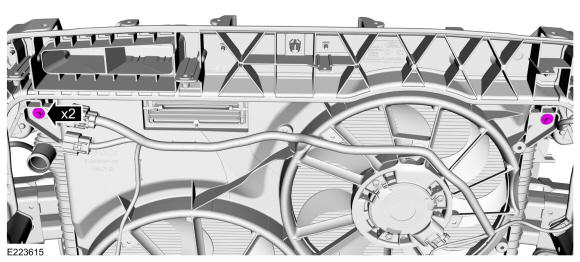

- 1.
Remove the radiator guide pins.
- 2.

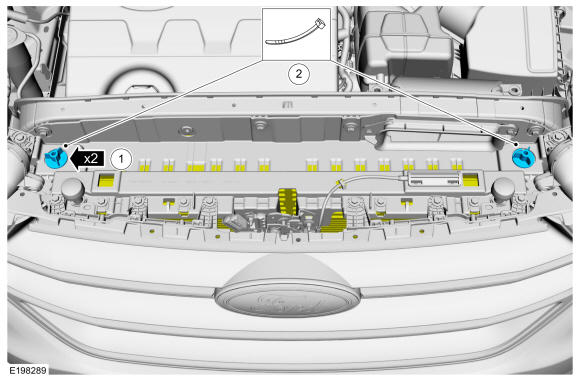

Using cable ties loosely support the cooling module.Use the General Equipment: Cable Ties

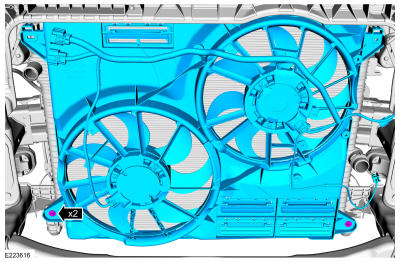

- 1.
