Coolant Pump: Installation

1.

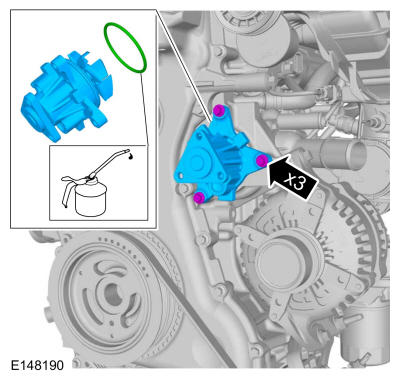

Lubricate the O-ring seal with clean engine coolant. Install the coolant pump and the bolts.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant (U.S.) / VC-3-B (U.S.) (WSS-M97B44-D)

Torque: 89 lb.in (10 Nm)

GFD19374

Courtesy of FORD MOTOR COMPANY

2.

Position the coolant pump pulley and install the bolts finger tight.

GFD19372

Courtesy of FORD MOTOR COMPANY

3.

Remove the waterproof plastic from the A/C belt.

4.

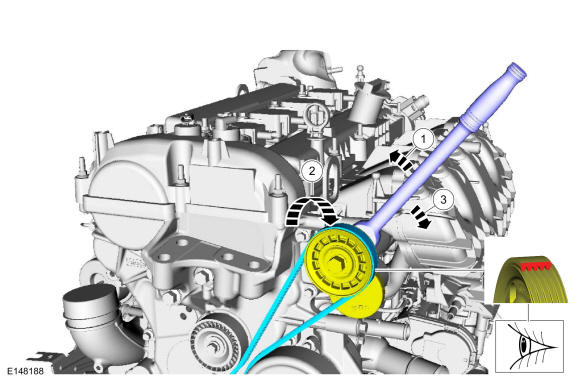

Rotate the accessory drive belt tensioner and install the accessory drive belt.

GFD19375

Courtesy of FORD MOTOR COMPANY

5.

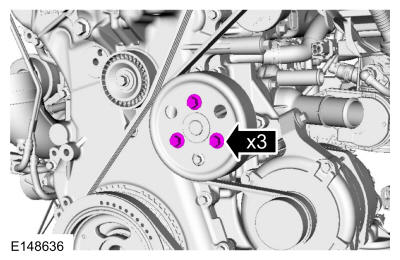

Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)

GFD19376

Courtesy of FORD MOTOR COMPANY

6.
1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

  Lubricate each grommet with silicone grease.

  Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.

G00566499

Courtesy of FORD MOTOR CO.

7.

Fill and bleed the cooling system. Refer to: Cooling System Draining and Vacuum Filling .
