Turn Signal Lamps/Stop Lamps/Hazard Lamps

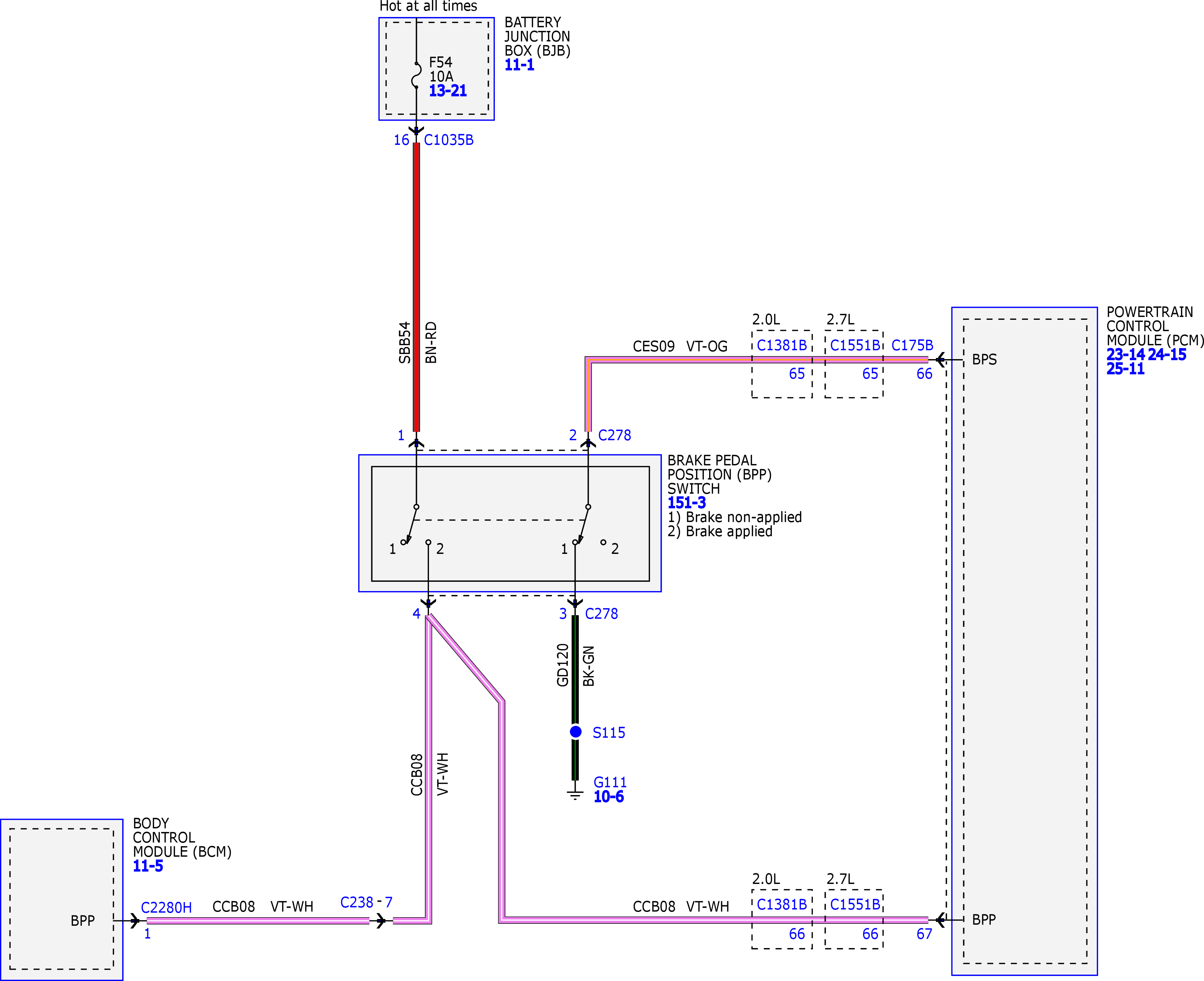

Fig 1: Turn Signal Lamps/Stop Lamps/Hazard Lamps Wiring Diagrams (1 Of 6)

Courtesy of FORD MOTOR COMPANY

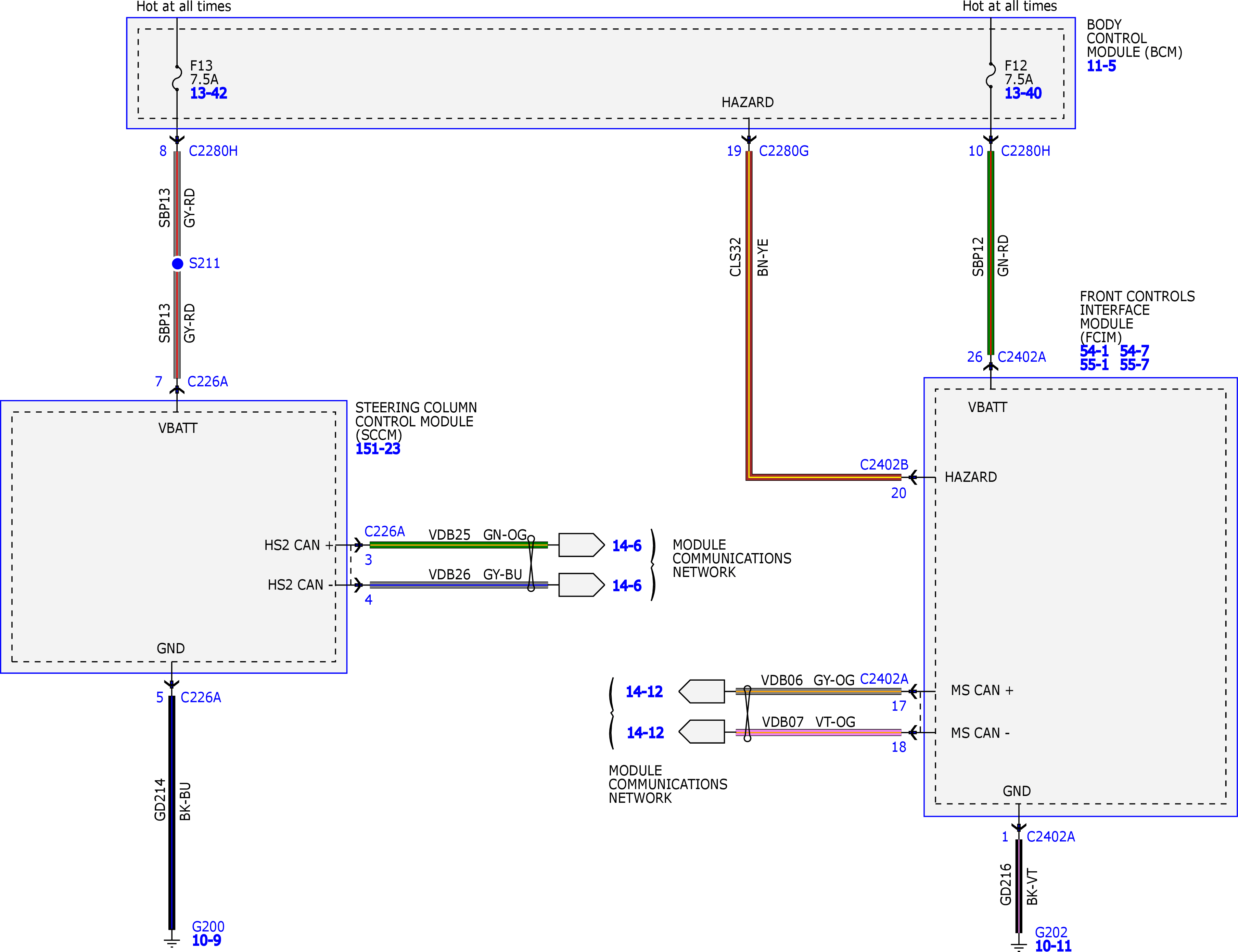

Fig 2: Turn Signal Lamps/Stop Lamps/Hazard Lamps Wiring Diagrams (2 Of 6)

Courtesy of FORD MOTOR COMPANY

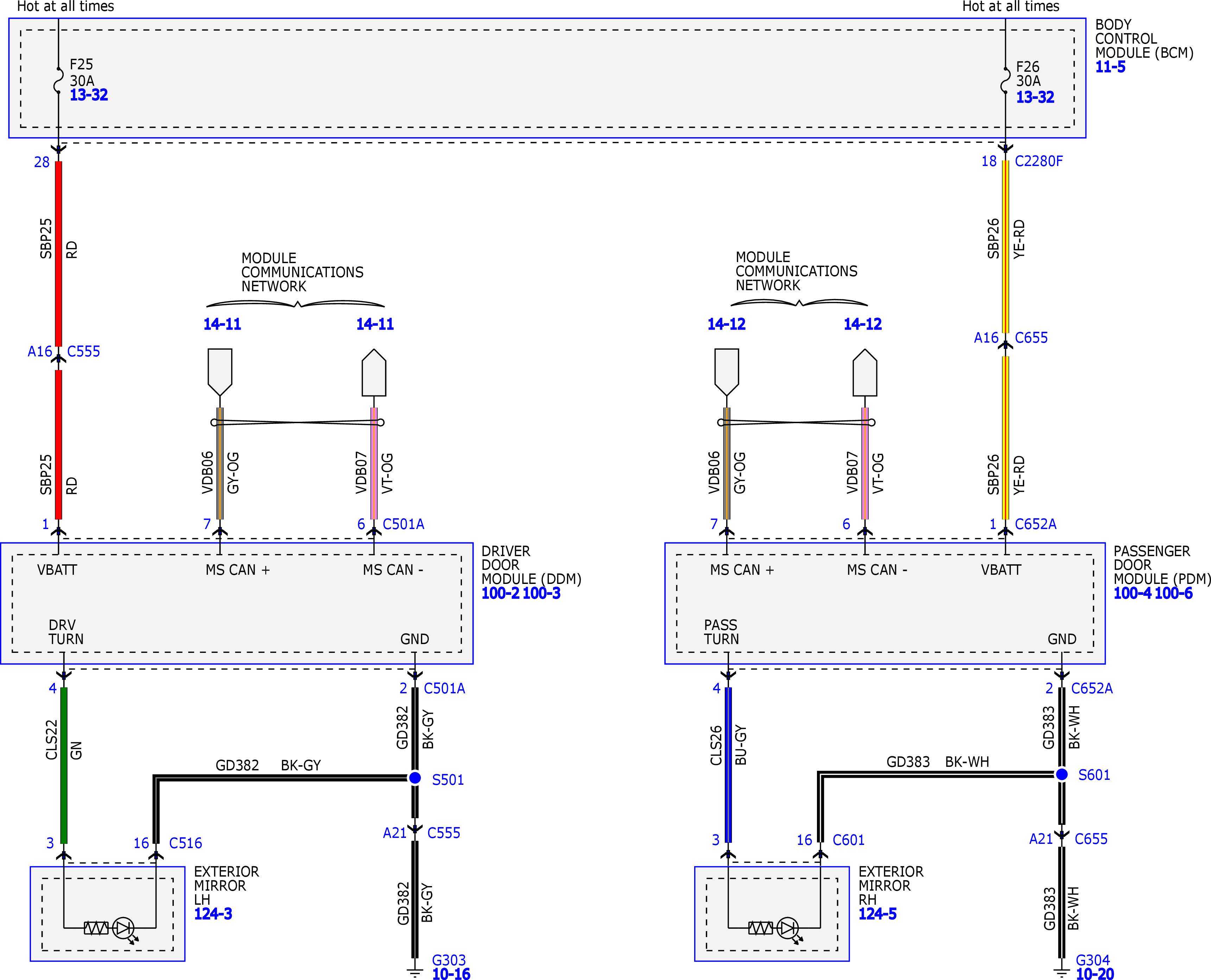

Fig 3: Turn Signal Lamps/Stop Lamps/Hazard Lamps Wiring Diagrams (3 Of 6)

Courtesy of FORD MOTOR COMPANY

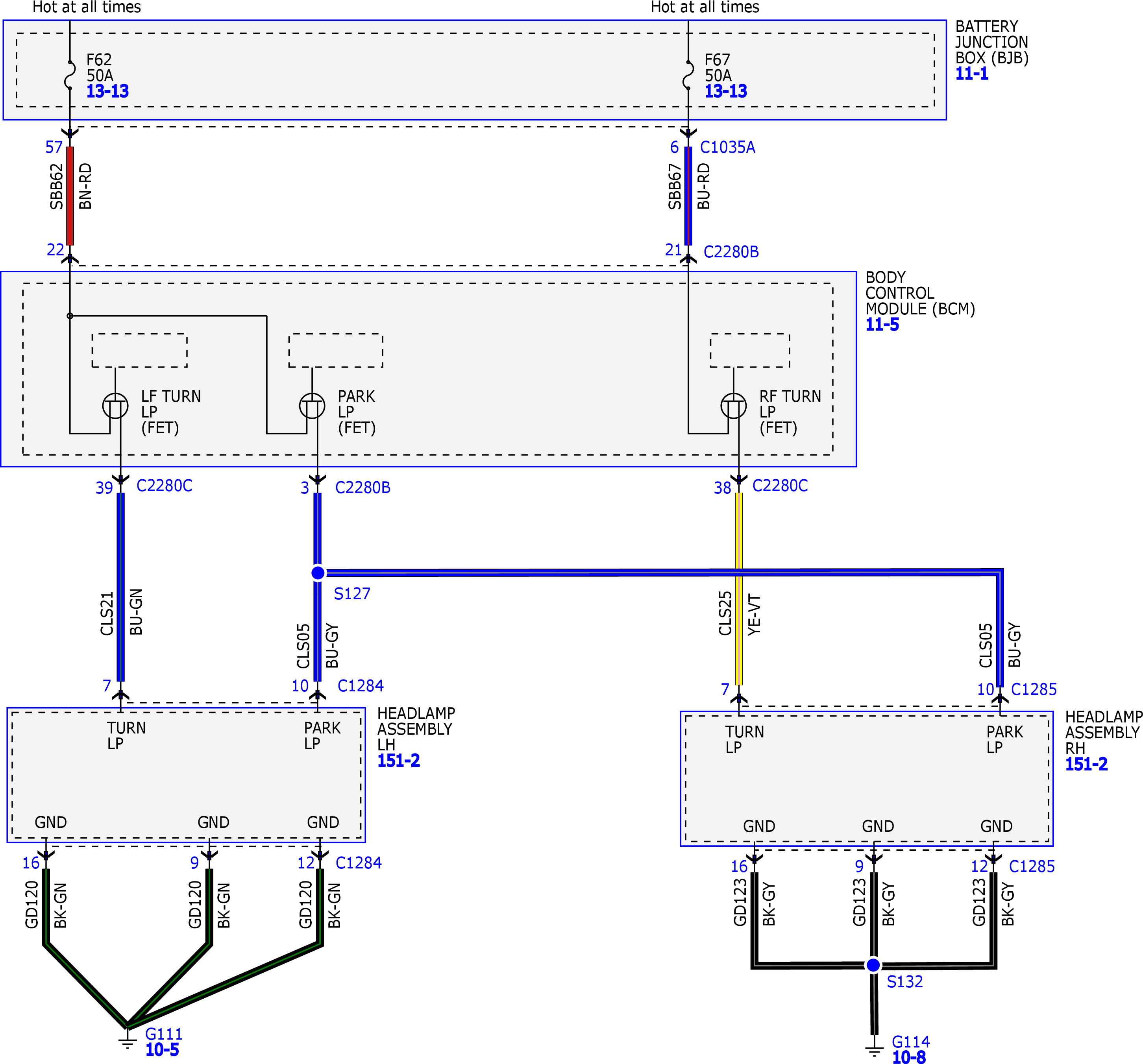

Fig 4: Turn Signal Lamps/Stop Lamps/Hazard Lamps Wiring Diagrams (4 Of 6)

Courtesy of FORD MOTOR COMPANY

Fig 5: Turn Signal Lamps/Stop Lamps/Hazard Lamps Wiring Diagrams (5 Of 6)

Courtesy of FORD MOTOR COMPANY

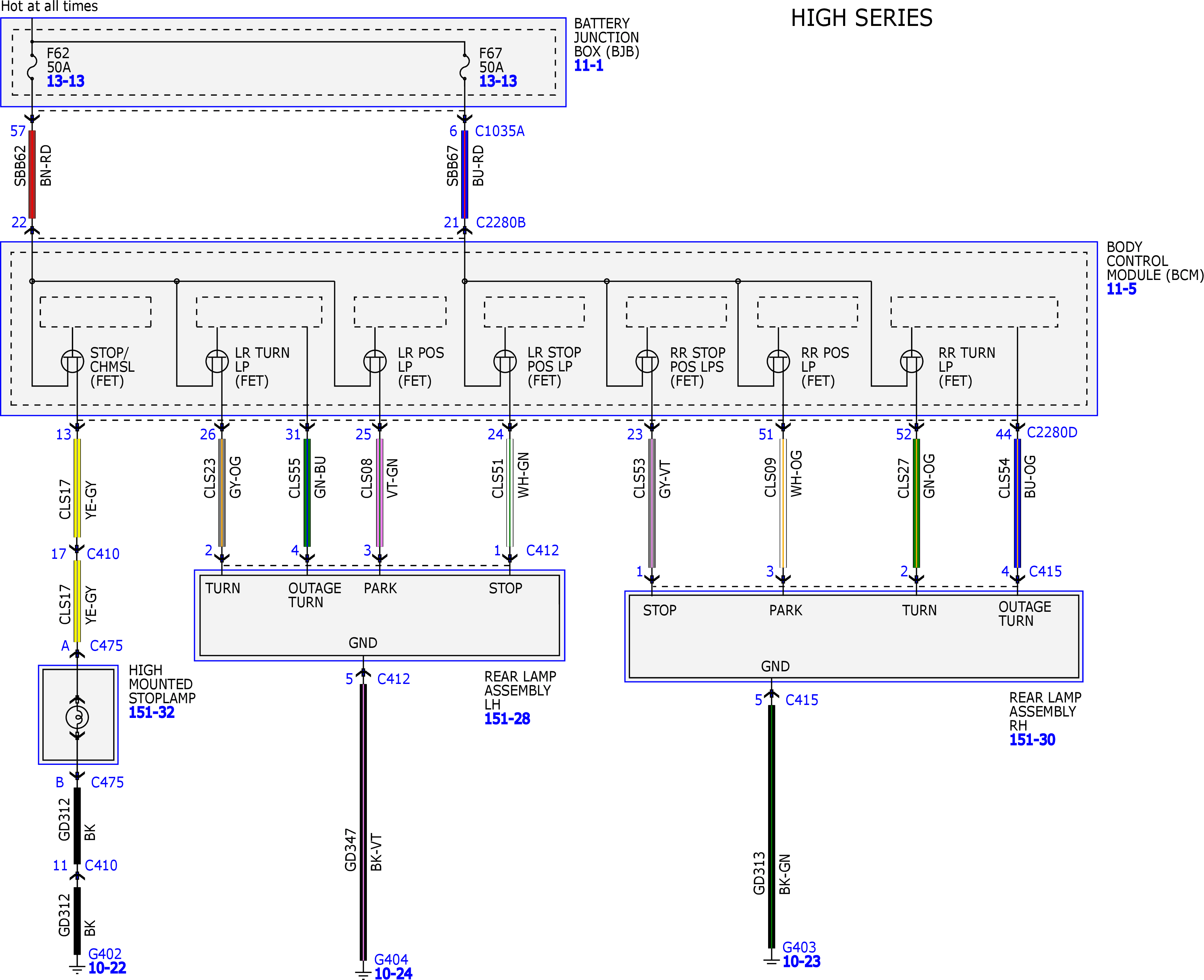

Fig 6: Turn Signal Lamps/Stop Lamps/Hazard Lamps Wiring Diagrams (6 Of 6)

Courtesy of FORD MOTOR COMPANY
