Connector End View (C1607) - FRONT ACTIVE PARK ASSIST SENSOR LH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

LMP06 (VT-GY)

22

CTRL MOD. - PARKING AID # SENSORS FRONT +

2

VMP20 (GY-OG)

22

SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE

3

RMP06 (YE-OG)

22

CTRL MOD. - PARKING AID # SENSORS FRONT -

Available Pigtail Kits

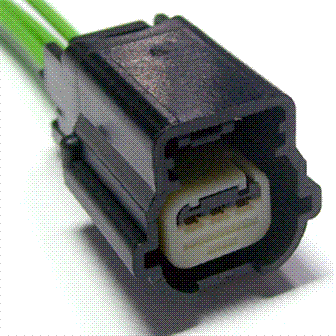

Pigtail Kit Part Number

WPT-1394

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AFB

Gauge:

20

Pin material:

Silver

Cavities:

3

Vehicle Uses

Sensor - Front Park Aid (FPA)

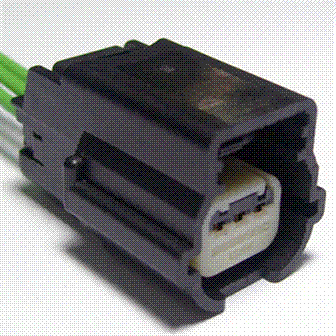

Pigtail Kit Part Number

WPT-1095

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AFA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses

Sensor - Front Park Aid (FPA)
