Connector End View (C1427) - TURBOCHARGER BOOST PRESSURE (TCBP) SENSOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VE805 (GY-OG)

20

SENSOR - TURBOCHARGER BOOST PRESSURE (TCBP)

2

RE407 (YE-VT)

20

CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)

3

LE423 (GN-VT)

20

REFERENCE VOLTAGE (VREF)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1068

Courtesy of FORD MOTOR COMPANY

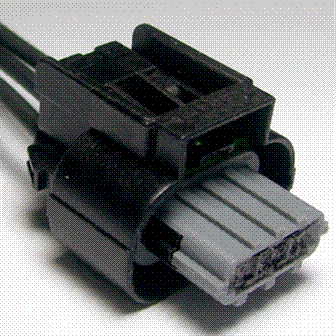

Service Part Number:

AU2Z-14S411-JA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Manifold Absolute Pressure (MAP)

Pigtail Kit Part Number

WPT-1369

Courtesy of FORD MOTOR COMPANY

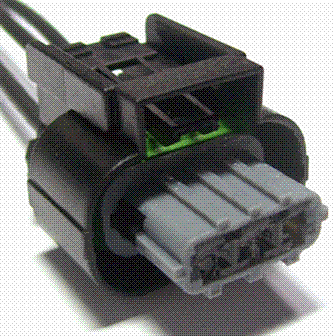

Service Part Number:

AU2Z-14S411-JB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Manifold Absolute Pressure (MAP)

Sensor - Turbo Intake Pressure/Temperature
