Connector End View (C1360) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector: C1360

Description

FUEL RAIL PRESSURE (FRP) SENSOR

Color

Harness

14B485

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE423 (GN-VT)	18	REFERENCE VOLTAGE (VREF)
2	VE727 (BU-BN)	18	FUEL RAIL PRESSURE (FRP)
3	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)

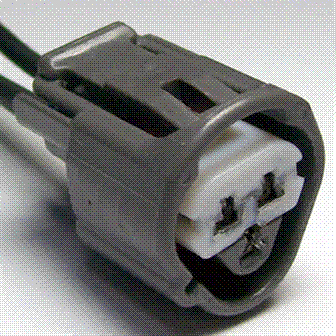

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1281

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-PA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Fuel Rail Pressure
