Connector End View (C1064) - ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Connector: C1064

Description

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE716 (YE)	20	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)
2	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)

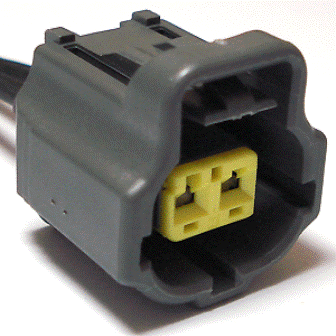

Available Pigtail Kits

Pigtail Kit Part Number

WPT-989

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HYB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Coolant Temperature

Sensor - Cylinder Head Temperature

Sensor - Transmission Oil Temperature
