Connector End View (C523) - FRONT DOOR SPEAKER LH
Connector: C523
Description
FRONT DOOR SPEAKER LH
Color
NA
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
VME07 (WH) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) + |
|
|
2 |
VME08 (GN-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER + |
|
|
3 |
RME08 (GY-OG) |
20 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER - |
|
|
4 |
RME07 (WH-BN) |
18 |
CTRL MOD. - AUDIO # SPEAKER LEFT FRONT DOOR (WOOFER) - |
|

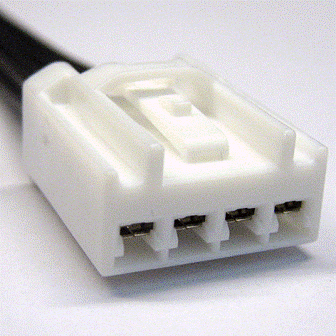

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-912 |
Service Part Number: 8U2Z-14S411-HA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Sensor - Oil Temperature Sensor - Power Steering Pressure Sensor - Purge Flow Switch - Gear Shift Select/Neutral Safety |
