Connector End View (C389) - PASSENGER SAFETY BELT LOAD LIMITING RETRACTOR

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR147 (GN-OG)

22

CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD +

2

RR147 (YE-VT)

22

CTRL MOD. - SEAT BELT SHOULDER ADAPTIVE LOAD LIMITING PASSENGER OUTBOARD -

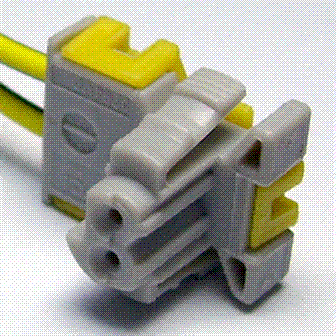

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1223

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BFA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Squib - Airbag (Passenger)
