Connector End View (C4436) - REAR CENTER SPEAKER

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

VME72 (WH)

18

CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 2 +

2

RME72 (BU-GN)

18

CTRL MOD. - AUDIO # SPEAKER SUBWOOFER LEFT REAR 2 -

3

VME73 (WH-BN)

18

CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 +

4

RME73 (VT-OG)

18

CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR 2 -

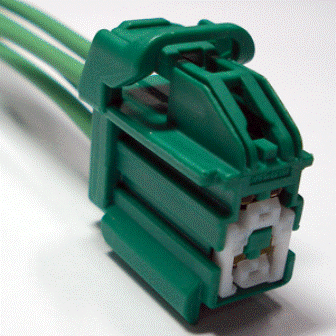

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1016

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FFB

Gauge:

14

Pin material:

Silver

Cavities:

4

Vehicle Uses

Motor - Steering Column Adjust

Speaker - Subwoofer

Transceiver - Passive Anti-Theft (PATS)
