Connector End View (C4330) - FUEL PUMP AND SENDER UNIT
Connector: C4330
Description
FUEL PUMP AND SENDER UNIT
Color
GY
Harness
14A069
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
RMC32 (GN-BU) |
18 |
CTRL MOD. - SENSOR FUEL LEVEL |
|
|
2 |
VMC11 (YE-VT) |
18 |
SENSOR - FUEL LEVEL (FLI) |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
RE515 (WH-BN) |
12 |
FUEL PUMP RETURN (FPRTN) |
|
|
5 |
CE515 (YE-GY) |
12 |
FUEL PUMP POWER (FPPWR) |
|

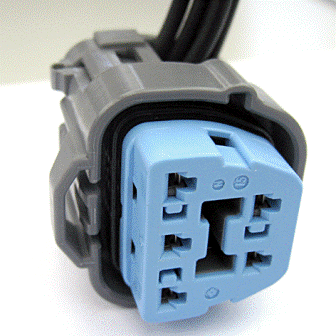

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-909 |
Service Part Number: 8U2Z-14S411-NA Gauge: 14 Pin material: Tin Cavities: 5 Vehicle Uses Control - Engine Air Shutoff Fuel Pump/Sending Unit Resistor - Blower Motor (Front) |
