Connector End View (C3802) - SECOND ROW SAFETY BELT LH

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

CR180 (YE)

20

CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER +

2

RR180 (BN-GN)

20

CTRL MOD. - INFLATABLE SEAT BELT ROW 2 DRIVER -

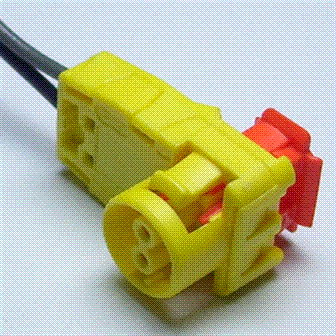

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1227

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BKA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses

Sensor - Side Impact

Squib - Airbag (Driver)

Squib - Airbag (Passenger)
