Connector End View (C3557) - SECOND ROW SAFETY BELT BUCKLE LH
Connector: C3557
Description
SECOND ROW SAFETY BELT BUCKLE LH
Color
Harness
14A699
Base Part #
part# N/A
Service Pigtail
See Below
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CR204 (VT) |
20 |
SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE |
|
|
2 |
GD382 (BK-GY) |
20 |
GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT |
|
Available Pigtail Kits |
|
|

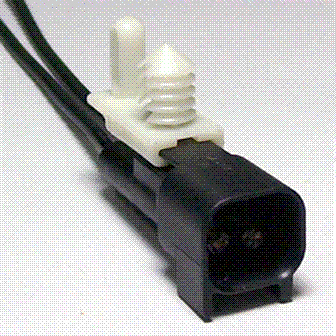

Pigtail Kit Part Number WPT-1186 |
Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Speaker - Tweeter - LH - Front Speaker - Tweeter - LH - Rear Speaker - Tweeter - RH - Front Speaker - Tweeter - RH - Rear Switch - Seatbelt |
